2.5.5 Complex Configuration Example

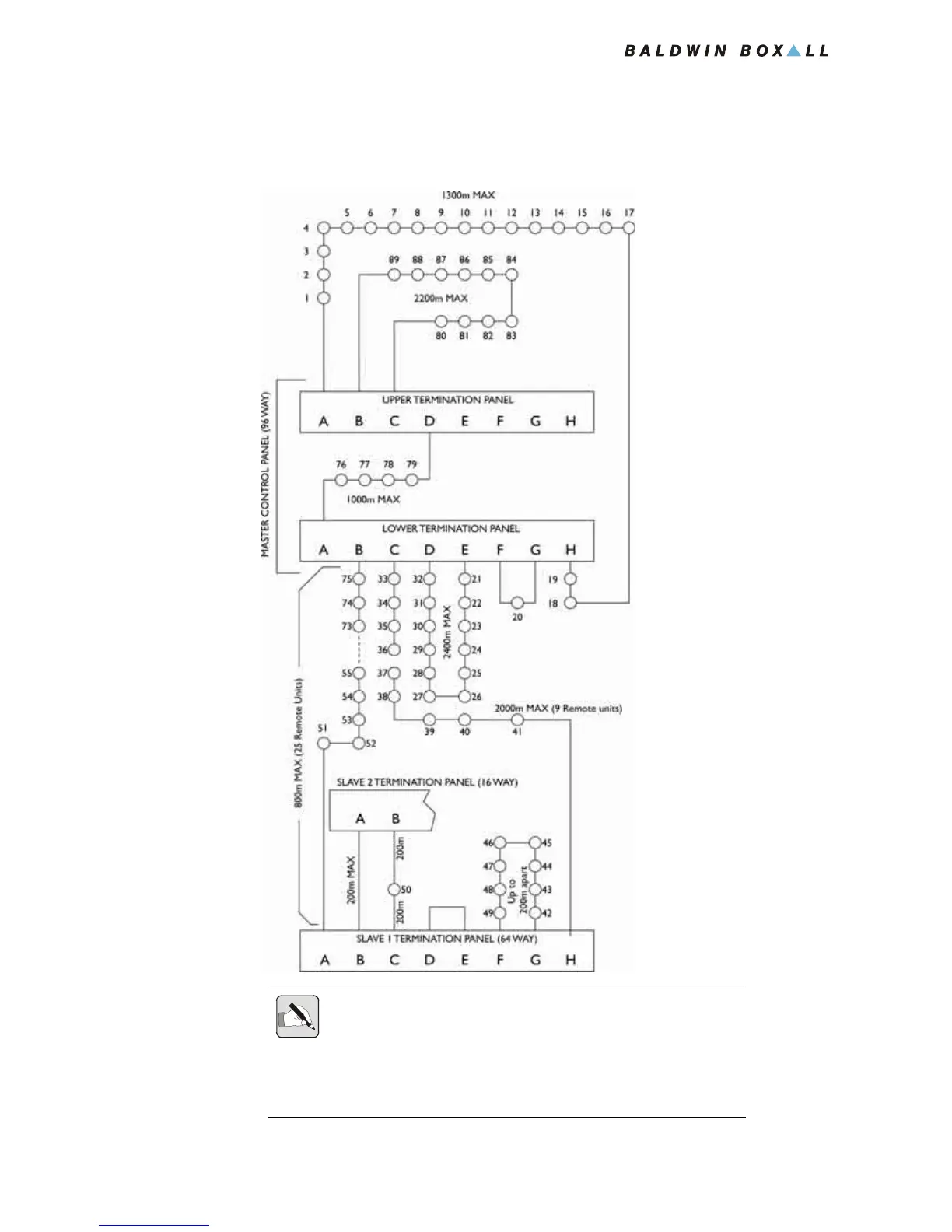

Figure 2.6 — Example Schematic showing Maximum Cable Lengths
NOTE: The distances shown in Figure 2.6 have been calculated for
1.5sqmm conductors and indicate the maximum overall span length
taking into account power loss over long cable runs.
Please contact our Technical Sales team on +44 (0) 1892 664422 for
free advice and assistance with your cabling design and choice of cable.
