1.2.5 Combined Disabled Refuge / Fire Telephone
(BVOCRFC)

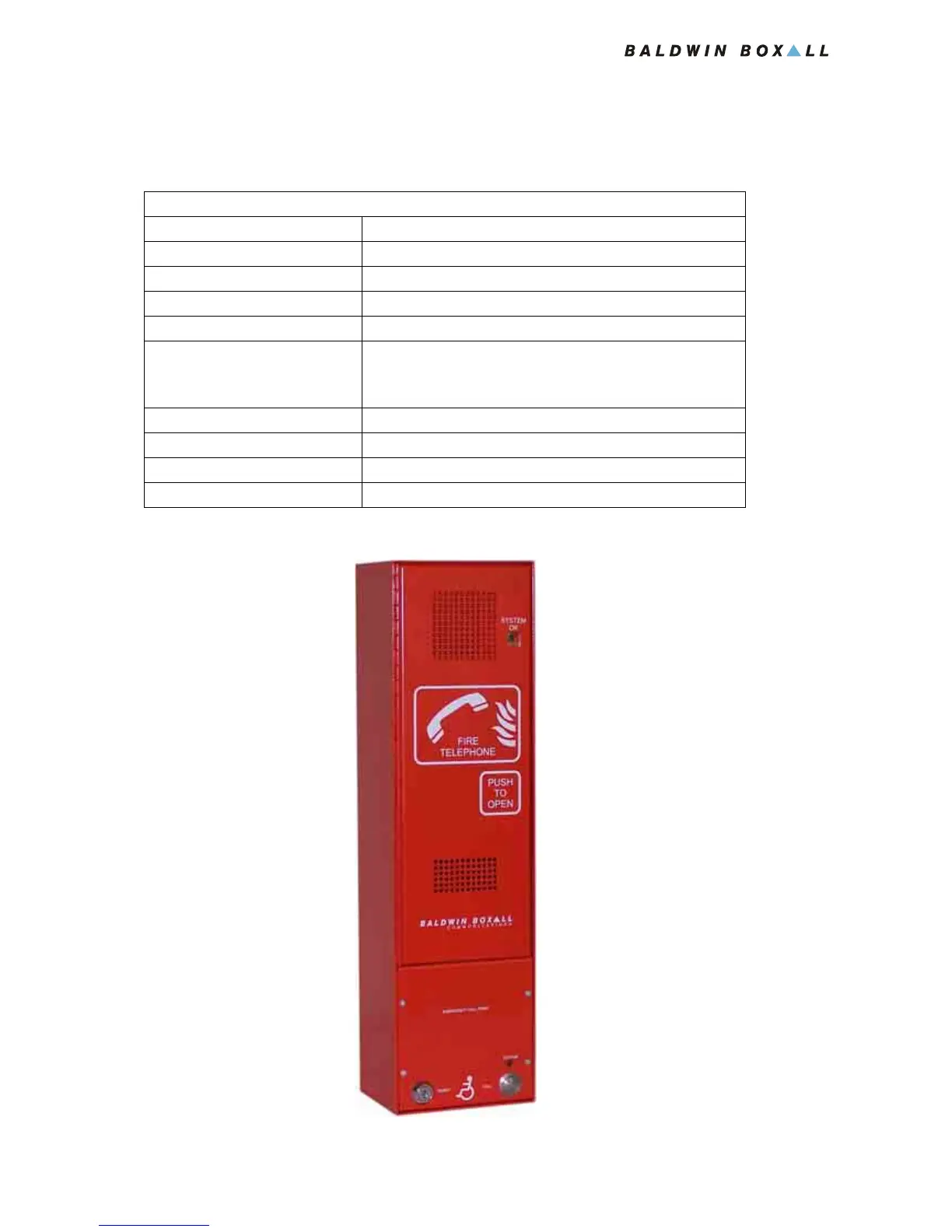

Figure 1.5 — Typical Combined Disabled Refuge / Fire Telephone
Combined Disabled Refuge / Fire Telephone Remote
Indicators Call Status, System OK
Remote Signalling of Occupancy Volt free contact for Above Door lamps etc
Front Panel Controls Call Push Button and reset keyswitch
Power supply 12 - 40V DC
Current consumption 35mA @ 30V typical
Dimensions (W x H x D) Surface Mount: 130mm x 480mm x 100mm
Bezel Dimensions: 170mm x 520mm
Bezel cut out: 138mm x 488mm x 65mm
Knockouts 20mm and 25mm diameter in sides of back box
Weight 4.5 Kg
Temperature Range -10 to + 40°C (storage and operating)
Humidity Range 95% Non Condensing
To Next Page
