2.5.2 Connection Details - up to 32 Remotes
The following example shows how to connect up to 32 Remote
Units to two Zone Cards.

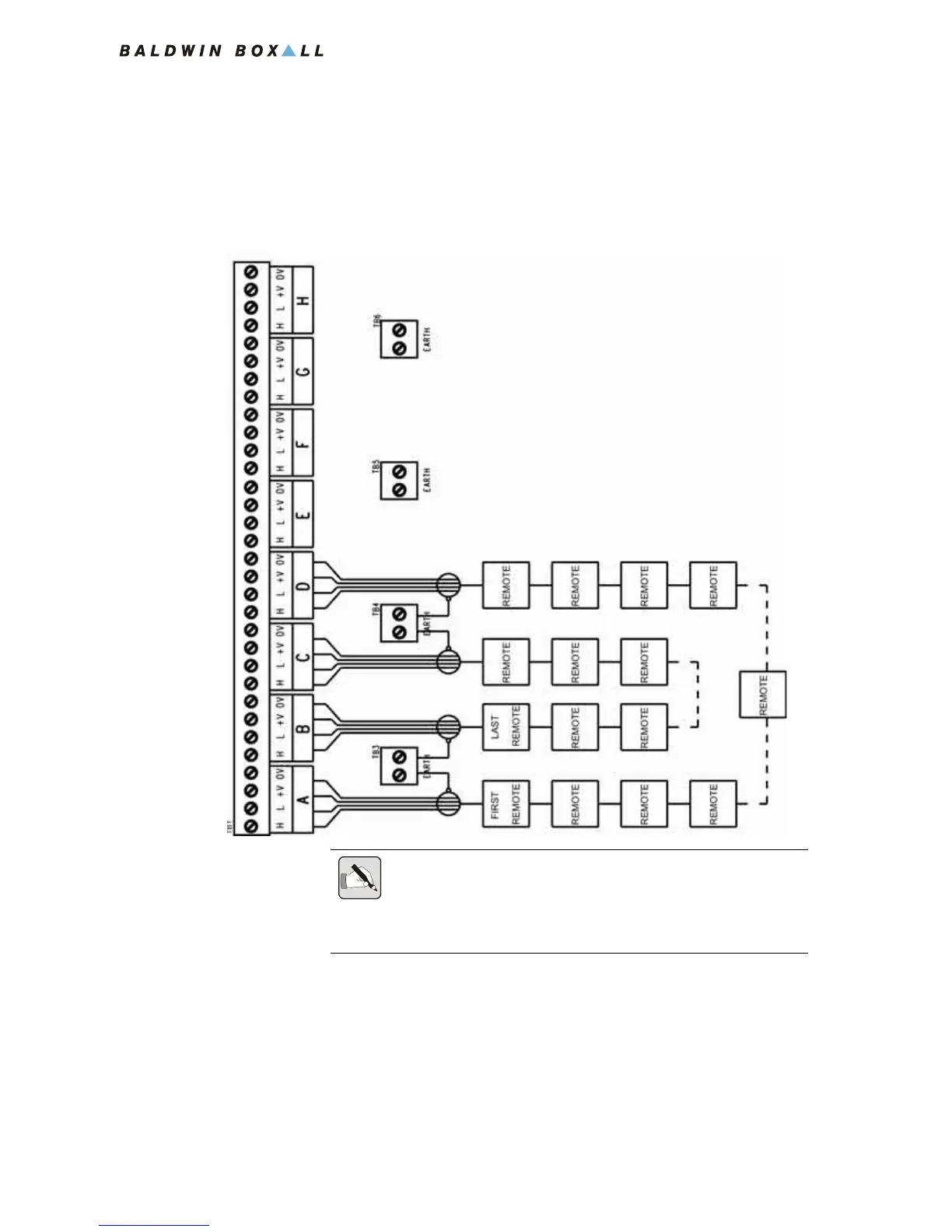

Figure 2.3 — Typical Connections - Up to 32 Remotes
NOTE: The Control Panel Termination details shown in Figure 2.2 and
Figure 2.3 are correct for 64 and 128 zone panels.
32 zone control panels include the Earth connections in the main
terminal block and not on seperate terminals as shown.
