C O M M U N I C A T I O N S

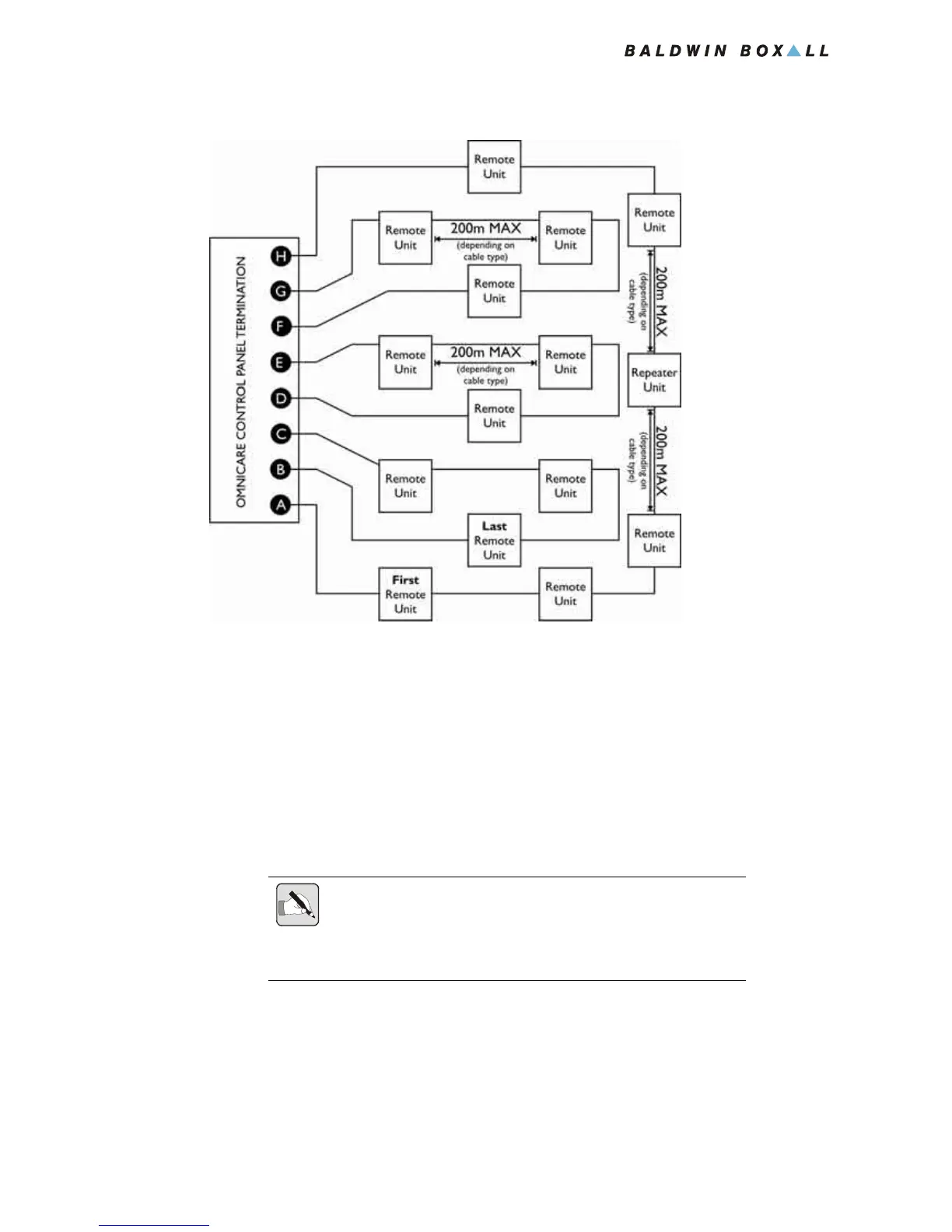

Figure 2.1 — Schematic showing Maximum cable lengths
Where a greater cable length is required a repeater unit
(BVFREPEM) can be installed to extend the cabling a further
200m.
2.2 USING SLAVE CONTROL PANELS
If required, Slave Control Panels can be added to enable the
system to be operated from multiple locations.
NOTE: Slave Control Panels can be configured to communicate with any
Remote Units on the system (in groups of upto 16 per Zone Card),
however there must be a Master Panel that includes buttons for every
Remote Unit.
