OmniCare EVC System
Installation & Commissioning Manual
OmniCare issue 1
45
C
O
M
M
U
N
I
C
A
T
I
O
N
S

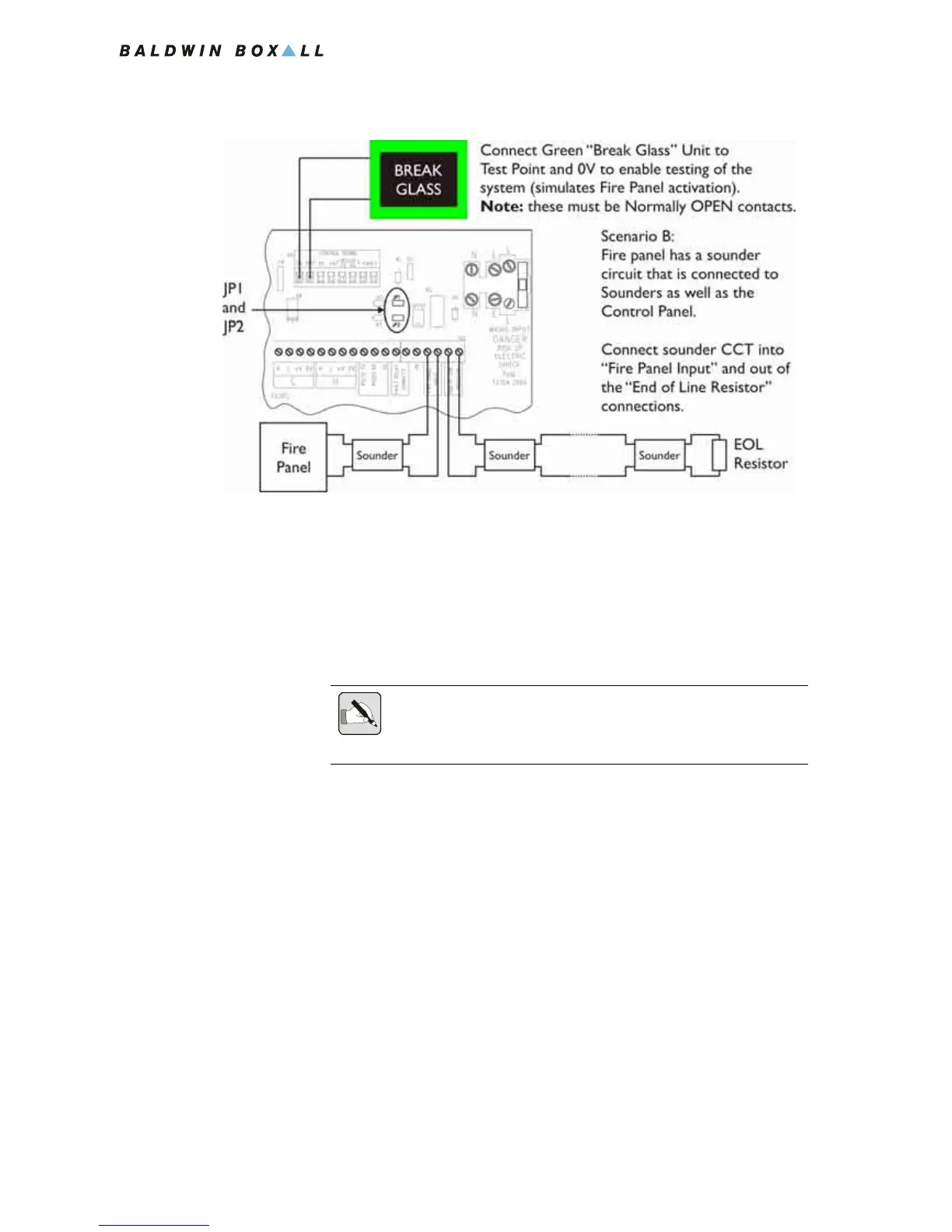

Figure 3.21 — Sounder Circuit includes Control Panel and Sounders
To ensure correct operation of the Fire Panel interface both JP1
and JP2 must be fitted.
If the fire panel connections (or the Test connections to the Break
Glass Unit) are not in place the System will Commission correctly
but the Control Panel will not allow communication with
Remote Units.
NOTE: To allow the Control Panel to communicate with Remote Units
without the Fire Panel connection, link the "Test" and "0V"
connections instead of fitting the Break Glass unit.
To Next Page
