OmniCare EVC System
Installation & Commissioning Manual
76 OmniCare issue 1
C
O
M
M
U
N
I
C
A
T
I
O
N
S

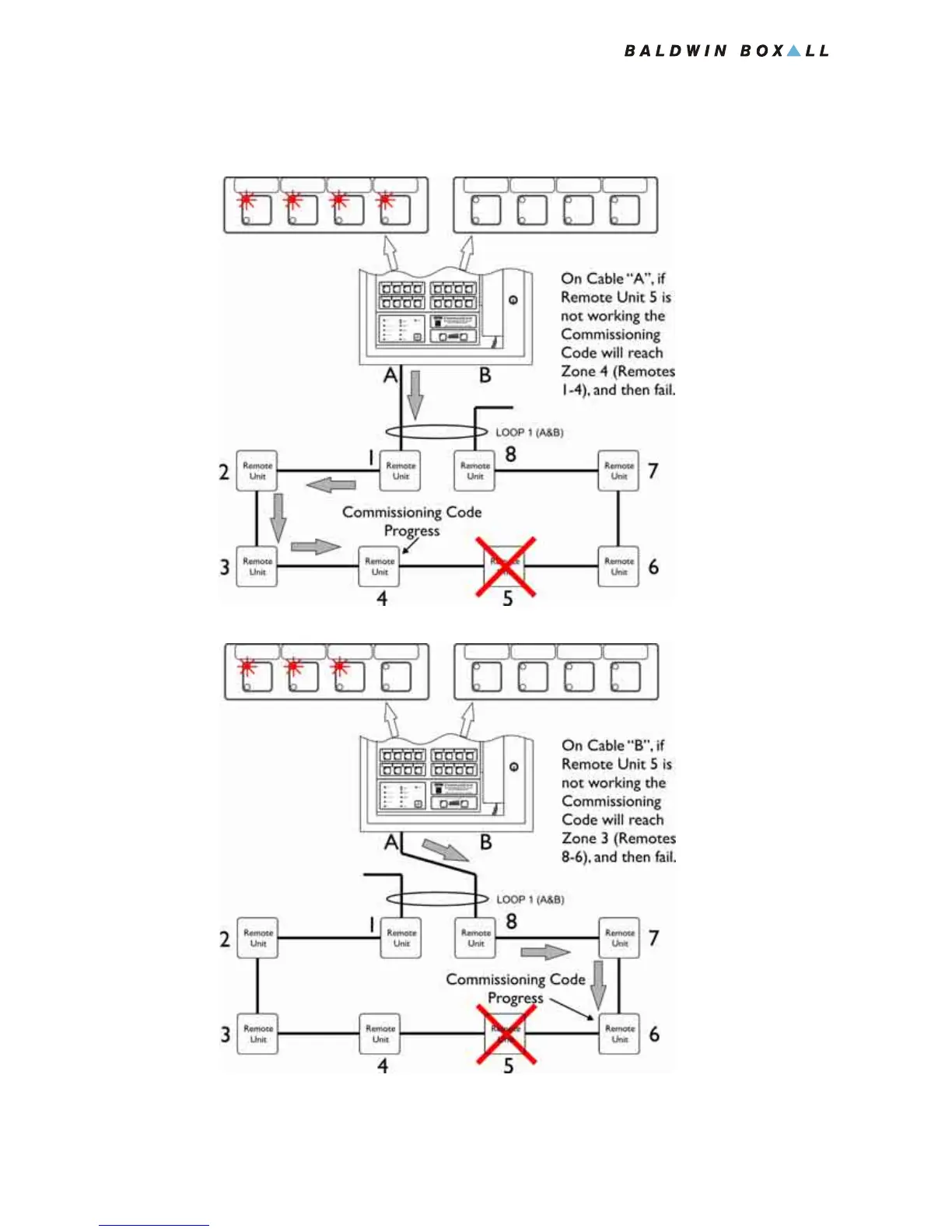

6.2.4.1 Illustration of a Single Remote Unit not Responding
Figure 6.4 — Commissioning Open Ended loop on “A” cable
Figure 6.5 — Commissioning Open Ended loop on “B” cable
Examining the SYSTEM OK indicator on the Remote Unit in
question will provide guidance to the nature of the fault.
