20 english
8

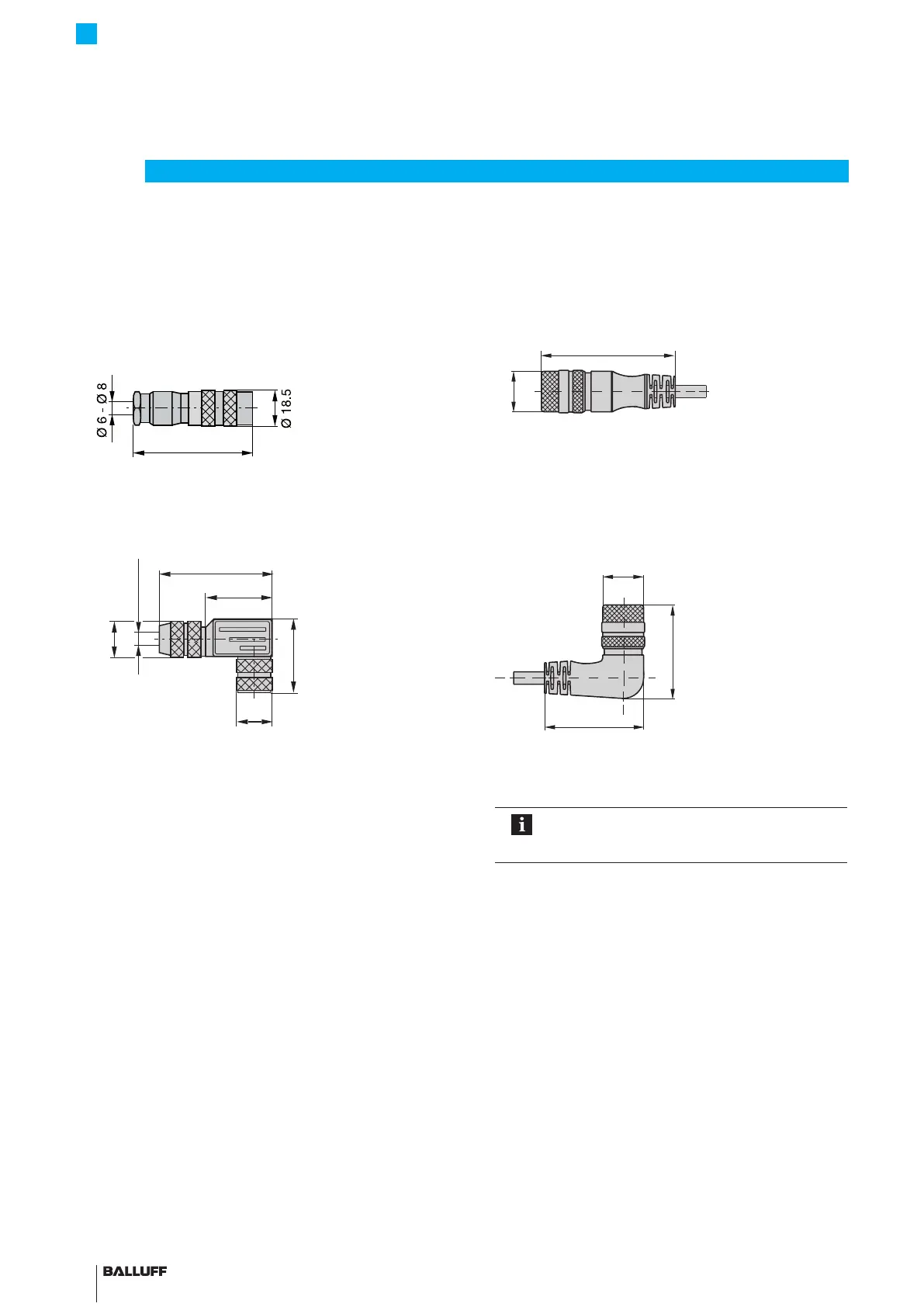

Accessories (continued)
8.4 Connectors and cables
8.4.1 BKS-S32/S33M-00, freely configurable
BKS-S32M-00
Straight connector, freely configurable
M16 per IEC130-9, 8-pin
Fig. 8-10:
~ 62
Connector BKS-S32M-00
BKS-S33M-00
Angled connector, freely configurable
M16 per IEC130-9, 8-pin
Fig. 8-11:
Ø 18
31
37.2
Ø 20
Ø 6 - Ø 8
~ 54
Connector BKS-S33M-00
8.4.2 BKS-S232/S233-PU-_ _, preassembled
BKS-S232-PU-_ _
Straight connector, molded, preassembled
M16, 8-pin
Various cable lengths can be ordered,
e.g.BKS-S232-PU-05: Cable length 5m
Fig. 8-12:
Ø 20
66
Connector BKS-S232-PU-_ _
BKS-S233-PU-_ _
Angled connector, molded, preassembled
M16, 8-pin
Various cable lengths can be ordered,
e.g.BKS-S233-PU-05: Cable length 5m
Fig. 8-13:
Ø 20
46
48.5
Connector BKS-S233-PU-_ _
The outlet direction and the pin assignment for
the BKS-S233-PU-_ _ is the same as that for
BKS-S116-PU-_ _ (see Fig. 8-16 or Tab. 8-1).
BTL7-P511 -M ____ -P-S32/S115/KA_ _
Micropulse Transducer in a Profile Housing
