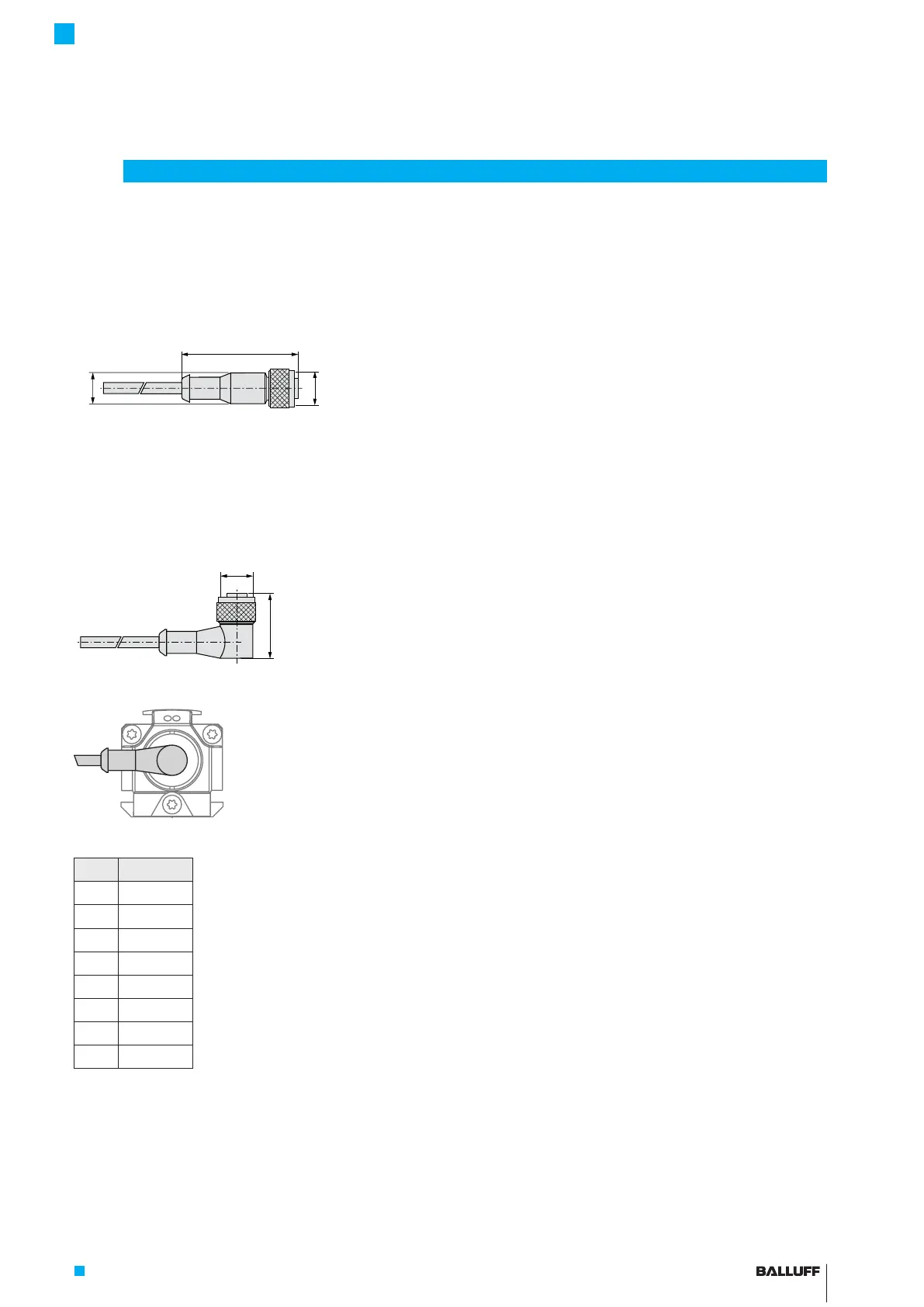

8.4.3 BKS-S115/S116-PU-_ _, preassembled
BKS-S115-PU-_ _
Straight connector, molded-on cable, preassembled
M12, 8-pin
Various cable lengths can be ordered,
e.g.BKS-S115-PU-05: Cable length 5m
Fig. 8-14:
43
Ø 13.5
M12x1
Connector type BKS-S115-PU-_ _
BKS-S116-PU-_ _
Angled connector, molded-on cable, preassembled
M12, 8-pin
Various cable lengths can be ordered,
e.g.BKS-S116-PU-05: Cable length 5m
Fig. 8-15:
28
M12x1
Connector BKS-S116-PU_ _
Fig. 8-16:
Connector BKS-S116-PU_ _, outlet
Pin Color
1 YE yellow
2 GY gray
3 PK pink
4 RD red
5 GN green
6 BU blue
7 BN brown
8 WH white
Tab. 8-1: BKS-S115/116-PU-_ _ pin assignment
