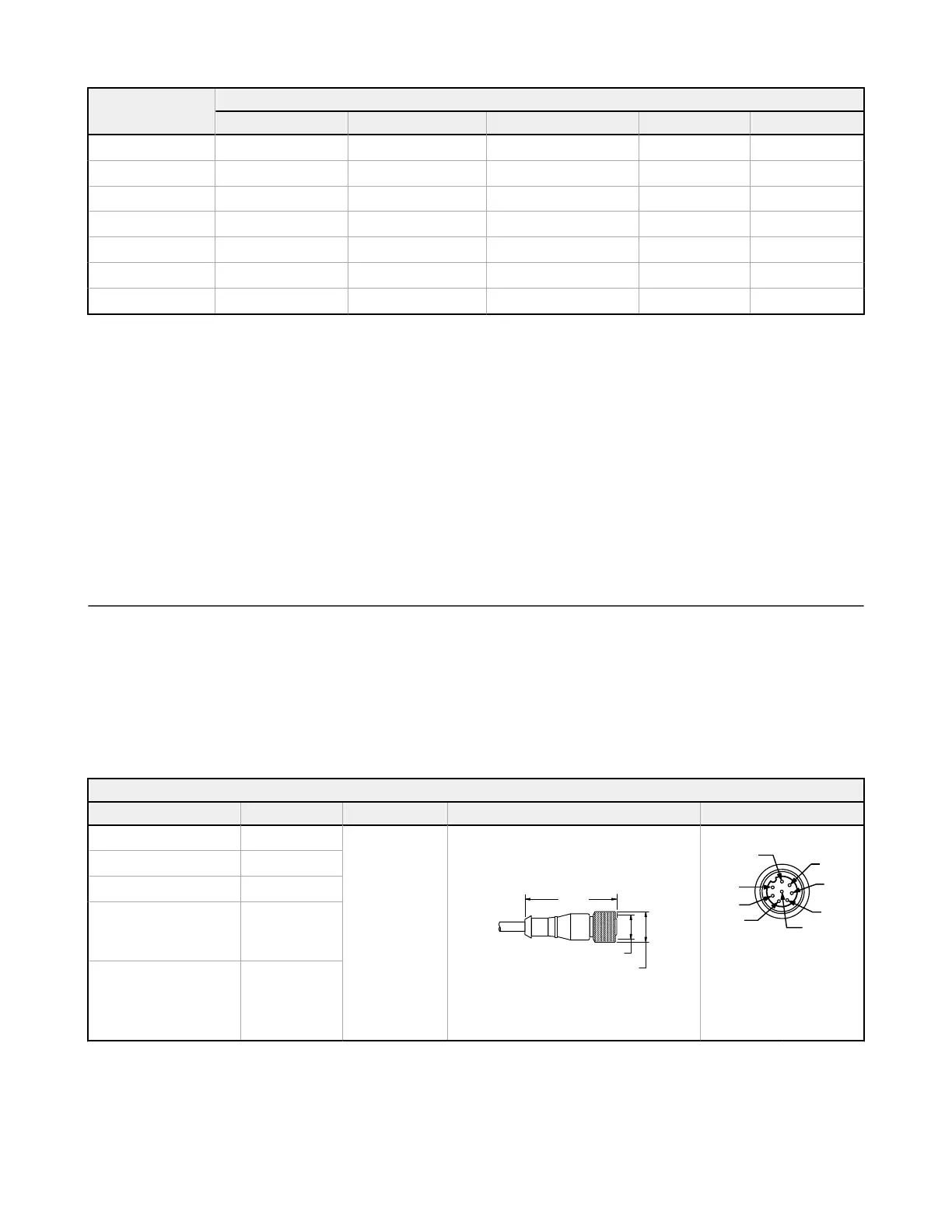

Banner EZ-SCREEN - Cordsets; Single-Ended (Machine Interface) Cordsets (One Cable for each Emitter and Receiver)

Defined Area Height
Standard 30 mm Resolution Models 0.1 m to 18 m (4 in to 60 ft) range
Emitter (8-pin) Receiver Emitter/Receiver Pair Number of Beams Response Time (Tr)
1500 mm (59 in) SLSE30-1500Q8 SLSR30-1500Q8 SLSP30-1500Q88 100 27 ms
1650 mm (65 in) SLSE30-1650Q8 SLSR30-1650Q8 SLSP30-1650Q88 110 30 ms
1800 mm (70.9 in) SLSE30-1800Q8 SLSR30-1800Q8 SLSP30-1800Q88 120 32 ms
1950 mm (76.8 in) SLSE30-1950Q8 SLSR30-1950Q8 SLSP30-1950Q88 130 34 ms
2100 mm (82.7 in) SLSE30-2100Q8 SLSR30-2100Q8 SLSP30-2100Q88 140 36 ms
2250 mm (88.6 in ) SLSE30-2250Q8 SLSR30-2250Q8 SLSP30-2250Q88 150 38 ms
2400 mm (94.5 in) SLSE30-2400Q8 SLSR30-2400Q8 SLSP30-2400Q88 160 40 ms
To order the 5-pin emitters with the Test input, replace the suffix “Q8” with “Q5”, (e.g., SLSE30-150Q5), and for the pair
replace “Q88” with “Q85” (e.g., SLSP30-150Q85).
To order the pigtail QD (8-pin only) model, replace the “Q” in the model number with “P” (e.g., SLSE30-150P8).
To order the ESD-safe models, add “N” to the model number, prior to the QD option designation (e.g., SLSE30-150NQ8).
ESD-safe models are not available with the pigtail QD option.
To order optional housing finishes, add these letters in front of the QD designation in the model number,
• add “A” for a clear (brushed) anodized aluminum finish, black endcaps (e.g., SLSE30-150AQ8),
• add “S” for a nickel-plated (“silver”) finish, black endcaps (e.g., SLSE30-150SQ8),
• add “B” for a black painted finish, black endcaps (e.g., SLSE30-150BQ8),
• add “W” for a white painted finish, black endcaps (e.g., SLSE30-150WQ8), or
• add “SO” for a “safety orange” painted finish, black endcaps (e.g., SLSE30-150SOQ8).
4.4 Cordsets
Machine interface cordsets provide power to the first emitter/receiver pair. Sensor interconnect cables provide power to
subsequent emitters and receivers in the cascade.
4.4.1 Single-Ended (Machine Interface) Cordsets (One Cable for Each
Emitter and Receiver)
Overmold and cordsets are PVC-jacketed. Cordsets are unterminated on one end to interface with the guarded machine.
For 8-pin Emitters and Receivers
8-Pin Threaded M12/Euro-Style Cordsets
Model Length Style Dimensions Pinout (Female)
QDE-815D 4.57 m (15 ft)
Straight
44 Typ.
ø 14.5
M12 x 1
5
4
3
2
8
1
7
6
QDE-825D 7.62 m (25 ft)
QDE-850D 15.2 m (50 ft)
QDE-875D 22.9 m (75 ft)
QDE-8100D 30.5 m (100 ft)
1 = Brown
2 = Or/Bl
3 = Orange
4 = White
5 = Black
6 = Blue
7 = Gn/Ye
8 = Violet
EZ-SCREEN
®
14/30 mm Safety Light Screen
