6.3.2 Resetting the Receiver
The EZ-SCREEN receiver has a Reset input, pin 8 (Violet wire), that allows the System to be manually reset.
The EZ-SCREEN requires a manual reset to clear a Latch condition and resume operation following a stop command.
Internal Lockout conditions also require a manual reset to return the System to Run mode after the failure has been
corrected and the input correctly cycled.
Receiver manual resets are required in the following situations:
• Trip Output operation—only after a System Lockout
• Latch Output operation—at power-up, after each Latch condition occurs, and after a System Lockout
To reset the receiver:
1. Close the reset switch for 1/4 to 2 seconds. (If the reset switch model MGA-KS0-1 is used, turn the key 1/4 turn
clockwise to close.)
2. Open the switch. (If the reset switch model MGA-KS0-1 is used, turn the key counterclockwise, back to its original
position, to open.)
Important: Closing the reset switch too long causes the System to ignore the reset request. The switch
must be closed from 1/4 second to 2 seconds, but no longer.
6.3.3 Emitter Resets
In the rare occurrence that an emitter requires a reset, power the sensor down, then power it up. Emitter resets are needed
only if a Lockout occurs.
6.4 Status Indicators
Status indicators on both the emitter and receiver are clearly visible on each sensor’s front panel.
Emitter:
Key Description
A
Status Indicator (Red/Green)—shows whether power is applied, and whether
the emitter is in Run mode, TEST mode, or Lockout condition.
B 1-digit Diagnostic Display—indicates specific error or configuration conditions.
A
B

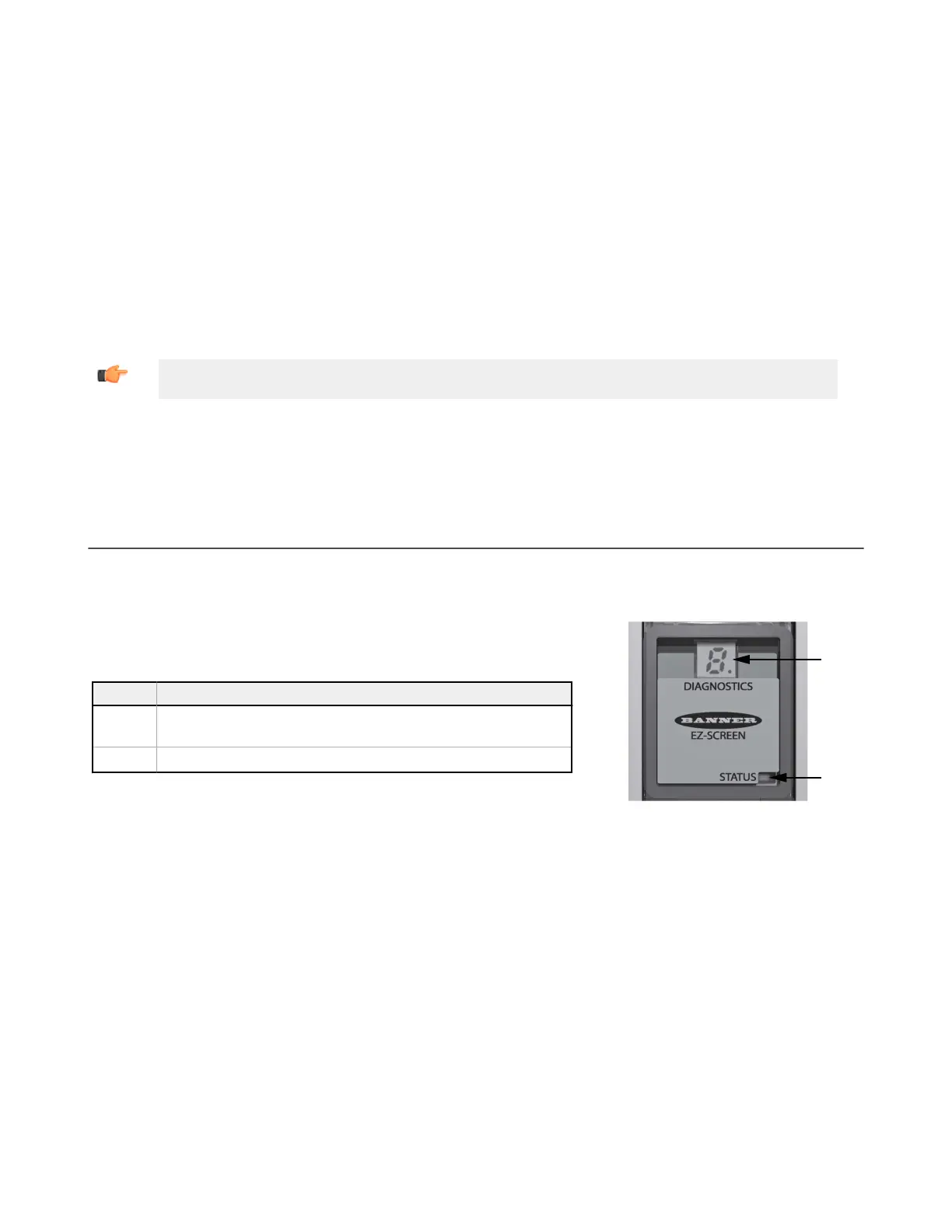

Figure 25. Emitter
