5.14 Wiring Diagrams

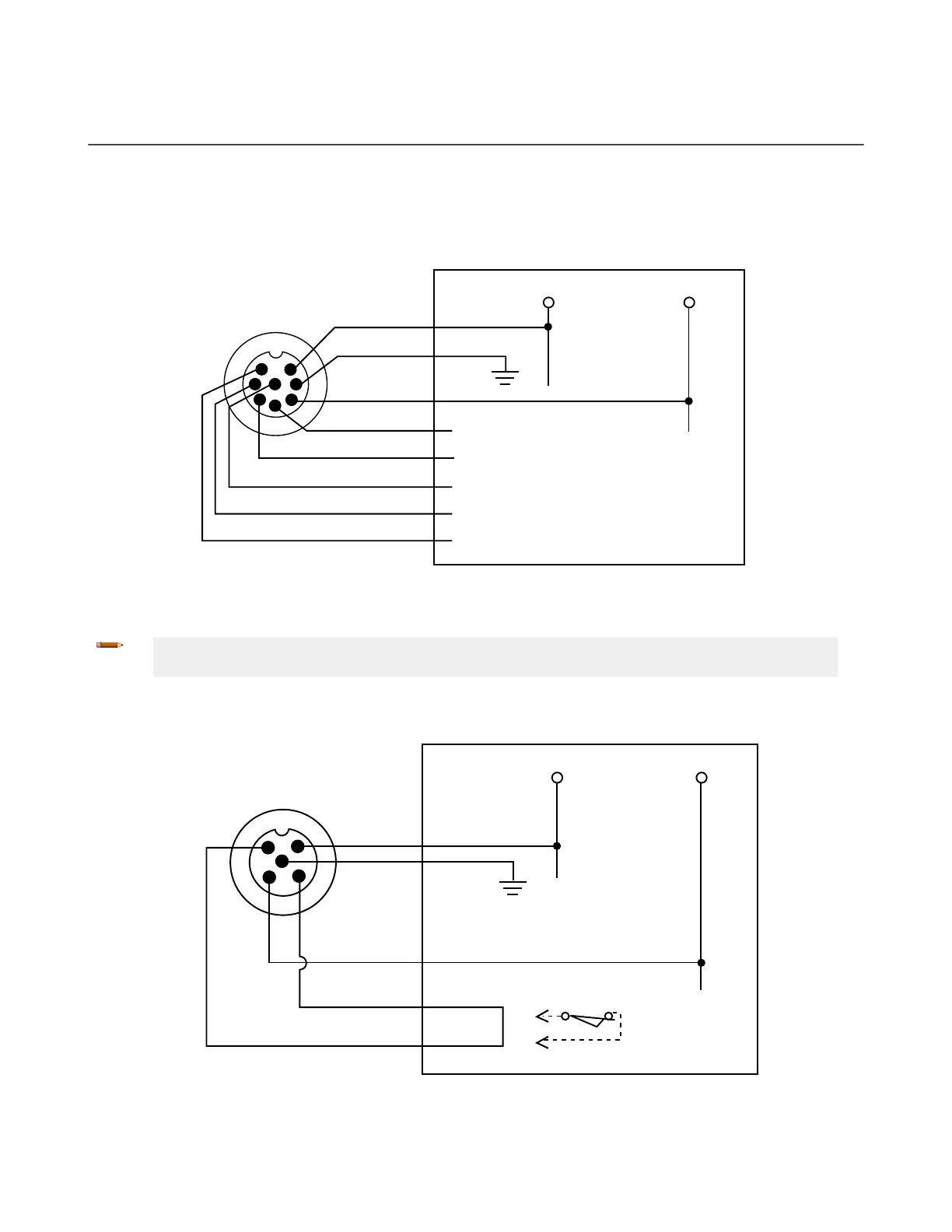

5.14.1 Generic Emitter Wiring Diagram
Emitter (Standard)
8-pin male M12
+24 V dc 0 V dc
1 - brown
7 - green/yellow
6 - blue
5 - black
4 - white
8 - violet
3 - orange
2 - orange/black
nc
nc
nc
nc
nc
Figure 18. Emitter (Standard)—Generic Wiring
Note: *Pins 2, 3, 4, 5, and 8 are not connected or are connected in parallel to the same color wire from the
receiver cable.
Emitter (with Test)
5-pin male M12
+24 V dc
0 V dc
1 - brown
5 - green/
yellow
3 - blue
4 - black
2 - white
Jumper or open to test
Figure 19. Emitter (with Test)—Generic Wiring
