8.4 Determining Interconnect Cable Lengths
The following cable length charts are possible combinations for each side of example cascaded systems. All cables are
assumed to be 22 awg wire. Other lengths and combinations are possible; please call factory for assistance.
As the machine interface cable lengthens, the voltage drop increases, which results in shorter possible interconnect cables
to maintain supply voltage requirements at the cascaded sensor. See
Components
on page 12 for a list of cordsets.

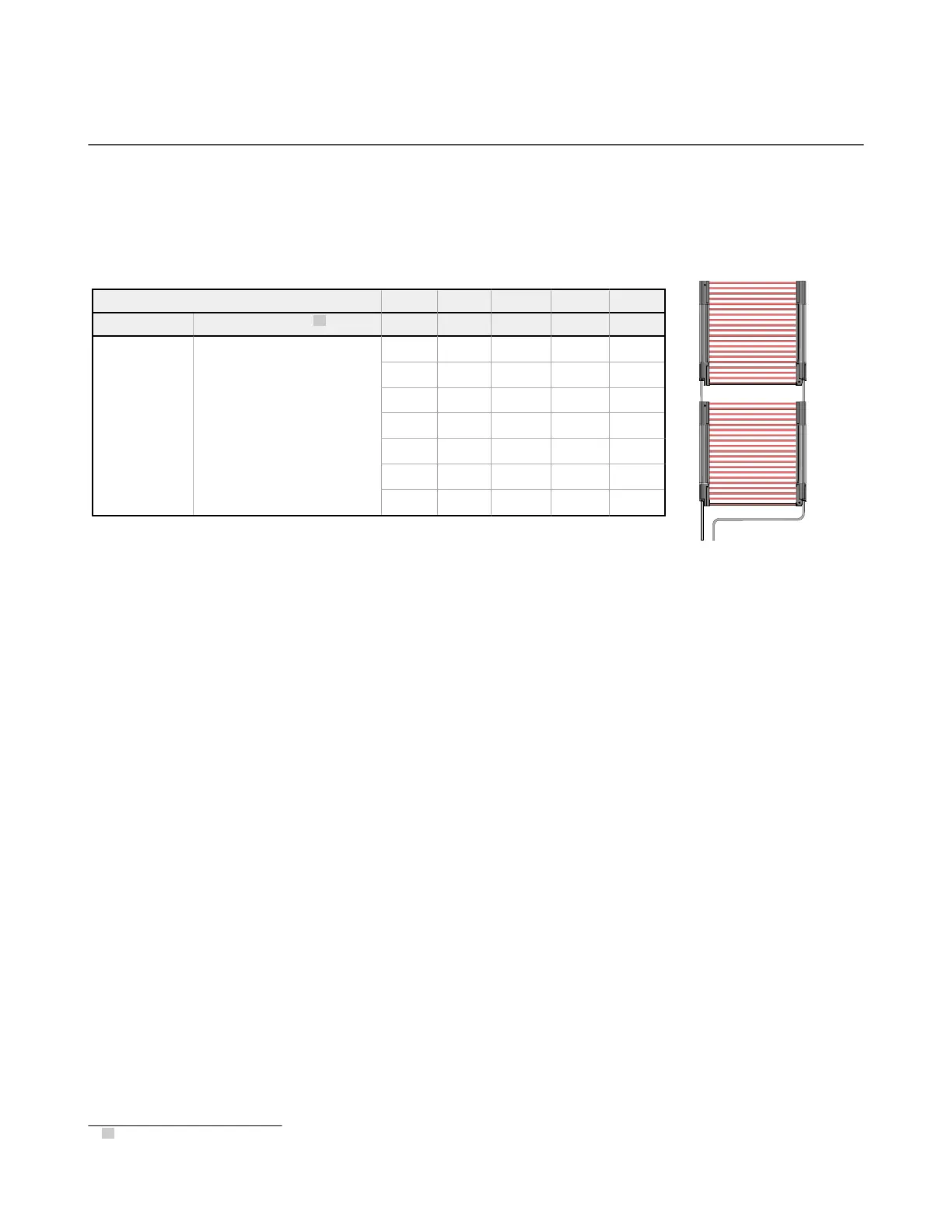

Table 4: Cable length options for two cascaded light screens
Recommended cable pairing per side of cascaded system
Machine Interface Cable (L1) QDE-..D 1 ft 3 ft 15 ft 25 ft 50 ft
Maximum L2
13
200 ft 200 ft 175 ft 135 ft 50 ft
Sensor
Interconnect
Cable Lengths
(L2)
Individual DEE2R-..D cables (ft)
100 100 100 100
75 75 75 75
50 50 50 50 50
25 25 25 25 25
15 15 15 15 15
3 3 3 3 3
1 1 1 1 1
Emitters
Machine
Control
Receivers
L2
L1
EZ-SCREEN
Position #2
EZ-SCREEN
Position #1
Example 1:
Machine Interface Cable (L1): 15 ft
Sensor Interconnect Cable (L2): 175 ft (Using one 100 ft and one 75 ft DEE2R cables) or 100 ft or shorter using single
cables
Example 2:
Machine Interface Cable (L1): 50 ft
Sensor Interconnect Cable (L2): 50 ft or shorter
13
Multiple DEE2R-..D cables may be required.
EZ-SCREEN
®
14/30 mm Safety Light Screen
www.bannerengineering.com - Tel: + 1 888 373 6767 65
