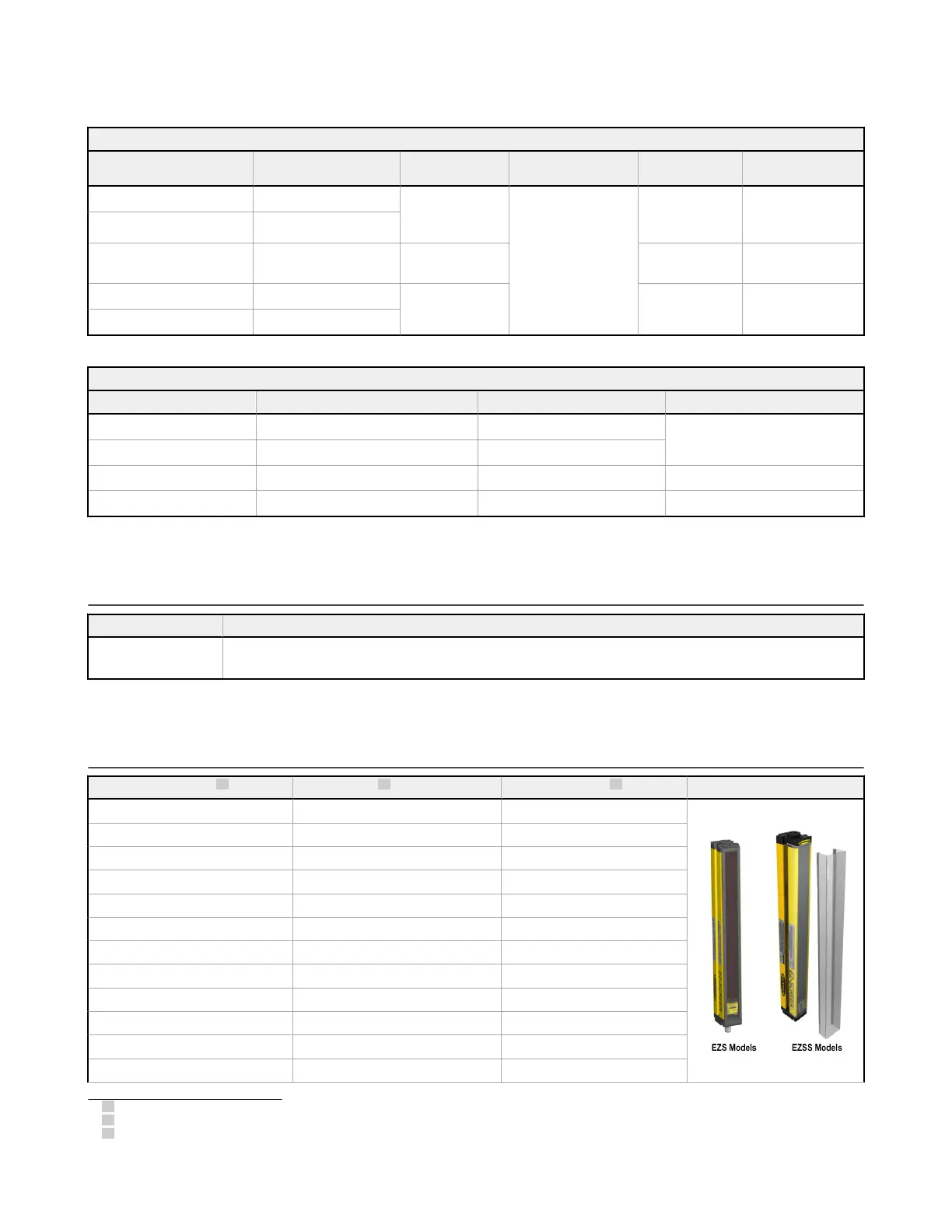

Banner EZ-SCREEN - Remote Reset Switch

Models are available with external device monitoring (EDM); key reset switch on EZAC-R.. models (Emitter/Receiver
models). See datasheet p/n 120321 for more information.
Emitter/Receiver Boxes
Model Outputs EDM
Emitter/Receiver
Connection
AC Power
Connection
Output and EDM
Connections
EZAC-R9-QE8 3 N.O. Selectable
1- or 2-Channel or
no EDM
8-Pin M12
Euro-style QD
Hard-wired Hard-wired
EZAC-R11-QE8 2 N.O., 1 N.C.
EZAC-R15A-QE8-QS83
1 N.O. + 1 SPDT
(Form C)
1-Channel
3-pin
Mini-style QD
8-pin
Mini-style QD
EZAC-R8N-QE8-QS53 1 N.O., 1 N.C.
Power Monitoring
3-pin
Mini-style QD
5-pin
Mini-style QD
EZAC-R10N-QE8-QS53 2 N.O.
Emitter-Only Boxes
Model For Emitter Models Emitter Connection AC Power Connection
EZAC-E-QE8 SLPE..-..Q8 (without Test input) 8-Pin M12 Euro-style QD
Hard-wired
EZAC-E-QE5 SLSE..-..Q5 (with Test input) 5-Pin M12 Euro-style QD
EZAC-E-QE8-QS3 SLPE..-..Q8 (without Test input) 8-Pin M12 Euro-style QD 3-Pin Mini-style QD
EZAC-E-QE5-QS5 SLSE..-..Q5 (with Test input) 5-Pin M12 Euro-style QD 5-Pin Mini-style QD
12.6 Remote Reset Switch
Model Description
EZA-RR-1
External normally open reset switch with 8-pin M12/Euro-style quick disconnect fitting; can be interconnected using cordset
models QDE-8..D, DEE2R-8..D, or CSB-..M1281.
12.7 Lens Shields
Adhesive-Backed Model
21
Snap-On Model
22
Sensor Defined Area
23
EZS-150 EZSS-150 150 mm (5.9 in)
EZS-300 EZSS-300 300 mm (11.8 in)
EZS-450 EZSS-450 450 mm (17.7 in)
EZS-600 EZSS-600 600 mm (23.6 in)
EZS-750 EZSS-750 750 mm (29.5 in)
EZS-900 EZSS-900 900 mm (35.4 in)
EZS-1050 EZSS-1050 1050 mm (41.3 in)
EZS-1200 EZSS-1200 1200 mm (47.2 in)
EZS-1350 EZSS-1350 1350 mm (53.1 in)
EZS-1500 EZSS-1500 1500 mm (59.1 in)
EZS-1650 EZSS-1650 1650 mm (65.0 in)
EZS-1800 EZSS-1800 1800 mm (70.9 in)
21
Polycarbonate shield guards against weld splatter and weld flash with an adhesive-backed neoprene gasket (see data sheet p/n 61960).
22
Copolyester shield provides heavy-duty, impact-resistant protection from many types of cutting fluids (see data sheet p/n 127944).
23
Contact Banner Engineering for lens shield availability for longer sensor lengths.
EZ-SCREEN
®
14/30 mm Safety Light Screen
www.bannerengineering.com - Tel: + 1 888 373 6767 89
