Banner EZ-SCREEN - Double-Ended (Sensor Interconnect) Cordsets

For 8-pin Emitters and Receivers
8-pin Systems require two 8-pin QD cables. Only pins 1, 6, and 7 are connected on 8-pin emitters. The European M12 Specification pin assignment and
color codes are listed as a customer courtesy. The user must verify suitability of these cables for each application.
Banner Cable Pinout/Color Code European M12 Specification
Pin Color Function Pin Color Function
1 Brown + 24 V dc 1 White + 24 V dc
2 Orange/Black EDM #2 (Aux) 2 Brown EDM #2 (Aux)
3 Orange EDM #1 3 Green EDM #1
4 White OSSD #2 4 Yellow OSSD #2
5 Black OSSD #1 5 Gray OSSD #1
6 Blue 0 V dc 6 Pink 0 V dc
7 Green/Yellow Gnd/Chassis 7 Blue Ground/Chassis
8 Violet Reset 8 Red Reset

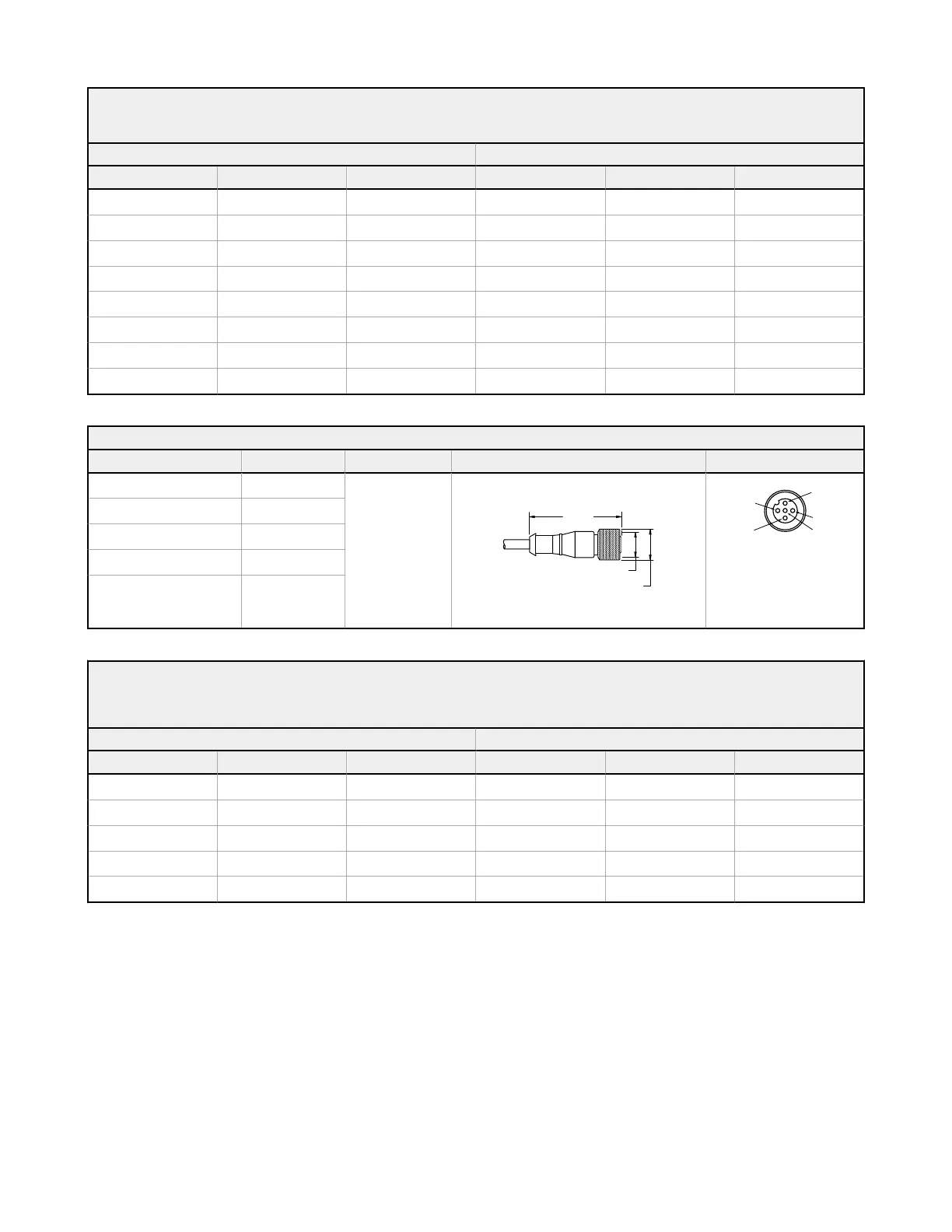

5-Pin Threaded M12/Euro-Style Cordsets—with Green/Yellow Ground Wire
Model Length Style Dimensions Pinout (Female)
QDE-515D 4.57 m (15 ft)
Straight
44 Typ.
ø 14.5
M12 x 1
2
3
4
1
5
1 = Brown
2 = White
3 = Blue
4 = Black
5 = Green/Yellow
QDE-525D 7.62 m (25 ft)
QDE-550D 15.2 m (50 ft)
QDE-575D 22.9 m (75 ft)
QDE-5100D 30.5 m (100 ft)
For 5-pin Emitters and Receivers
5-pin EZ-SCREEN emitter, model numbers SLSE..-..Q5 with Test function. One 5-pin and one 8-pin QD cable required for complete system. The
European M12 Specification pin assignment and color codes are listed as a customer courtesy. The user must verify suitability of these cables for each
application.
Banner Cable Pinout/Color Code European M12 Specification
Pin Color Function Pin Color Function
1 Brown + 24 V dc 1 Brown + 24 V dc
2 White Test #2 2 White Test #2
3 Blue 0 V dc 3 Blue 0 V dc
4 Black Test #1 4 Black Test #1
5 Green/Yellow Gnd/Chassis 5 Shield Gnd/Chassis
4.4.2 Double-Ended (Sensor Interconnect) Cordsets
Double-ended cables are generally used to interconnect multiple emitters (8-pin or 5-pin) or receivers (8-pin) within a
cascaded system. They are also useful for extending either the branch or trunk cables of a model CSB splitter cordset.
When combining cables in a multiple-light-screen cascade, refer to
Determining Interconnect Cable Lengths on page 65
for maximum cable lengths.
