Banner EZ-SCREEN - Tubular Enclosures; MSA Series Stands

Adhesive-Backed Model
21
Snap-On Model
22
Sensor Defined Area
23
The total sensing range decreases by approximately 10% per shield.

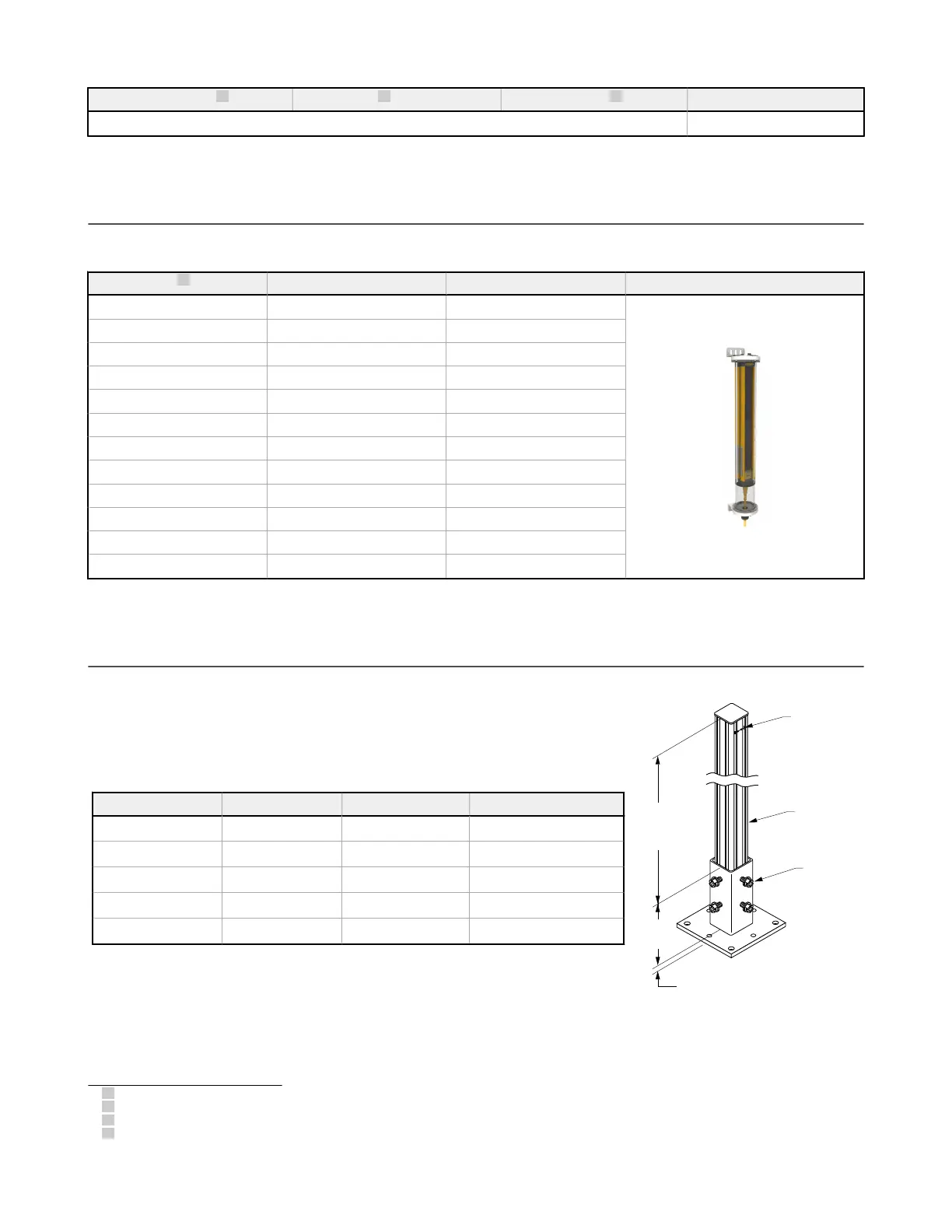

12.8 Tubular Enclosures
EZA-MBK-2 adapter bracket is required for use with MSA Series stand, see MSA Series Stands on page 90 and data
sheet p/n 117107. Explosion-proof enclosures are also available.
Enclosure Model
24
Enclosure Height For EZ-SCREEN Models
EZA-TE-150 439 mm (17.3 in) SLS..-150
EZA-TE-300 541 mm (21.3 in) SLS..-300
EZA-TE-450 744 mm (29.3 in) SLS..-450
EZA-TE-600 846 mm (33.3 in) SLS..-600
EZA-TE-750 1024 mm (40.3 in) SLS..-750
EZA-TE-900 1151 mm (45.3 in) SLS..-900
EZA-TE-1050 1354 mm (53.3 in) SLS..-1050
EZA-TE-1200 1455 mm (57.3 in) SLS..-1200
EZA-TE-1350 1608 mm (63.3 in) SLS..-1350
EZA-TE-1500 1760 mm (69.3 in) SLS..-1500
EZA-TE-1650 1913 mm (75.3 in) SLS..-1650
EZA-TE-1800 2065 mm (81.3 in) SLS..-1800
12.9 MSA Series Stands
• Provides mounting T-slots with 20 mm dimension between slots
• Base included. Available without a base by adding the suffix NB to the model
number (for example, MSA-S42-1NB).
Stand Model Pole Height Useable Stand Height Overall Stand Height
MSA-S24-1 610 mm (24 in) 483 mm (19 in) 616 mm (24.25 in)
MSA-S42-1 1067 mm (42 in) 940 mm (37 in) 1073 mm (42.25 in)
MSA-S66-1 1676 mm (66 in) 1550 mm (61 in) 1682 mm (66.25 in)
MSA-S84-1 2134 mm (84 in) 2007 mm (79 in) 2140 mm (84.25 in)
MSA-S105-1 2667 mm (105 in) 2667 mm (100 in) 2673 mm (105.25 in)
(4) M10 Bolt
Pole
40 mm
(1.58") Square
Mounting
Channel
Spacing
20 mm
(0.79")
Useable
Stand
Height
127 mm
(5.0")
Base Plate Thickness
6.4 mm (0.25")
21
Polycarbonate shield guards against weld splatter and weld flash with an adhesive-backed neoprene gasket (see data sheet p/n 61960).
22
Copolyester shield provides heavy-duty, impact-resistant protection from many types of cutting fluids (see data sheet p/n 127944).
23
Contact Banner Engineering for lens shield availability for longer sensor lengths.
24
Contact Banner Engineering for enclosure availability for longer sensor lengths.
EZ-SCREEN
®
14/30 mm Safety Light Screen
