Banner EZ-SCREEN - Bulkhead Connector; Replacement Parts

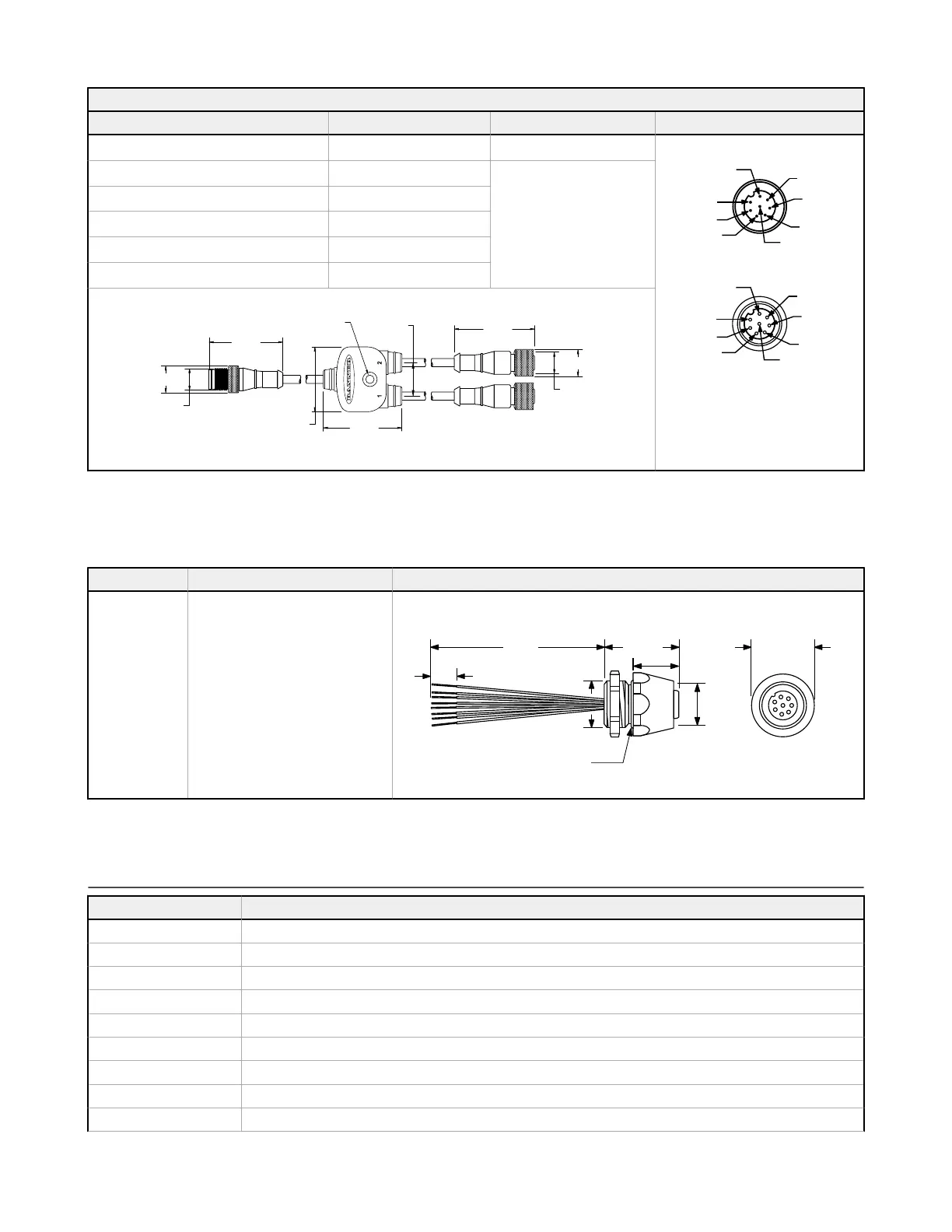

8-Pin Threaded M12/Euro-Style Splitter Cordsets—Flat Junction
Model Trunk (Male) Branches (Female) Pinout
CSB-M1280M1280 No trunk No branches Male
5
6
7
1
8
2
3
4
Female
5
4
3
2
8
1
7
6
1 = Brown
2 = Or/Bk
3 = Orange
4 = White
5 = Black
6 = Blue
7 = Gn/Ye
8 = Violet
CSB-M1281M1281 0.3 m (1 ft)
2 x 0.3 m (1 ft)
CSB-M1288M1281 2.44 m (8 ft)
CSB-M12815M1281 4.57 m (15 ft)
CSB-M12825M1281 7.62 m (25 ft)
CSB-UNT825M1281 7.62 m (25 ft) Unterminated
44 Typ.
[1.73"]
43.0
[1.69"]
Ø14.5 [0.57"]
M12 x 1
Ø14.5 [0.57"]
40 Typ.
[1.58"]
18.0
[0.71"]
Ø4.5
[0.18"]
35 [1.38"]
M12 x 1
4.4.4 Bulkhead Connector
Connector for panel connection of EZ-SCREEN component cables.
Model Connection Dimensions
PMEF-810D
8-pin Euro-style female connector 3 m
(10 ft) wires, cut to length (Banner
color code); 22 AWG/0.33 mm²
3 m
(9.8')
21.5 mm
(0.85")
13.0 mm
(0.51")
M12 x 1
O-Ring
1/4-18NPT
ø 18.0 mm
(0.71")
7.0 mm
(0.28")
4.5 Replacement Parts
Model Description
MGA-KSO-1 Panel-mount keyed reset switch
MGA-K-1 Replacement key for switch MGA-KSO-1
EZA-ADE-1 Access cover with label – emitter
EZA-ADR-1 Access cover with label – receiver
EZA-ADE-2 Access cover with inverted label – emitter
EZA-ADR-2 Access cover with inverted label – receiver
EZA-TP-1 Access cover security plate (includes 2 screws, wrench)
EZA-HK-1 Wrench, security
STP-13 14 mm test piece (for 14 mm resolution systems)
EZ-SCREEN
®
14/30 mm Safety Light Screen
www.bannerengineering.com - Tel: + 1 888 373 6767 17
