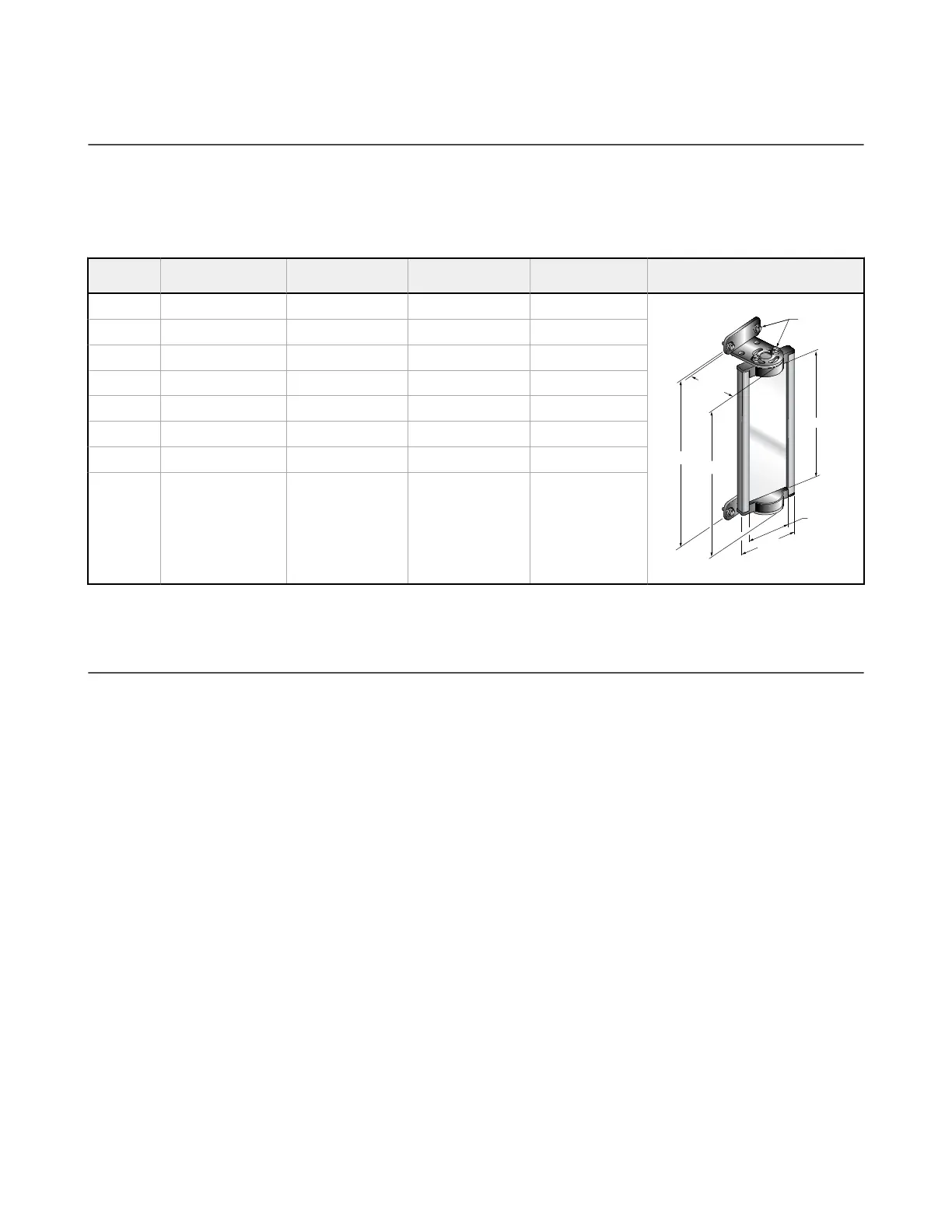

12.10 MSM Series Corner Mirrors
• Compact for light-duty applications
• Rear-surface glass mirrors are rated at 85% efficiency. The total sensing range decreases by approximately 8% per
mirror. See mirror data sheet p/n 43685 or
http://www.bannerengineering.com
for further information.
• Mounting brackets may be inverted from the positions shown (flanges pointing "inward" instead of "outward," as
shown). When this is done, dimension L1 decreases by 57 mm.
• MSAMB adapter bracket kit included with each MSA stand.
Mirror
Model
Defined Area Length Reflective Area Y Mounting L1 Mounting L2
MSM8A 150 mm (5.9 in) 267 mm (10.5 in) 323 mm (12.7 in) 292 mm (11.5 in)
L1
53.8 mm
(2.12")
L2
Y
50.8 mm
(2.00")
72.9 mm
(2.87")
M4 x 10 mm
Screw
(8 supplied)
MSM12A 300 mm (11.8 in) 356 mm (14 in) 411 mm (16.2 in) 381 mm (15 in)
MSM20A 450 mm (17.7 in) 559 mm (22 in) 615 mm (24.2 in) 584 mm (23 in)
MSM24A 600 mm (23.6 in) 660 mm (26 in) 716 mm (28.2 in) 686 mm (27 in)
MSM32A 750 mm (29.5 in) 864 mm (34 in) 919 mm (36.2 in) 889 mm (35 in)
MSM36A 900 mm (35.4 in) 965 mm (38 in) 1021 mm (40.2 in) 991 mm (39 in)
MSM44A 1050 mm (41.3 in) 1168 mm (46 in) 1224 mm (48.2 in) 1194 mm (47 in)
MSM48A 1200 mm (47.2 in) 1270 mm (50 in) 1326 mm (52.2 in) 1295 mm (51 in)
12.11 SSM Series Corner Mirrors
• Robust for heavy-duty applications
• Extra wide for use with long-range optical safety systems
• Rear-surface glass mirrors are rated at 85% efficiency. The total sensing range decreases by approximately 8% per
mirror. See mirror datasheet p/n 61934 or
www.bannerengineering.com
for further information.
• Stainless steel reflective surface models are also available. See datasheet p/n 67200.
• Robust construction, two mounting brackets and hardware included.
• EZA-MBK-2 adapter bracket is required for use with MSA Series stand, refer to the mounting bracket accessories
list.
• Brackets may be inverted from the positions shown, decreasing dimension L1 by 58 mm (2.3 in).
EZ-SCREEN
®
14/30 mm Safety Light Screen
www.bannerengineering.com - Tel: + 1 888 373 6767 91
