Cascade Powered Up Clear Object is Blocking Light Screen #4
Config: Trip
Display: —
OSSDs: On
Reset: On
Status: Green
Config: Trip
Display: beams blocked
OSSDs: Off
Reset: On
Status: Red
Config: Trip
Display: —
OSSDs: On
Reset: On
Status: Green
Config: Trip
Display: |–|
OSSDs: Off
Reset: On
Status: Red
Config: Trip
Display: —
OSSDs: On
Reset: On
Status: Green
Config: Trip
Display: |–|
OSSDs: Off
Reset: On
Status: Red
Config: Latch
Display: L
OSSDs: On
Reset: On
Status: Green
Config: Latch
Display: |–|
OSSDs: Off
Reset: On
Status: Red
Object is Blocking Light Screen #3 Object Has Been Removed; Cascade is Waiting for Reset
Config: Trip
Display: —
OSSDs: On
Reset: On
Status: Green
Config: Trip
Display: —
OSSDs: On
Reset: On
Status: Green
Config: Trip
Display: beams blocked
OSSDs: Off
Reset: On
Status: Red
Config: Trip
Display: —
OSSDs: On
Reset: On
Status: Green
Config: Trip
Display: |–|
OSSDs: Off
Reset: On
Status: Red
Config: Trip
Display: —
OSSDs: On
Reset: On
Status: Green
Config: Latch
Display: |–|
OSSDs: Off
Reset: On
Status: Red
Config: Latch
Display: L
OSSDs: Off
Reset: Flashing
9
Status: Red

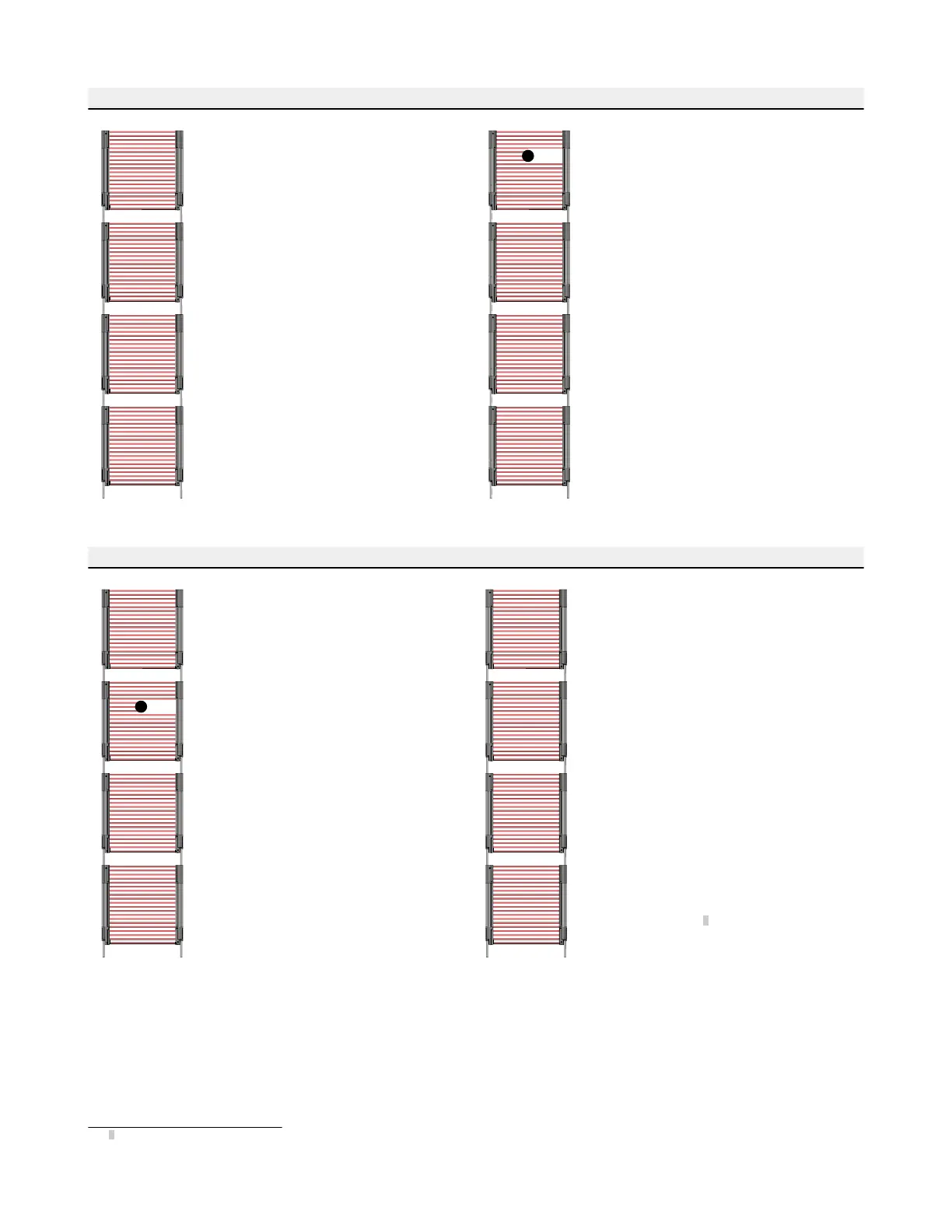

Figure 27. Cascade Indicator Status Conditions
9
Waiting for reset
