Y
L1
L2
L3
65 mm
(2.6")
R13 mm (0.5")
minimum bend
45.2 mm
(1.78")
56.0 mm
(2.20")
4.2 mm
(0.17")
36.0 mm
(1.42")
12 mm*
(0.47")
*For SLS..-150 models, this distance is 52 mm (2")

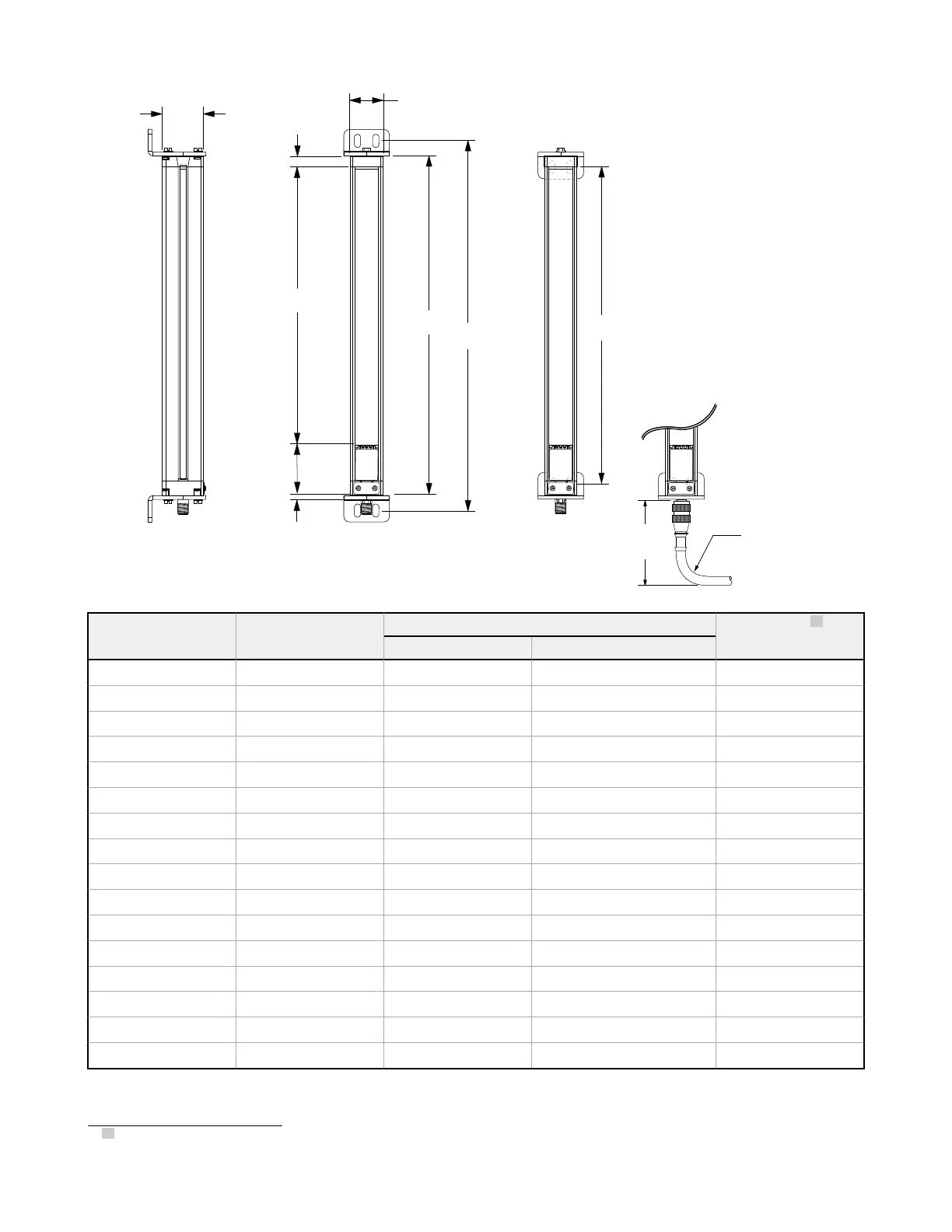

Emitter / Receiver Model Housing Length L1 Distance Between Bracket Holes Defined Area
20
Y
L2 L3
SLS..-150 262 mm (10.3 in) 295 mm (11.6 in) 237 mm (9.3 in) 150 mm (5.9 in)
SLS..-300 372 mm (14.6 in) 405 mm (16.0 in) 347 mm (13.7 in) 300 mm (11.8 in)
SLS..-450 522 mm (20.6 in) 555 mm (21.9 in) 497 mm (19.6 in) 450 mm (17.7 in)
SLS..-600 671 mm (26.4 in) 704 mm (27.7 in) 646 mm (25.4 in) 600 mm (23.6 in)
SLS..-750 821 mm (32.3 in) 854 mm (33.6 in) 796 mm (31.3 in) 750 mm (29.5 in)
SLS..-900 971 mm (38.2 in) 1004 mm (39.5 in) 946 mm (37.2 in) 900 mm (35.4 in)
SLS..-1050 1120 mm (44.1 in) 1153 mm (45.4 in) 1095 mm (43.1 in) 1050 mm (41.3 in)
SLS..-1200 1270 mm (50.0 in) 1303 mm (51.3 in) 1245 mm (49.0 in) 1200 mm (47.2 in)
SLS..-1350 1420 mm (55.9 in) 1453 mm (57.2 in) 1395 mm (54.9 in) 1350 mm (53.1 in)
SLS..-1500 1569 mm (61.8 in) 1602 mm (63.1 in) 1544 mm (60.8 in) 1500 mm (59.1 in)
SLS..-1650 1719 mm (67.7 in) 1752 mm (69.0 in) 1694 mm (66.7 in) 1650 mm (65.0 in)
SLS..-1800 1869 mm (73.6 in) 1902 mm (74.9 in) 1844 mm (72.6 in) 1800 mm (70.9 in)
SLS..-1950 2018 mm (79.4 in) 2051 mm (80.8 in) 1993 mm (78.5 in) 1950 mm (76.8 in)
SLS..-2100 2168 mm (85.4 in) 2201 mm (86.7 in) 2143 mm (84.4 in) 2100 mm (82.7 in)
SLS..-2250 2318 mm (91.3 in) 2351 mm (92.6 in) 2293 mm (90.3 in) 2250 mm (88.6 in)
SLS..-2400 2468 mm (97.2 in) 2501 mm (98.5 in) 2443 mm (96.2 in) 2400 mm (94.5 in)
20
Nominal measurement
EZ-SCREEN
®
14/30 mm Safety Light Screen
