SC22-3 Safety Controller
Instruction Manual
Configuration Onboard Interface
5.4.4 Configuration Summary
Configuration Summary This section is identical to that
in Section 5.2, and is included for convenient reviewing of the
current settings while in Configuration mode. It provides read-
only screens to review:
Input device terminal assignments for each device in the
current configuration,
The mapping relationships between input devices, and
between input devices and safety outputs, and
The current settings of the status outputs (to change the
settings, see Section 5.4.3).
Use the up/down arrows to highlight your selection, then press
OK to select.
5.4.5 Save Configuration
Initial configuration changes are stored in a temporary memory
location. To make the configuration changes permanent
(save the configuration in non-volatile memory), select Save
Configuration and press OK.
If you do not want to save the changes while at the Edit
Configuration menu, press the ESC push button and select Yes
when asked if you want to exit without saving changes.
When the configuration is saved or if ESC is pressed, the display
will return to the Configuration Mode menu.
System
Settings
Terminal
Assignments
Input/Output
Mapping
Status Output
Settings
Status
Outputs
Safety
Outputs
Edit
Configuration
(Section 5.4)
Edit
Input
Delete
Input
Inputs
(Section 5.4.2)
Outputs/System
Settings
(Section 5.4.3)
Configuration
Summary
(Section 5.4.4)
← OK
ESC →
← OK
ESC →
← OK
ESC →
← OK
ESC →
← OK
ESC →
Add Input
(Section 5.5)
Save
Configuration
(Section 5.4.5)
Name
Configuration
(Section 5.4.1)

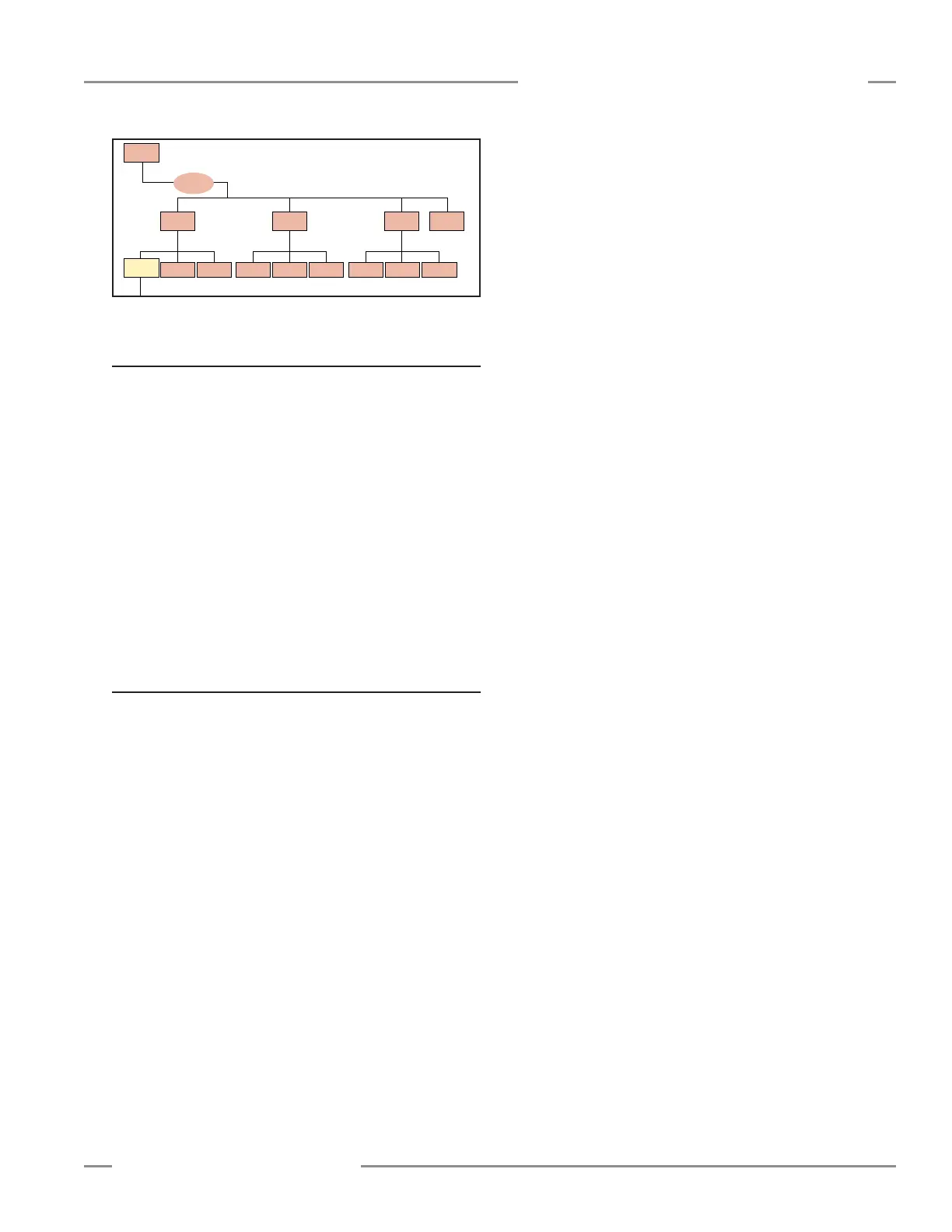

Edit Configuration continued
