SC22-3 Safety Controller
Instruction Manual
Configuration — Onboard Interface
Map Outputs — This option is used to select which of the safety
output(s) the input controls. Any combination of 1, 2, or all 3
outputs may be selected, but at least one must be selected. All
safety devices, plus reset and ON/OFF non-safety devices must
be mapped to one or more safety outputs. Map mute enable
devices, mute sensors, and bypass sensors to a safety input
device.
• Select Map Outputs in the Input Properties menu, and press
OK.
• To map the input to an output, use the up/down arrows to
select the output, then press OK.
• A filled-in circle on the display indicates the input is mapped
to the corresponding output; an empty circle indicates the
input is not mapped to that output.
• To add or remove the input mapping, select the output and
press OK. When the input is mapped to the safety outputs
as desired, select Save and press OK.
• After the input is mapped to the safety outputs, the display
returns to the Input Properties menu.

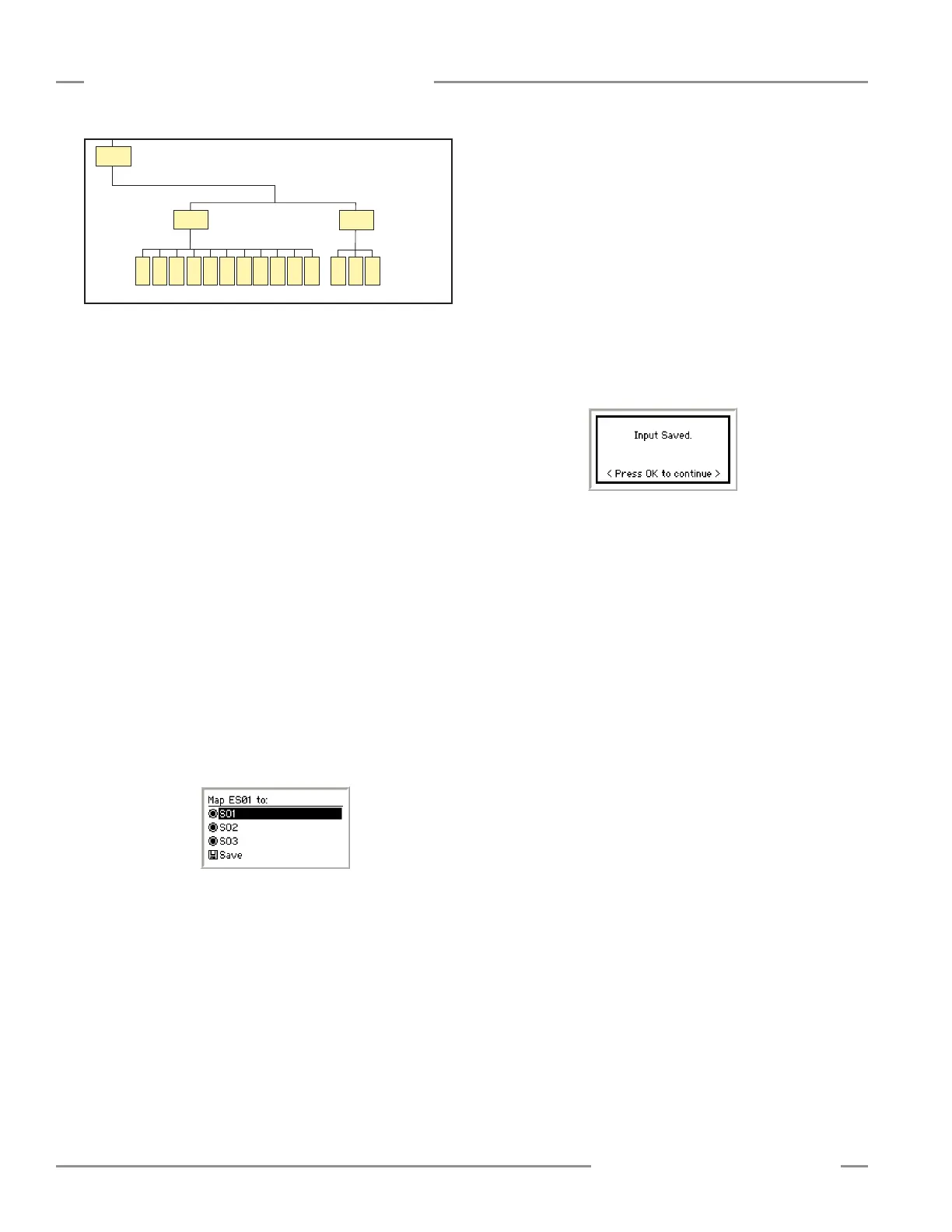

Screen below shows device ES01 mapped to all three
safety outputs.
← OK ESC →
Safety Input
(Section 5.5.1)
Non-Safety
Input
(Section 5.5.2)
← OK ESC →
← OK ESC →
Mute
Enable
Reset
ON/OFF
Gate
Switch
Optical
Sensor
E-Stop
Safety
Mat
Protective
Stop
Two-Hand
Control
Enabling
Device
Rope
Pull
EDM
Bypass
Switch
Mute
Sensor
Add Input
(Section 5.5)
Add an Input continued
Select Reset Logic — To select automatic or manual reset
logic, select Reset Logic and press OK.
• Use the left/right arrows to select the desired reset logic
parameter and press OK.
• After setting the Reset Logic parameter, the display returns
to the Input Properties menu.
Save the Input Device Parameters — When all of the device’s
parameters have been set as desired, select < Done > and
press OK to save the parameters.
• The display will indicate the input parameters were saved.
Press OK to continue.
• The display returns to the Edit Inputs menu.
