6.2.1 Run Mode Screen — OBI
The OBI Run mode screen displays current information about
the Safety Controller, including:
• The configuration name
• Safety output status
• Input status
• System status
• XM card status

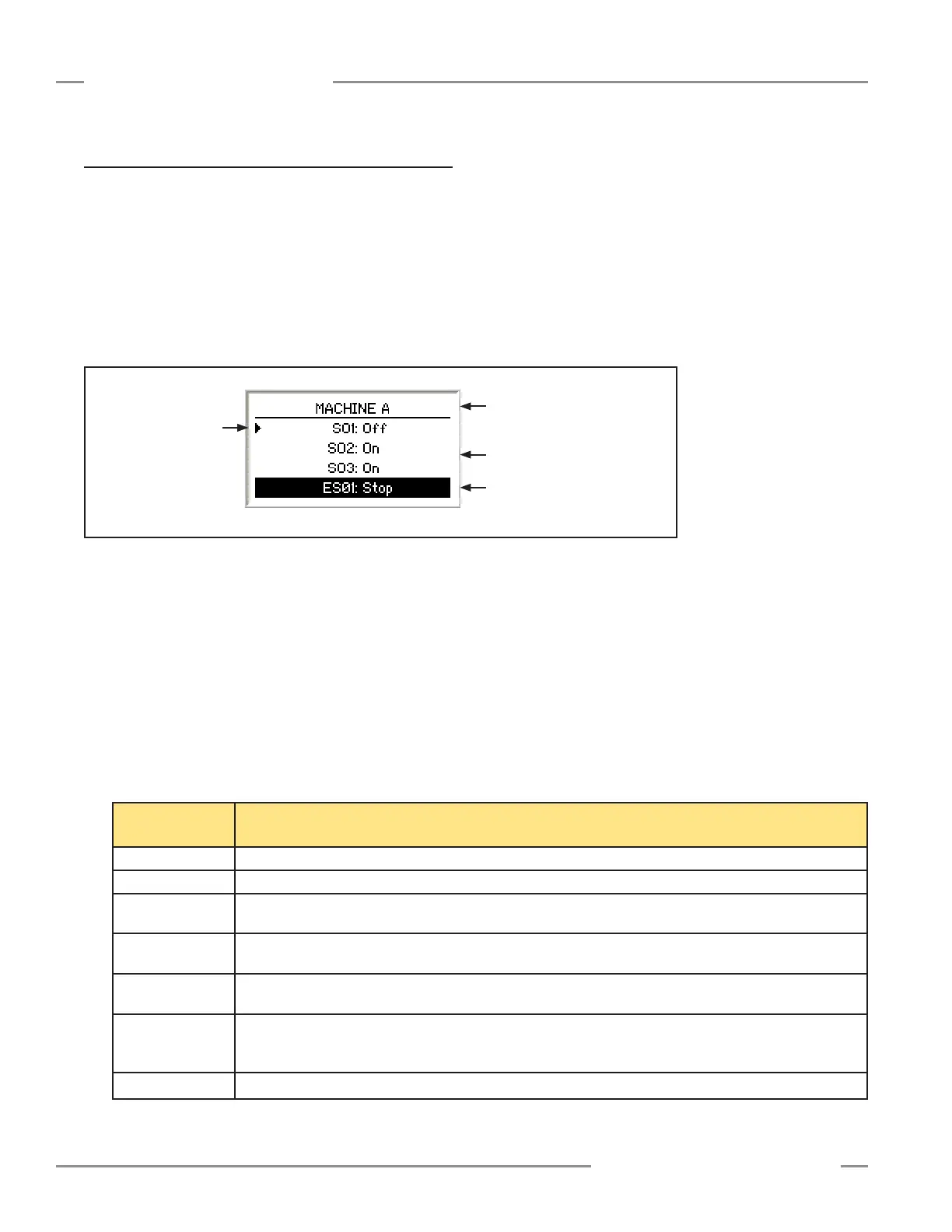

Figure 6-3. Run mode screen — OBI
Arrowhead designates
selected safety output
Configuration Name
Safety Output Status
Input Status Cause of
Output SO1 Status, or
Required Action
Configuration Name: The top line of the display reads either
the name of the configuration stored in the Safety Controller, if it
has been confirmed, or Configuration not confirmed, if it has not.
Safety Output Status: Lines 2, 3, and 4 of the screen display
the status of the three safety outputs. The selected output
will have a small arrowhead to its left, on the screen. (The
arrowhead scrolls through the safety outputs that are OFF, at
2-second intervals.) Line 5 of the display states the reason for
the status of the selected safety output.
NOTE: Output faults are recoverable via a system reset (see
Section 6.4).
Safety Output
Status Message
Cause and/or Required Action
ON The safety output is ON.
ON-Delay The safety output will turn ON when the ON-delay time expires.
OFF
The safety output is OFF.
Line 5 of the display indicates the reason the safety output is OFF.
OFF-Delay
The safety output will turn OFF when the OFF-delay expires.
Line 5 of the display indicates the reason the safety output is in an OFF-delay.
Reset Needed
A manual reset operation needs to be performed.
Line 5 of the display indicates the name of the manual reset input to press.
Fault
A problem has been detected with the safety output. See the troubleshooting table (Section 8.3.1) to find additional
information regarding the fault.
If the fault is due to an external device monitor (EDM) fault, line 5 of the display indicates the name of the EDM.
Enable Mode Line 5 of the display indicates Enable Mode if a safety output is in Enable mode.
