SC22-3 Safety Controller
Instruction Manual
Overview
Status Indicator Condition Indicates Controller Status
All Indicators OFF
— Initiation Mode
Power
ON Green
OFF
Power ON
Power OFF
Status (Controller Mode)
ON Red
Flashing Red
OFF
Configuration mode
Lockout mode
Run mode
Transmit/Receive Tx/Rx
Flashing Green
OFF
Transmitting or receiving data (a link is established with the PC)
Not transmitting or receiving data
Safety Output SO1, SO2, SO3
ON Green
ON Red
Flashing Red
Flashing Green
Safety output ON
Safety output OFF
Safety output fault detected
Safety output waiting for reset

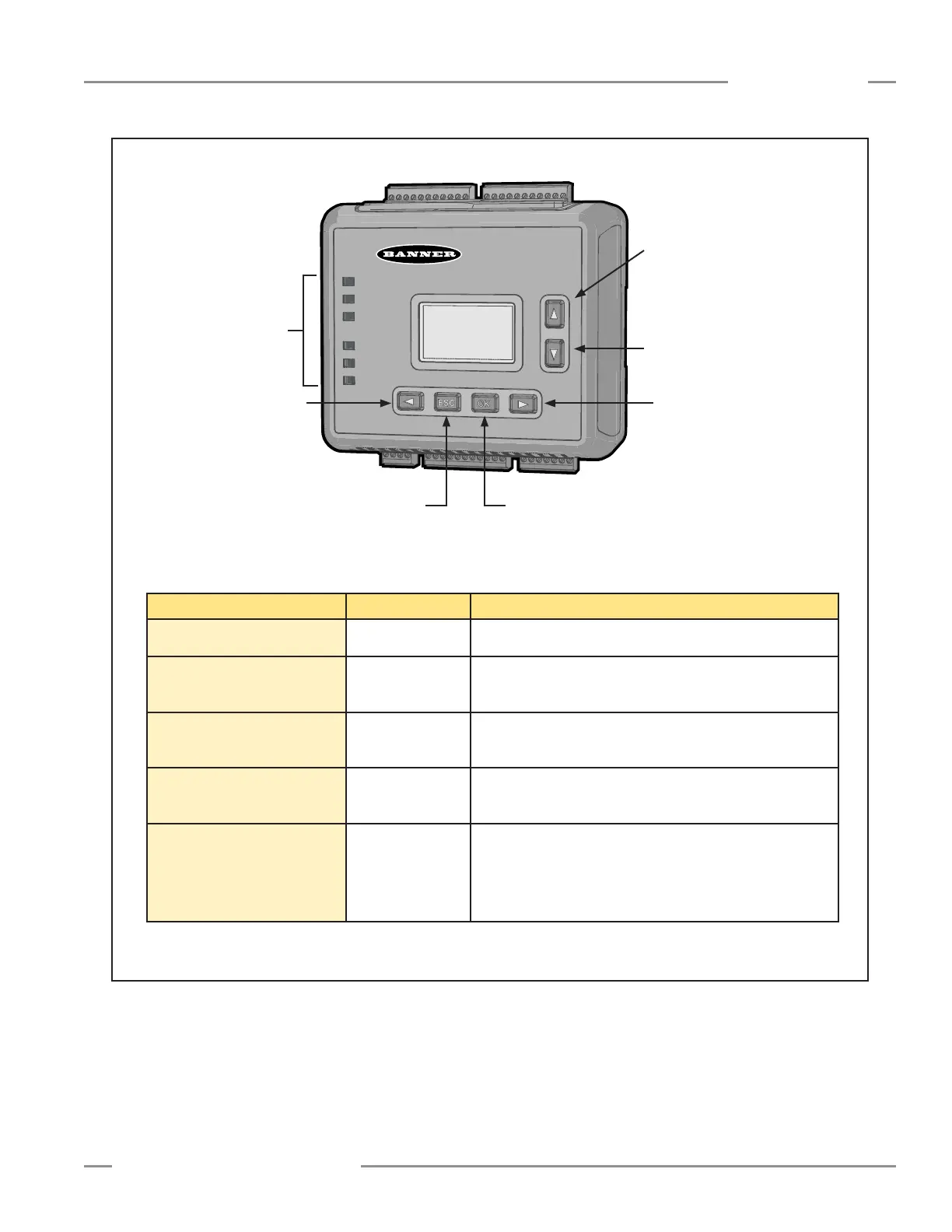

Figure 1-4. Onboard Interface, including push buttons, LCD display and status indicators
SC22-3
Safety Controller
Power
Status
Tx/Rx
SO1
SO2
SO3
Moves cursor up or causes items
within a list to be displayed as
the cursor is moving up through
the list. May also be used to make
selection settings.
Moves cursor down or causes
items within a list to be displayed
as the cursor is moving down
through the list. May also be used
to make selection settings.
Moves cursor to the
right or performs
selection setting.
Enters or stores the item highlighted in the
display as the intended selection or may be used
to toggle a setting
Moves cursor to the pre-established point
in the program to re-establish
a menu reference point.
Status
Indicators
Moves cursor to
the left or performs
selection setting.
NOTE: The Onboard Interface functions are covered in more detail in Section 5 and the OBI tutorial, appendix C.
