Generic Hookup: Safety Output with EDM
XS/SC26-2xx
XS2so or XS4so
Single-Channel
Stop Circuit
Dual-Channel
Stop Circuit
+24Vdc
+24Vdc 0Vdc
0Vdc
SO1a
(SO1 not split)
SO1b
EDM
FSD1
FSD2
Solid-State Safety Outputs SO2,
SO3, and SO4 can be wired
similarily.
When a Solid-State Safety Output
has been split into two individual
outputs, each output requires an
individual EDM or AVM input for
monitoring.
DC common (0Vdc) must be
common between the module’s
0Vdc terminal and the common of
the load (e.g. FSD).

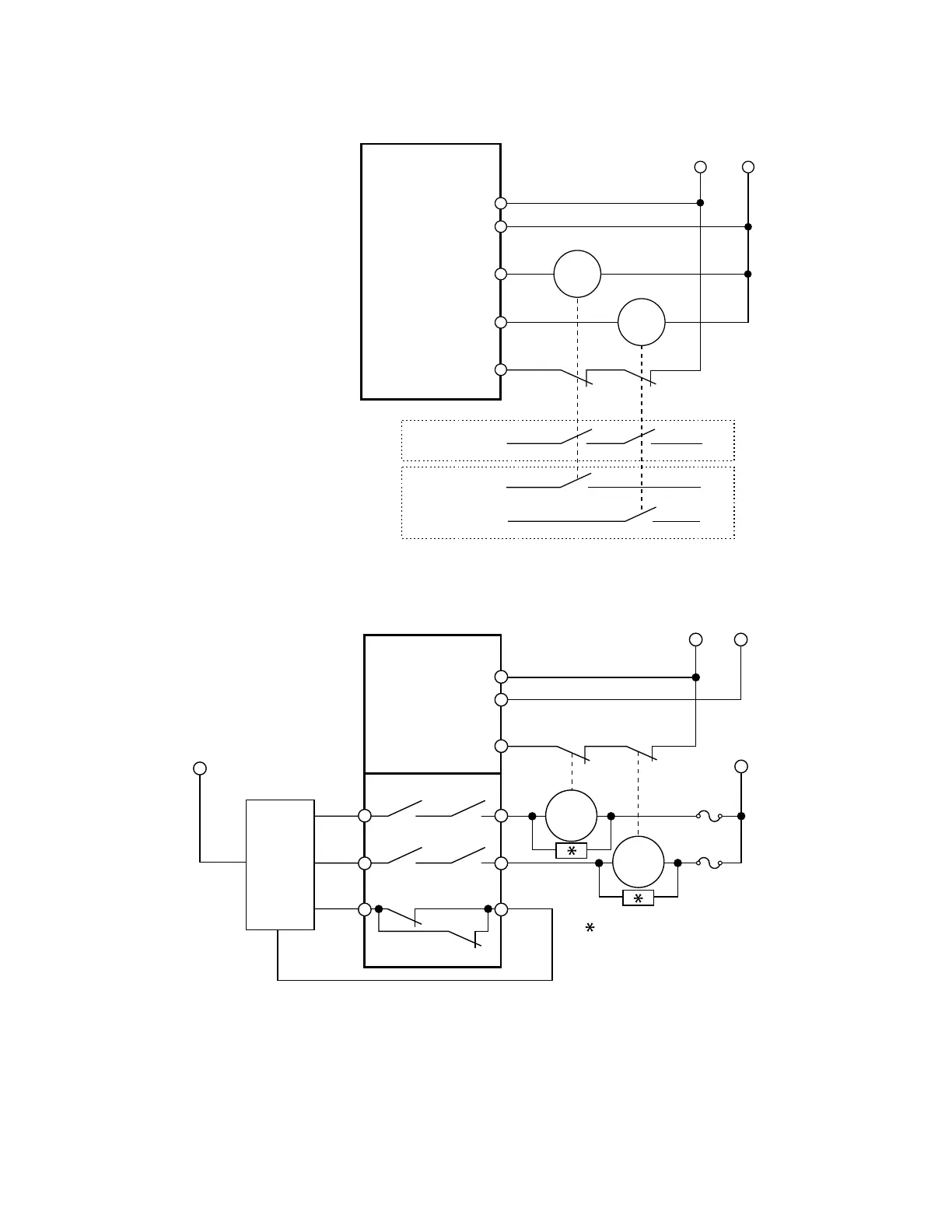

Figure 74. Generic Hookup: Solid-State Safety Output with EDM
24
32
14
+24Vdc
+24Vdc
0Vdc
0Vdc
L2/-V
L1/+V
EDM
XS1ro or XS2ro
XS/SC26-2xx
23
31
13
Safety Relay Outputs 43/44,
53/54 and 61/62 can be
wired similarly, but require a
separate EDM or AVM input
for monitoring.
MPCE1
MPCE2
Arc Suppressors
Machine
Control
Circuit
Feedback Loop (optional)
Figure 75. Generic Hookup: Safety Relay Output (Dual-Channel) with EDM
XS/SC26-2 Safety Controller
94
