4.12 Print Options

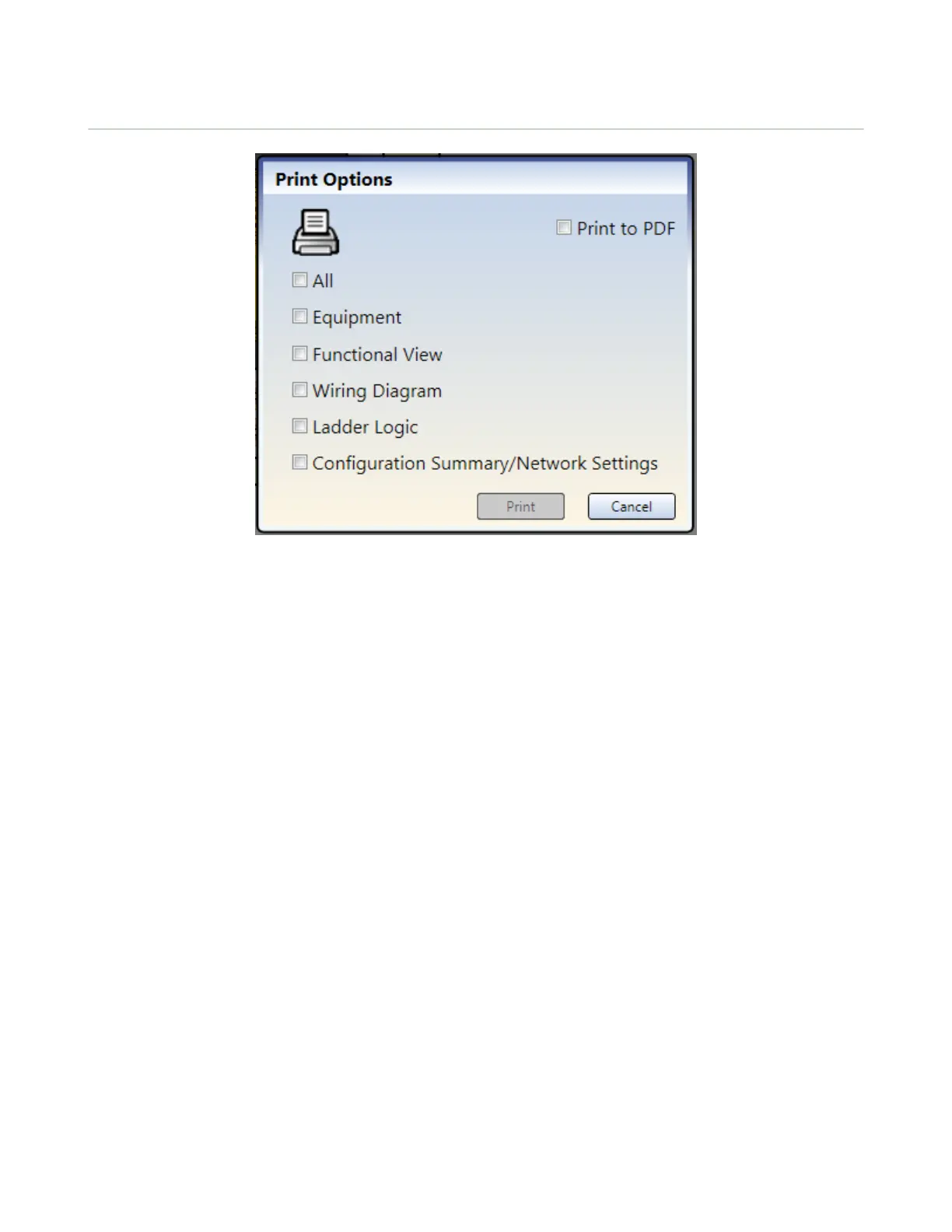

Figure 43. Print Options
The PC Interface provides several options to print the configuration. Click Print on the toolbar to access the Print
Options.
The following print choices are available:
• All—prints all views, including Network Settings (in Ethernet-enabled versions)
• Equipment—prints Equipment tab
• Functional View—prints Functional View tab
• Wiring Diagram—prints Wiring Diagram tab
• Ladder Logic—prints Ladder Logic tab
• Configuration Summary/Network Settings—prints Configuration Summary and Network Settings (when
available)
Printing Options:
• Print to PDF—prints the selection to a PDF file stored in a user-defined location
• Print—opens the default Windows Print dialog and sends the selection to the user-defined printer
XS/SC26-2 Safety Controller
52
