XS1ro and XS2ro Safety Relay Modules
Bus Power
XS1ro 0.125 A (outputs On)
XS2ro: 0.15 A (outputs On)
Maximum Power
2000 VA, 240 W
Electrical Life
50,000 at full resistive load
Overvoltage Category
III
Pollution Degree
2
Mechanical Life
40,000,000 operations
Note: Transient suppression is recommended when
switching inductive loads. Install suppressors across load.
Never install suppressors across output contacts.
Certifications
Approvals pending
Contact Rating
UL/NEMA:
• N.O. Contacts: 6A 250 V ac/24 V dc resistive; B300/Q300 pilot duty
• N.C. Contacts: 2.5A 150 V ac/24 V dc resistive; Q300 pilot duty
IEC 60947-5-1:
• N.O. Contacts: 6 A 250 V ac/dc continuous; AC 15: 3 A 250 V; DC13: 1
A 24 V/4 A 24 V 0.1 Hz
• N.C. Contacts: 2.5 A 150 V ac/dc continuous; AC 15: 1 A 150 V; DC13:
1 A 24 V/4 A 24 V 0.1 Hz
Contact Ratings to preserve 5 μm AgNi gold plating
Minimum Maximum
Voltage 100 mV ac/dc 60 V ac/dc
Current 1 mA 300 mA
Power 1 mW (1 mVA) 7 W (7 VA)

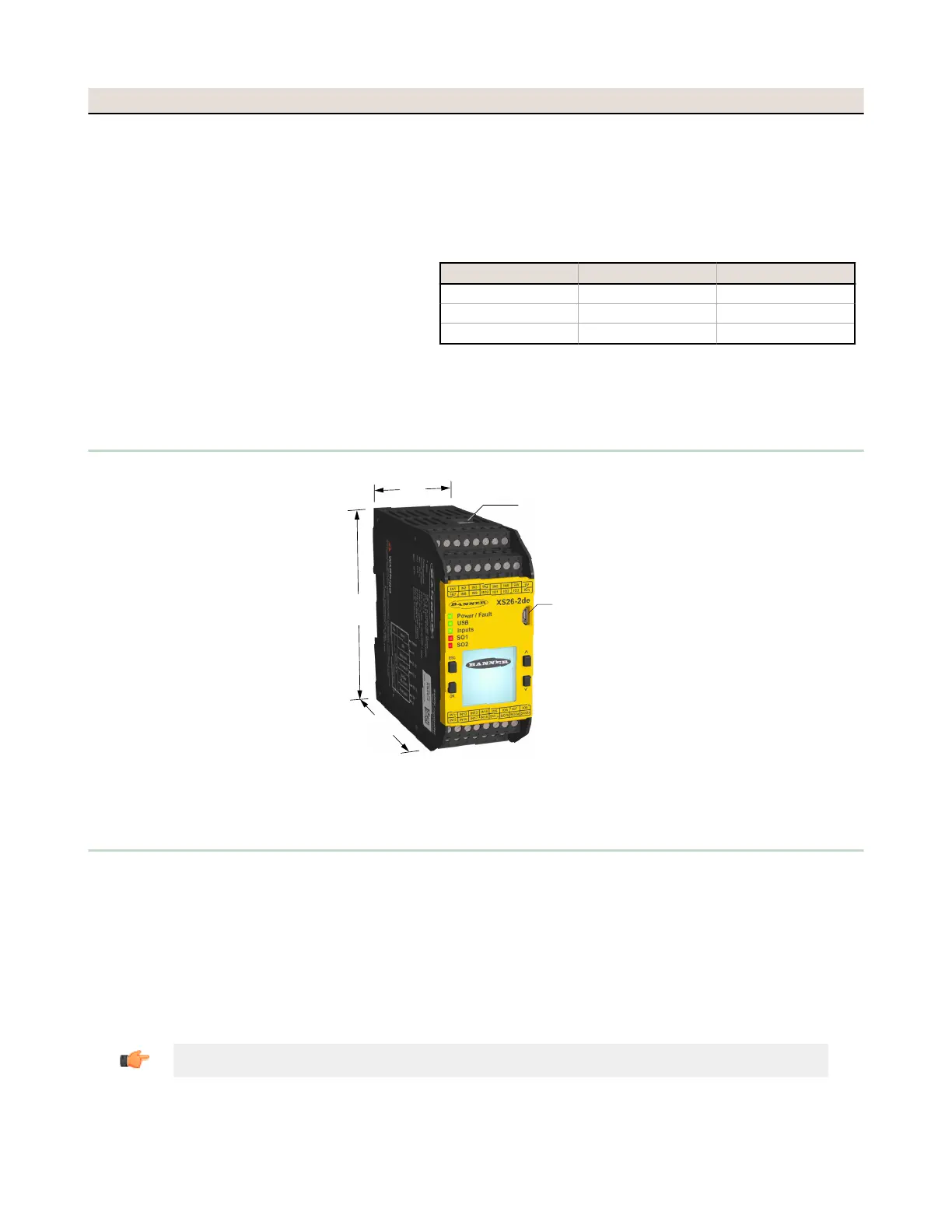

3.2 Dimensions
110
[4.3]
129
[5.1]
45
[1.8]
Ethernet
Port
Micro USB
Port
Figure 3. Dimensions
3.3 PC Requirements
Operating system:
Microsoft Windows XP Service Pack 3, Windows Vista, Windows 7, or Windows 8 (except Windows RT)
System type: 32-bit, 64-bit
Hard drive space: 80 MB (plus up to 280 MB for Microsoft .NET 4.0, if not already installed)
Memory (RAM): 512 MB minimum, 1 GB+ recommended
Processor: 1 GHz minimum, 2 GHz+ recommended
Screen resolution: 1024 × 768 full color minimum, 1650 × 1050 full color recommended
Third-party software: Microsoft .NET 4.0 (included with installer), PDF Viewer (such as Adobe Acrobat)
USB port: USB 2.0 (not required to build configurations)
Important: Administrative rights are required to install the Safety Controller drivers (needed for communication with the
controller).
XS/SC26-2 Safety Controller
12
