4.18 Live Mode

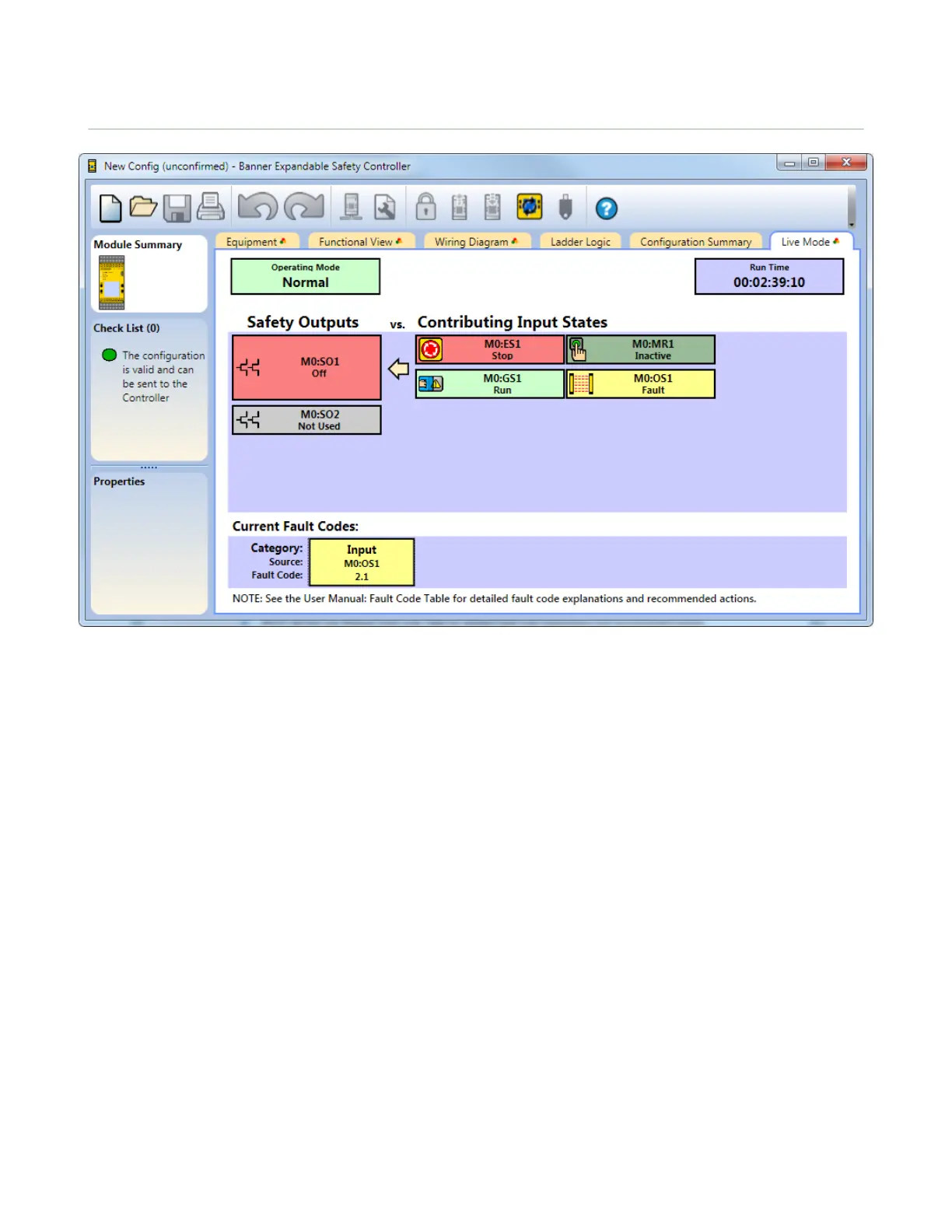

Figure 48. Run Time—Live Mode view
The Live Mode view becomes accessible when Live Mode is clicked on the toolbar. Enabling Live Mode disables
configuration modification on all other views. The Live Mode view provides additional device and fault information,
including a fault code (see Fault Code Table on page 108 for the description and possible remedies). The Run-time data is
also updated on the Functional View, Equipment, and Wiring Diagram views providing the visual representation of the
device states. See Figure 52 on page 59 for the differences between Live Mode view and all other views.
