Barco ClickShare CSE-200+ Installation Manual

R5900087 /04 ClickShare CSE-200+ 61
6.8 Display setup, Outputs
Resolution
The output resolution to the display is set on Auto. That means that the CSE-200 + output resolution is
automatically adapted to the resolution of the display. For HDMI displays, a hot plug detection is available.
HDMI hot plug display detection
The HDMI hot plug display detection can be enabled by checking the check box before HDMI Hot-Plug display
detection.
CEC
Consumer Electronics Control (CEC) is a feature of HDMI designed to allow users to command and control
devices connected through HDMI by using only one remote control.
To enable CEC, check the check box before Enable CEC.
Screen saver setup
1. Log in to the Configurator.
2. Click Display & Audio → Outputs.

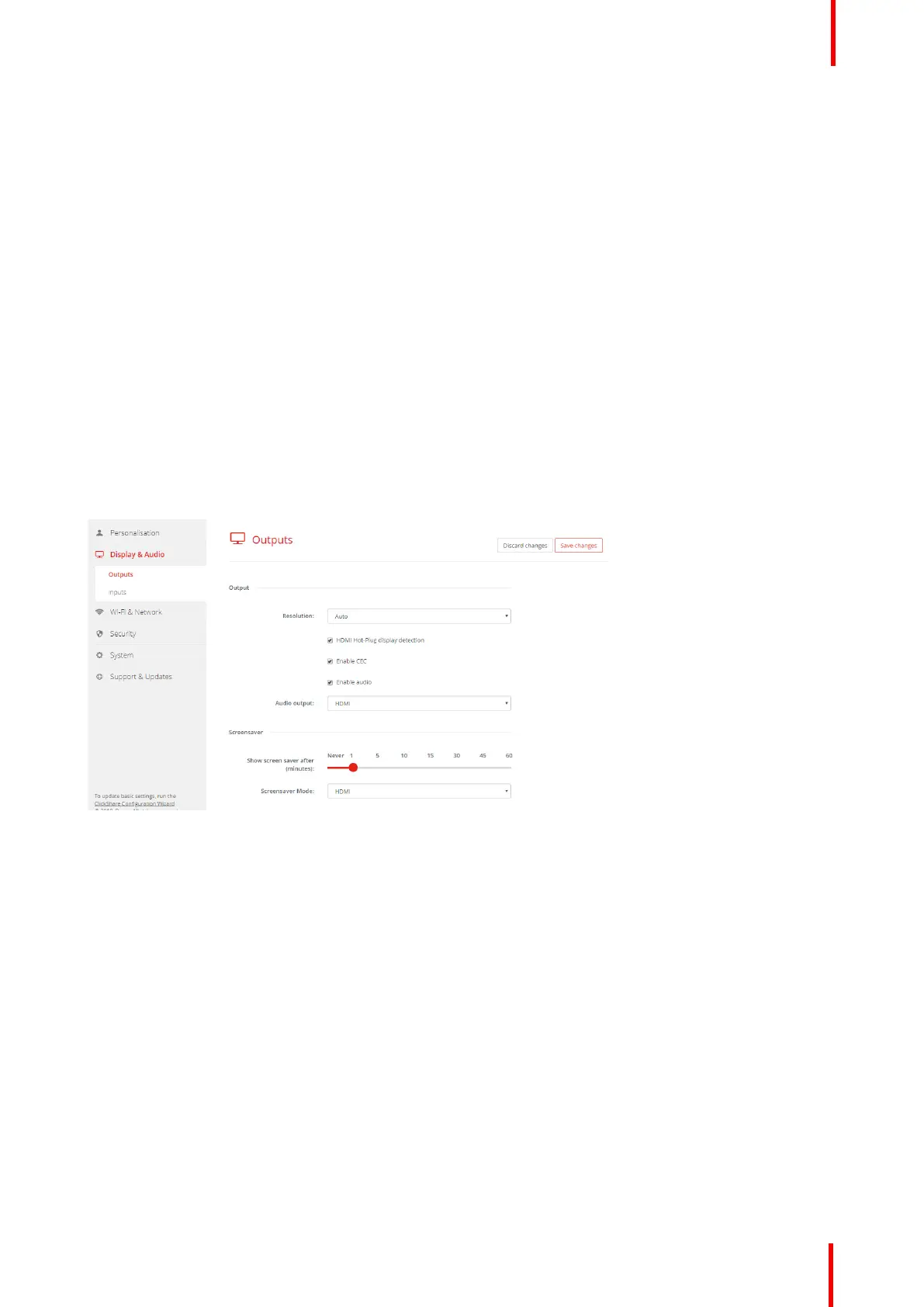

Image 6-15: Display settings
3. To activate the screen saver, drag the slider bar to the left or to the right until the desired delay time is reached.
When the slider is set completely to the left, the screen saver will never be activated.
Screensaver mode
The screensaver mode can be set to an external source. The HDMI input can be configured to be used as
screensaver. E.g. a room PC connected to the unit to display signage content when the Base Unit is not being
used for content sharing.
Click on the drop down box next to screensaver mode and make your selection between default and HDMI.
6.9 Display setup, Inputs
About the input
When a input source is connected to the HDMI input, the Signal led lits up. The name of the source is
displayed next to Source Name but can be changed. This source name is displayed on the screen.
CSE-200+ Configurator

Barco ClickShare CSE-200+ Specifications

General

Wireless Frequency Band	2.4 GHz and 5 GHz
Video Outputs	HDMI
Number of Sources Simultaneously on Screen	2
Native Protocols	AirPlay, Google Cast, Miracast
Wireless Sharing	Yes
Resolution	Up to 4K UHD (3840x2160)
Security	WPA2
Compatibility	Windows, macOS, iOS, Android
Operating System	Windows, macOS, iOS, Android
Frame Rate	30 fps
Output Resolution	Up to 4K UHD (3840x2160)
Audio	HDMI audio
USB	USB-A
ClickShare Buttons	2
Authentication Protocol	WPA2
Wireless Transmission Protocol	IEEE 802.11ac
Reach	30 meters
Maximum Number of Presenters	8
Connection Type	Wireless
Resolution Support	Up to 4K UHD (3840x2160)
