Barco ClickShare CSE-200+ Installation Manual

R5900087 /04 ClickShare CSE-200+30
2
3
4
5
6
7
8
9
10
1

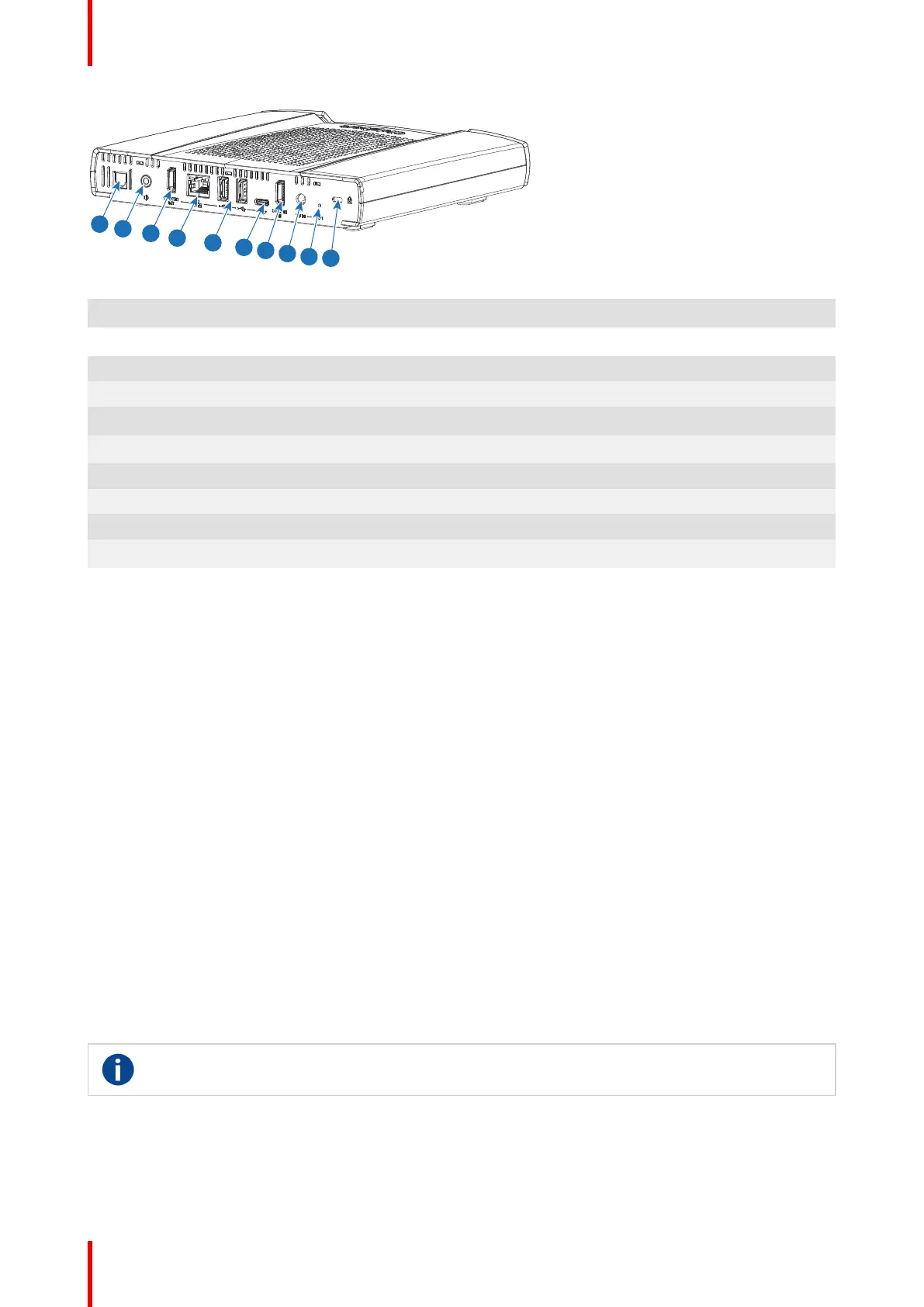

Image 2-3: Backside Base Unit
1 Digital Audio out
2 Analog Audio out
3 HDMI out
4 LAN Ethernet connection
5 USB Type-A port
6 USB Type-C
TM
port
7 HDMI in
8 Power connection
9 Reset
10 Kensington lock
Mechanical fixture points
The mechanical fixture points are located at the bottom of the Base Unit
Antenna
The antenna is built-in in the CSE-200+.
Bottom layout of the Base Unit
The serial number label containing the Barco part number, the revision number, production date (week-year)
and the serial number.
The product label with the applicable certification logos.
The product label contains:
• the Barco logo
• the product name
• the Barco part number
• the power rating
• markings for applicable standards (CE, CCC, UL, ...)
• markings for waste regulation
• “Made in ...”
2.4 About the Button
Button
A Button toggles the sharing of the individual PC or MAC screen on the meeting screen.
Button layout
A Button consists of three main components.
CSE-200+ Specifications

Barco ClickShare CSE-200+ Specifications

General

Wireless Frequency Band	2.4 GHz and 5 GHz
Video Outputs	HDMI
Number of Sources Simultaneously on Screen	2
Native Protocols	AirPlay, Google Cast, Miracast
Wireless Sharing	Yes
Resolution	Up to 4K UHD (3840x2160)
Security	WPA2
Compatibility	Windows, macOS, iOS, Android
Operating System	Windows, macOS, iOS, Android
Frame Rate	30 fps
Output Resolution	Up to 4K UHD (3840x2160)
Audio	HDMI audio
USB	USB-A
ClickShare Buttons	2
Authentication Protocol	WPA2
Wireless Transmission Protocol	IEEE 802.11ac
Reach	30 meters
Maximum Number of Presenters	8
Connection Type	Wireless
Resolution Support	Up to 4K UHD (3840x2160)
