Barco ClickShare CSE-200+ Installation Manual

R5900087 /04 ClickShare CSE-200+ 91
6.33 Buttons
About Buttons
The Button page indicates to which Base Unit the Buttons are connected. It indicates also the current state.
All Buttons used with the Base Unit are indicated in the Buttons List. The list contains the state, the signal
strength, the serial number, the firmware version, the number of connections and last connection.
It is possible to update the software of the Buttons over Wi-Fi.
To edit the settings
1. Log in to the Configurator.
2. Click System → Buttons.

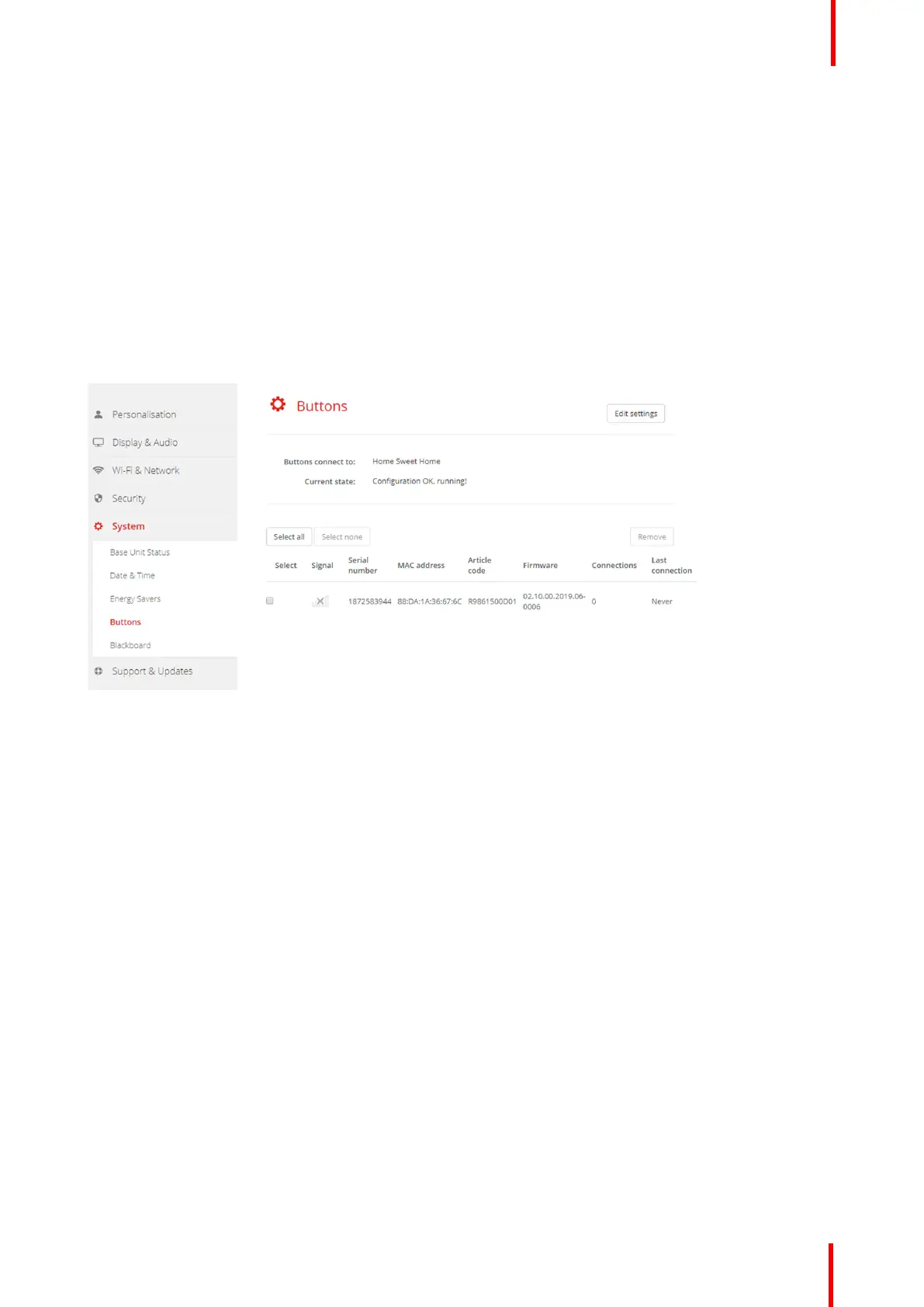

Image 6-50
The current state is indicated and the list of Buttons is given.
3. Click Edit settings.
4. Select to which access point the Buttons are connected. Click on the drop down list next to Buttons connect to
and select the desired point.
Depending on the selection, internal access point or external access point, settings should be filed out.
For an internal access point, no settings are needed.
6.34 Buttons, External access point
Overview
The selection of a security mode for the connection between the Buttons and the corporate access points can
be done in the ClickShare Configurator. When configuring the buttons to connect to an ‘External Access Point’
, the authentication mode can be selected:
• Security mode EAP-TLS, see “Buttons, External access point, mode EAP-TLS”, page 92.
• Security mode EAP-TTLS, “Buttons, External access point, mode EAP-TTLS”, page 93.
• Security mode PEAP, “Buttons, External access point, mode PEAP”, page 94.
• Security mode WPA2-PSK, “Buttons, External access point, mode WPA2-PSK”, page 95.
CSE-200+ Configurator

Barco ClickShare CSE-200+ Specifications

General

Wireless Frequency Band	2.4 GHz and 5 GHz
Video Outputs	HDMI
Number of Sources Simultaneously on Screen	2
Native Protocols	AirPlay, Google Cast, Miracast
Wireless Sharing	Yes
Resolution	Up to 4K UHD (3840x2160)
Security	WPA2
Compatibility	Windows, macOS, iOS, Android
Operating System	Windows, macOS, iOS, Android
Frame Rate	30 fps
Output Resolution	Up to 4K UHD (3840x2160)
Audio	HDMI audio
USB	USB-A
ClickShare Buttons	2
Authentication Protocol	WPA2
Wireless Transmission Protocol	IEEE 802.11ac
Reach	30 meters
Maximum Number of Presenters	8
Connection Type	Wireless
Resolution Support	Up to 4K UHD (3840x2160)
