Barco ClickShare CSE-200+ Installation Manual

R5900087 /04 ClickShare CSE-200+90
• Pairing a Button on the Base Unit's USB port
• Plugging in an HDMI display
• Plugging in an HDMI source
Standby mode
When the Base Unit goes in deep standby mode, it will shut down all processes, including the Wi-Fi access
point and the secondary LAN connection.
The Base Unit will go to network standby whenever there is an active network connected to the Base Unit.
In this case, the Base Unit's LEDs will be breathing white.
If no network is detected, it will enter deep standby and the Base Unit's LEDs will be dark.
Power consumption in Deep standby: 0.4W
The Base Unit will wake up from networked standby with one of the following actions:
• Press the standby button on the Base Unit
• Connecting Buttons or apps to the Base Unit
• Sending a Magic Packet to trigger wake on LAN
• Successful connections on WLAN to trigger wake on WLAN
• When an HDMI cable is plugged
• When a CEC event is received
To wake the Base Unit from deep standby you need to press the standby button.

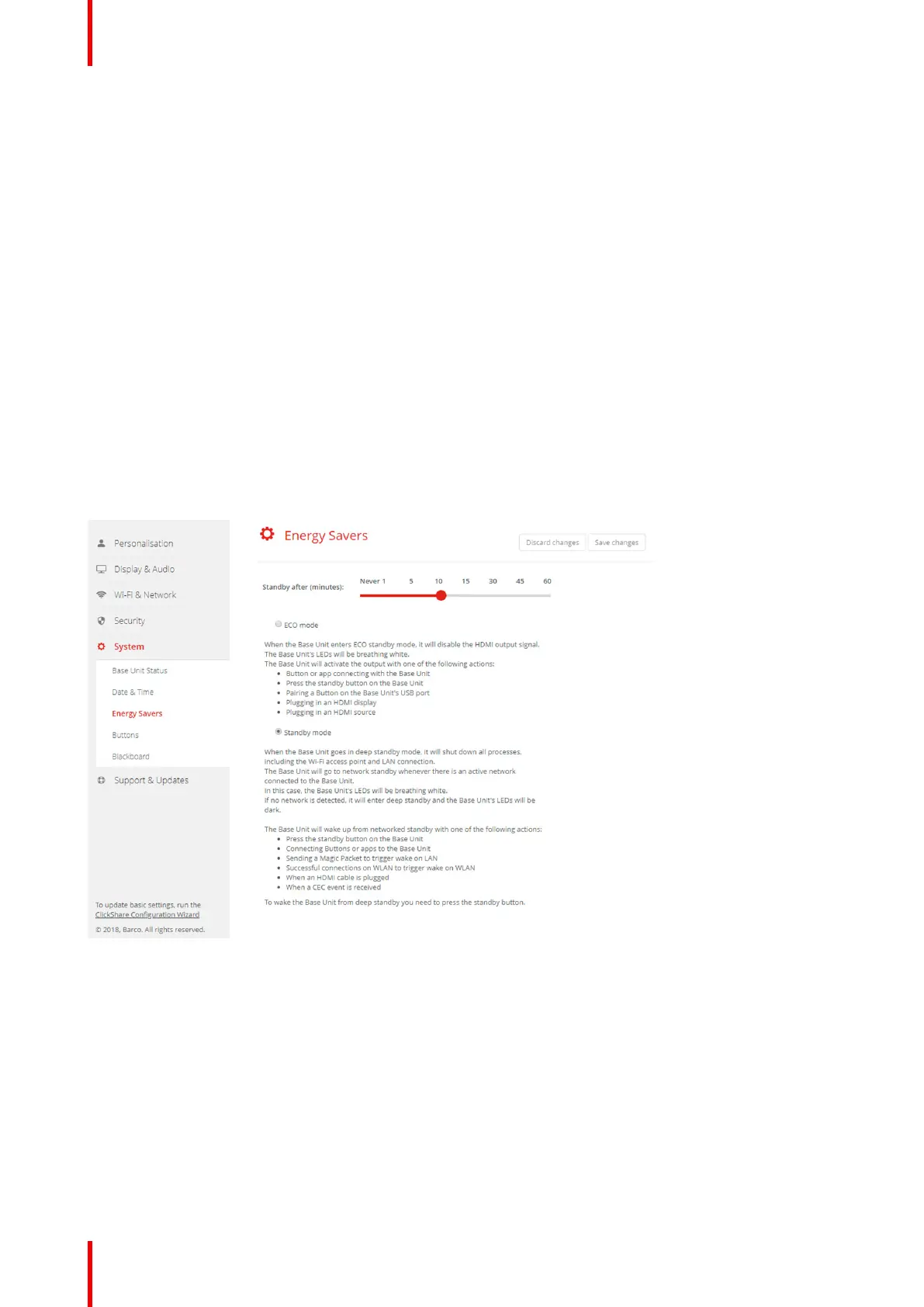

Image 6-49: Energy savers
How to change the display timeout
1. Log in to the Configurator.
2. Click System → Energy Savers.
3. To set a display time out, move the slider to the left or to the right until the desired standby timeout is reached.
CSE-200+ Configurator

Barco ClickShare CSE-200+ Specifications

General

Wireless Frequency Band	2.4 GHz and 5 GHz
Video Outputs	HDMI
Number of Sources Simultaneously on Screen	2
Native Protocols	AirPlay, Google Cast, Miracast
Wireless Sharing	Yes
Resolution	Up to 4K UHD (3840x2160)
Security	WPA2
Compatibility	Windows, macOS, iOS, Android
Operating System	Windows, macOS, iOS, Android
Frame Rate	30 fps
Output Resolution	Up to 4K UHD (3840x2160)
Audio	HDMI audio
USB	USB-A
ClickShare Buttons	2
Authentication Protocol	WPA2
Wireless Transmission Protocol	IEEE 802.11ac
Reach	30 meters
Maximum Number of Presenters	8
Connection Type	Wireless
Resolution Support	Up to 4K UHD (3840x2160)
