Barco ClickShare CSE-200+ Installation Manual

R5900087 /04 ClickShare CSE-200+70

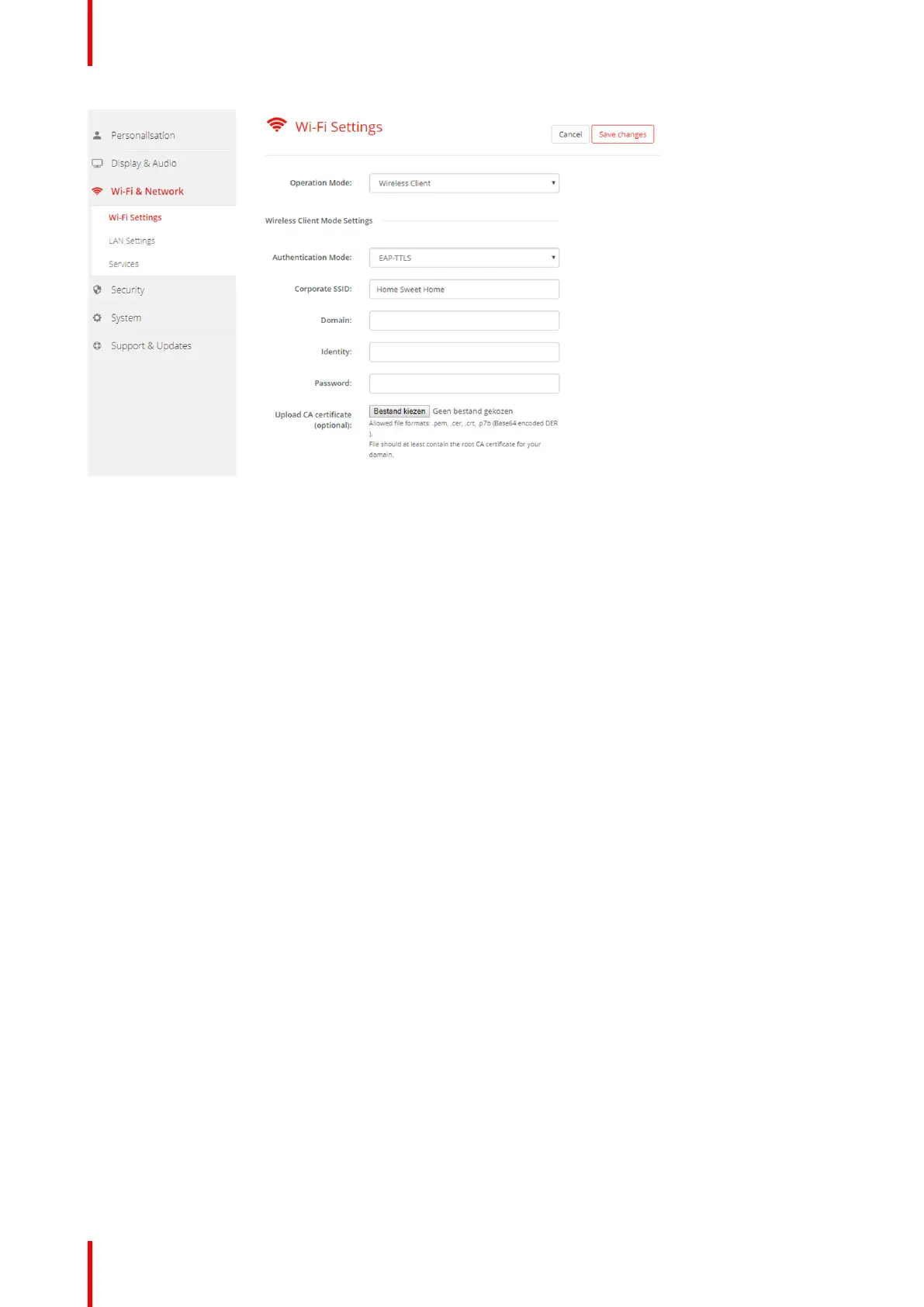

Image 6-24: WiFi Settings, Wireless Client, EAP-TTLS
4. Fill out a Corporate SSID.
The SSID of your corporate wireless infrastructure to which the ClickShare Buttons will connect.
5. Fill out the Domain and Identity.
6. Enter a Password.
7. Upload CA certificate. Click on Choose file and browse to the desired file.
The following formats are allowed:
• .pem
• .cer
• .crt
• .pb7 (Base64 encoded DER)
File should at least contain the root CA certificate for your domain.
8. Click Save Changes to save the settings.
6.15 WiFi settings, Wireless Client, PEAP
About PEAP
PEAP (Protected Extensible Authentication Protocol) is an EAP implementation co-developed by Cisco
Systems, Microsoft and RSA Security. It sets up a secure TLS tunnel using the servers CA certificate after
which actual user authentication takes place within the tunnel. This way of working enables it to use the
security of TLS while authenticating the user but without the need for a PKI.
The standard does not mandate which method is to be used to authenticate within the tunnel. But in this
application note, with regard to PEAP, we are referring to PEAPv0 with EAP-MSCHAPv2 as the inner
authentication method. This is one of the two certified PEAP implementations in the WPA and WPA2
standards – and by far the most common and widespread implementation of PEAP.
How to start up for PEAP
1. Log in to the Configurator.
2. Click Wi-Fi & Network → WiFi Settings.
3. When the Operational Mode is Wireless Client, select Authentication Mode. Click on the drop down list and
select PEAP.
CSE-200+ Configurator

Barco ClickShare CSE-200+ Specifications

General

Wireless Frequency Band	2.4 GHz and 5 GHz
Video Outputs	HDMI
Number of Sources Simultaneously on Screen	2
Native Protocols	AirPlay, Google Cast, Miracast
Wireless Sharing	Yes
Resolution	Up to 4K UHD (3840x2160)
Security	WPA2
Compatibility	Windows, macOS, iOS, Android
Operating System	Windows, macOS, iOS, Android
Frame Rate	30 fps
Output Resolution	Up to 4K UHD (3840x2160)
Audio	HDMI audio
USB	USB-A
ClickShare Buttons	2
Authentication Protocol	WPA2
Wireless Transmission Protocol	IEEE 802.11ac
Reach	30 meters
Maximum Number of Presenters	8
Connection Type	Wireless
Resolution Support	Up to 4K UHD (3840x2160)
