R5906852-01 F80 series66

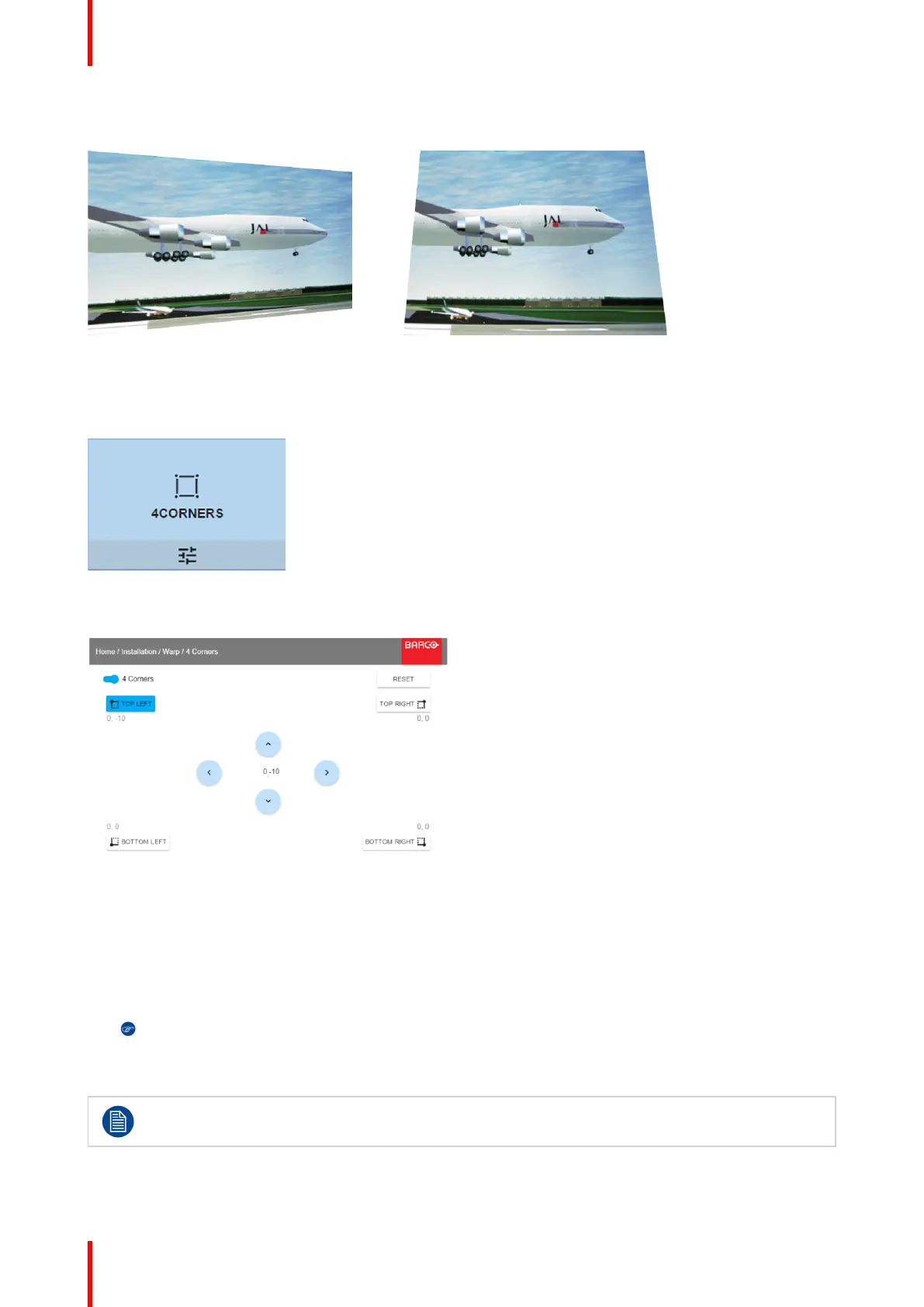

Image 8-12: 4 corner adjustment
How to adjust the image?
1. In the main menu, select Installation → Warp → 4 Corners.
Image 8-13: Warp menu, 4 Corners
The 4 Corners menu is displayed.
Image 8-14: 4 Corners Warping
2. To enable 4 Corners warping, make sure the 4 corners slider is set to On.
The slider is enabled when set to the right and when it is colored blue.
3. To set warping on one or more of the four corners, select one of the four corners.
4. Set the desired X and Y coordinates for this corner, using the arrow keys.
Tip: A red border corner will be projected along with the current image. The border is a visual aid,
showing the result of the warped corners.
5. Repeat from for each corner, until all corners are warped in the desired position.
To reset the 4 corner adjustments, select Reset and press the OK button.
GUI – Installation
