Barco G62 Series Installation Manual

13R5914654 /04 G62 series
1.4 Input/Output (I/O) Panel

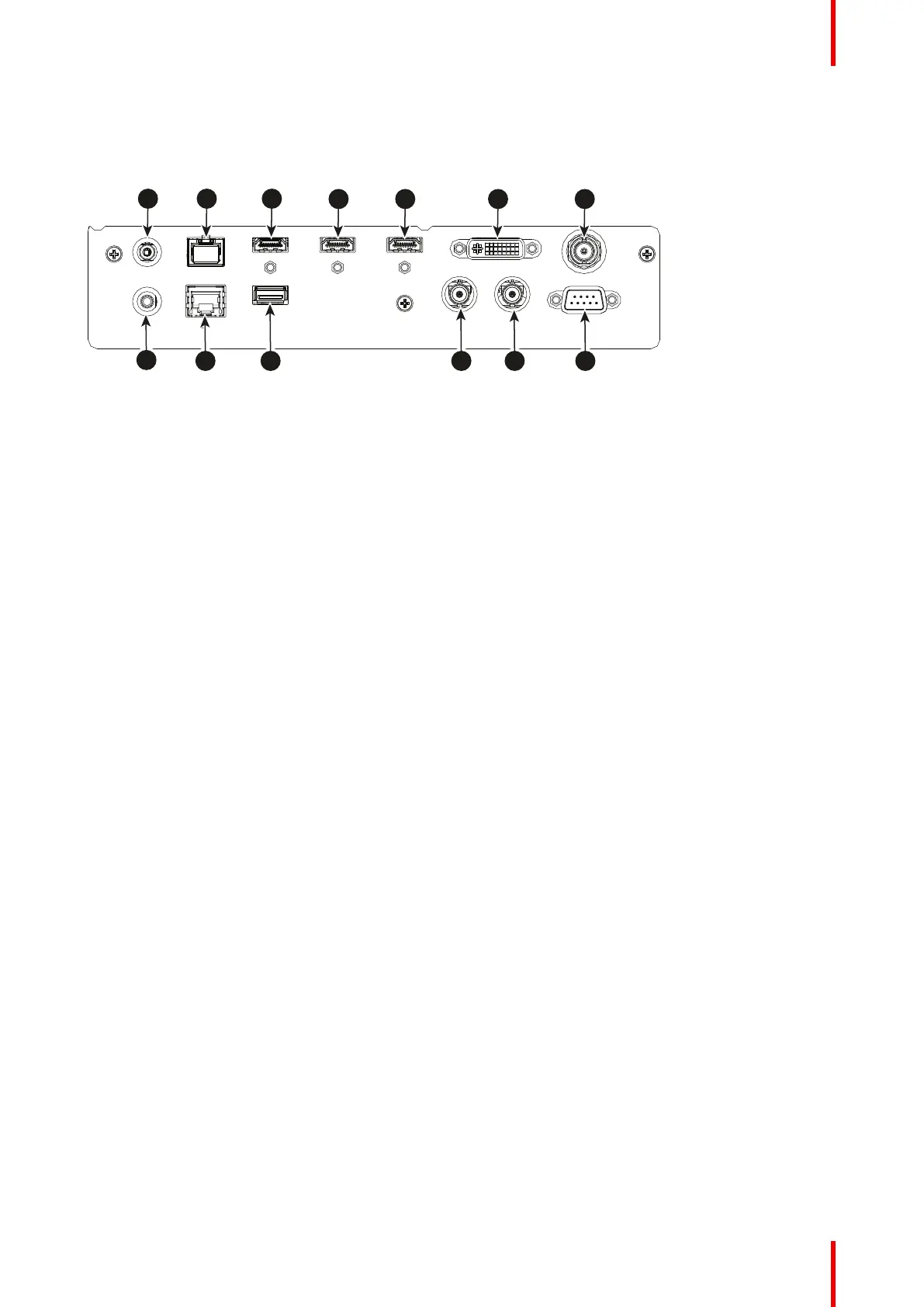

Input and output ports location
DC 12 V
HDB a seT
HDM I O UT
HDM I -2 IN
HDM I -1 IN
DVI - D
3G- SDI IN
ETH E RNET
USB
3D SY N C
IN
RS2 3 2
REM O TE
IN
OUT
3D SY N C
1
8
9 10 11 12 13
2 3
4 5 6 7
Image 1–10
1 DC 12V connector
2 HDBaseT connector
3 HDMI out connector
4 HDMI 2 in connector
5 HDMI 1 in connector
6 DVI-D connector
7 3G SDI in connector
8 Wired remote connector
9 Network connector RJ45
10 USB Type A connector
11 3D Sync out connector
12 3D Sync in connector
13 RS232 connector
