15R5914654 /04 G62 series

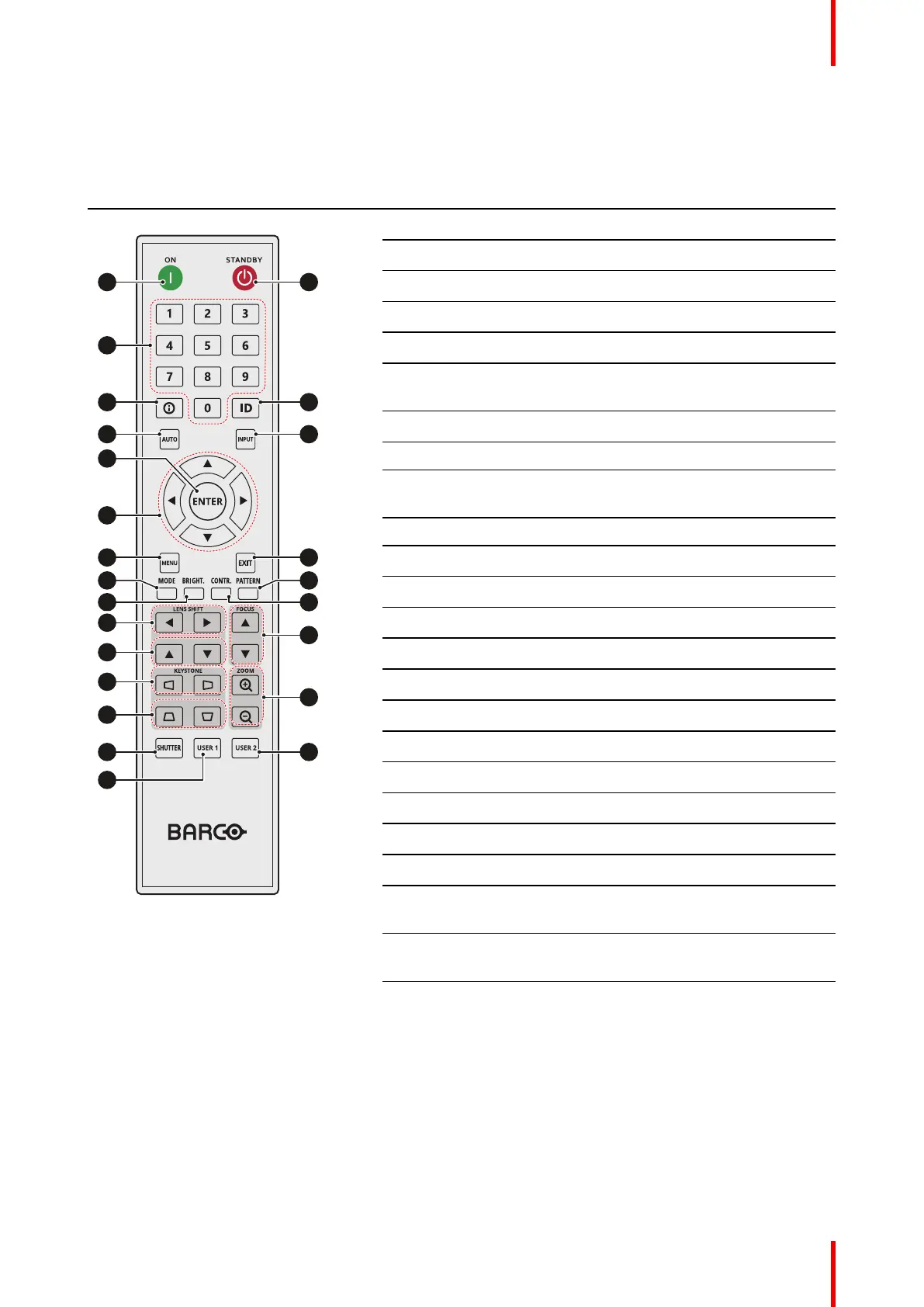

1.6 Remote Control Unit (RCU)
Button identification
Button location No. Button Function
1
4
3
6
10
12
14
2
8
9
16
17
19
20
22
23
5
7
11
13
15
18
21
24
1 ON Turn the projector on.
2 Standby Turn the projector off.
3 Number Input numbers (0-9)
4 Info Display information on the source image.
5 ID Set the projector address.
6 Auto Automatically synchronize the projector
to an input source.
7 Input Select an input source manually.
8 Enter Confirm an selection.
9 Arrow keys Use arrow keys to navigate through the
menu or select the appropriate settings.
10 Menu Show the main menu on the screen.
11 Exit Back to previous menu.
12 Mode Press to select the preset display mode.
13 Pattern Displays test patterns
14 Brightness Set the brightness of the image.
15 Contrast Set the contrast of the image.
16 Lens shift H Adjust the image position horizontally.
17 Lens shift V Adjust the image position vertically.
18 Focus Adjust the image focus.
19 Keystone H Adjust a horizontally keystone image.
20 Keystone V Adjust a vertically keystone image.
21 Zoom Adjust the image size.
22 Shutter Momentarily turn off/on the screen (AV
Mute).
23 User1 Press to assign custom functions. See
user guide for more info.
24 User2 Press to assign custom functions. See
user guide for more info.
