1.5 Control panel

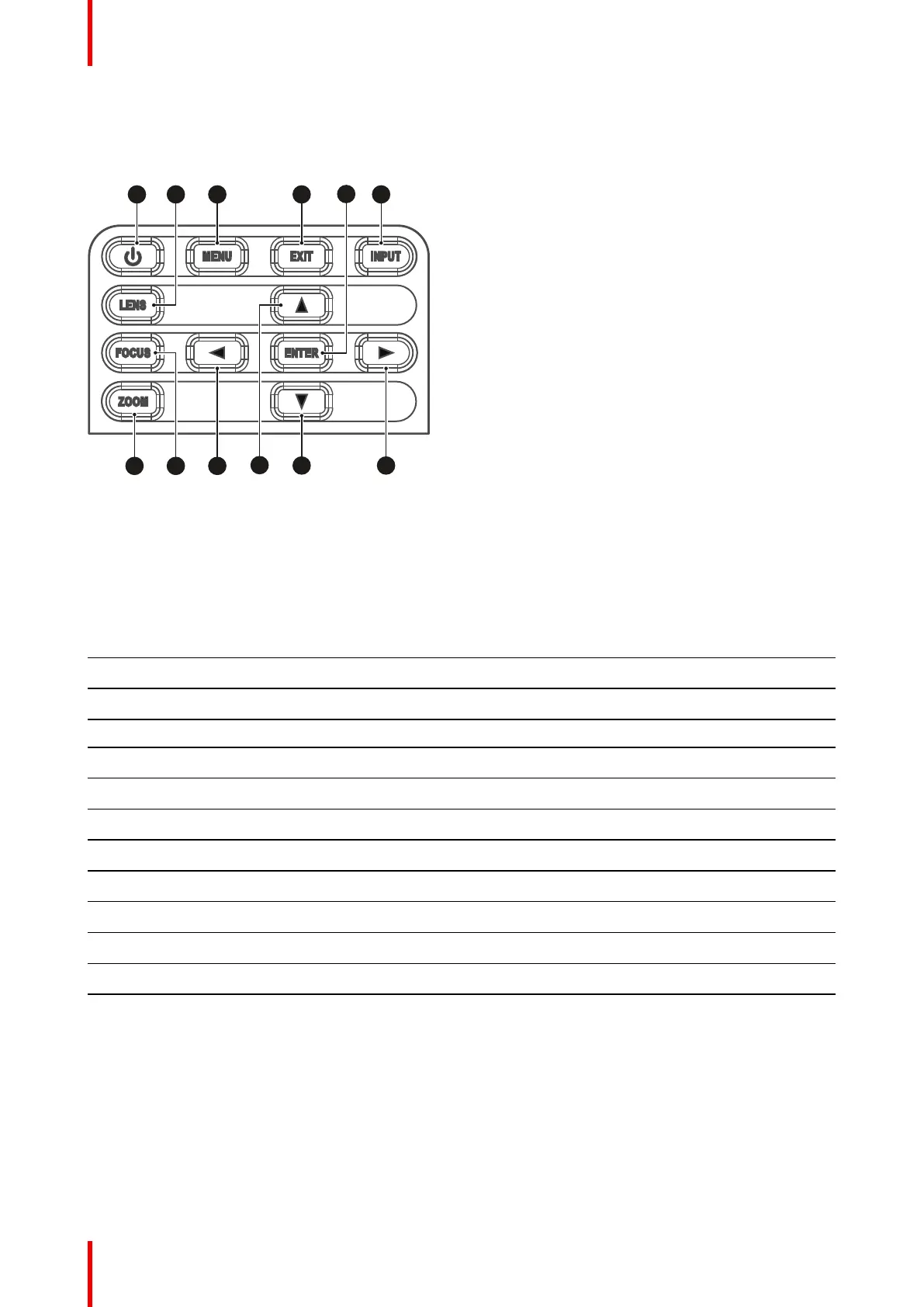

Button location
Z
INPUTEXIT
MENU
LENS
FOCUS
OOM
ENTER
1 2 3 6
7 8 9
11
10
5
12
4
Image 1–11
1 POWER
2 LENS
3 MENU
4 EXIT
5 ENTER
6 INPUT
7 ZOOM
8 FOCUS
9 LEFT
10 UP
11 DOWN
12 RIGHT
Button function
Button Function
POWER Turn the projector on or off.
LENS Adjust lens position.
MENU Show the main menu on screen.
EXIT Return to previous menu or exit menu if at top level.
ENTER Confirm the settings.
INPUT Select an input source.
ZOOM Adjust the image size.
FOCUS Adjust the image focus.
LEFT Navigate left through the menu.
UP Navigate up through the menu.
DOWN Navigate down through the menu.
RIGHT Navigate right through the menu.
