3.7 Remove the non-UST boresight module
How to remove
1. Remove the non-ultra short throw (non-UST) lens.

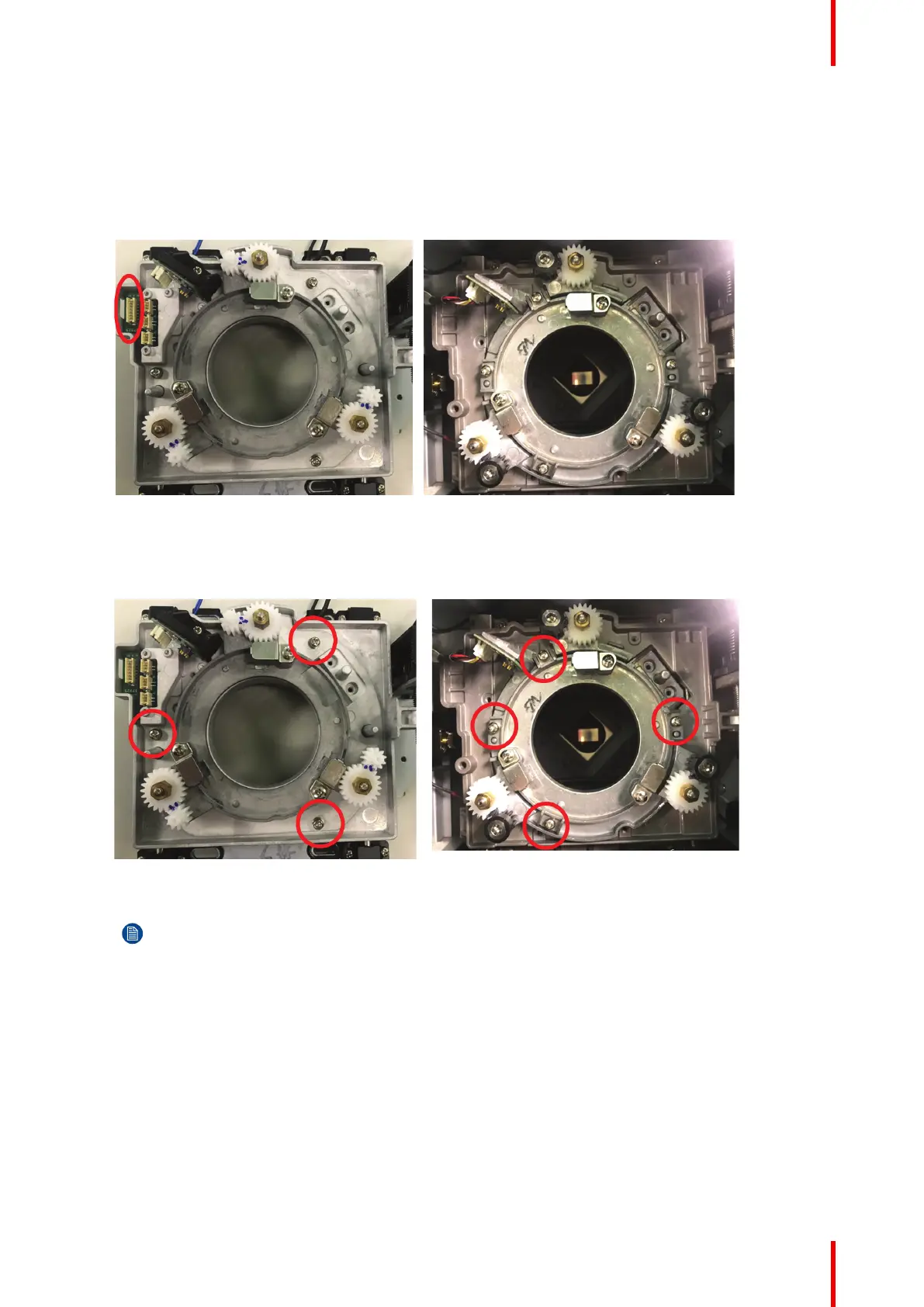

2. Disconnect the lens cable (see red reference) in LSM type1.
LSM type1 LSM type2
Image 3–9
3. Remove the screws (inside red circles) securing the non-UST lens boresight plate with a Philips #2
screwdriver.
LSM type1 LSM type2
Image 3–10
Note: To have better visibility for the lens holder, you can stand the projector with the lens opening
facing up.
4. Remove the non-UST lens boresight module from the projector.
UST lens R9801785(1)
