3.11 Initially adjusting the boresight screws
Preparations
Adjust the boresight screws by turning the boresight extenders clockwise or counter-clockwise. Once a lens is
installed, the adjustment ranges for the boresight screws are limited.
Required tools
• Boresight extenders
• L-shape tool/U-shape tool
How to adjust
1. Turn the small boresight gears counter-clockwise to the end position.
2. Adjust the LSM small gears according below tables and figures.

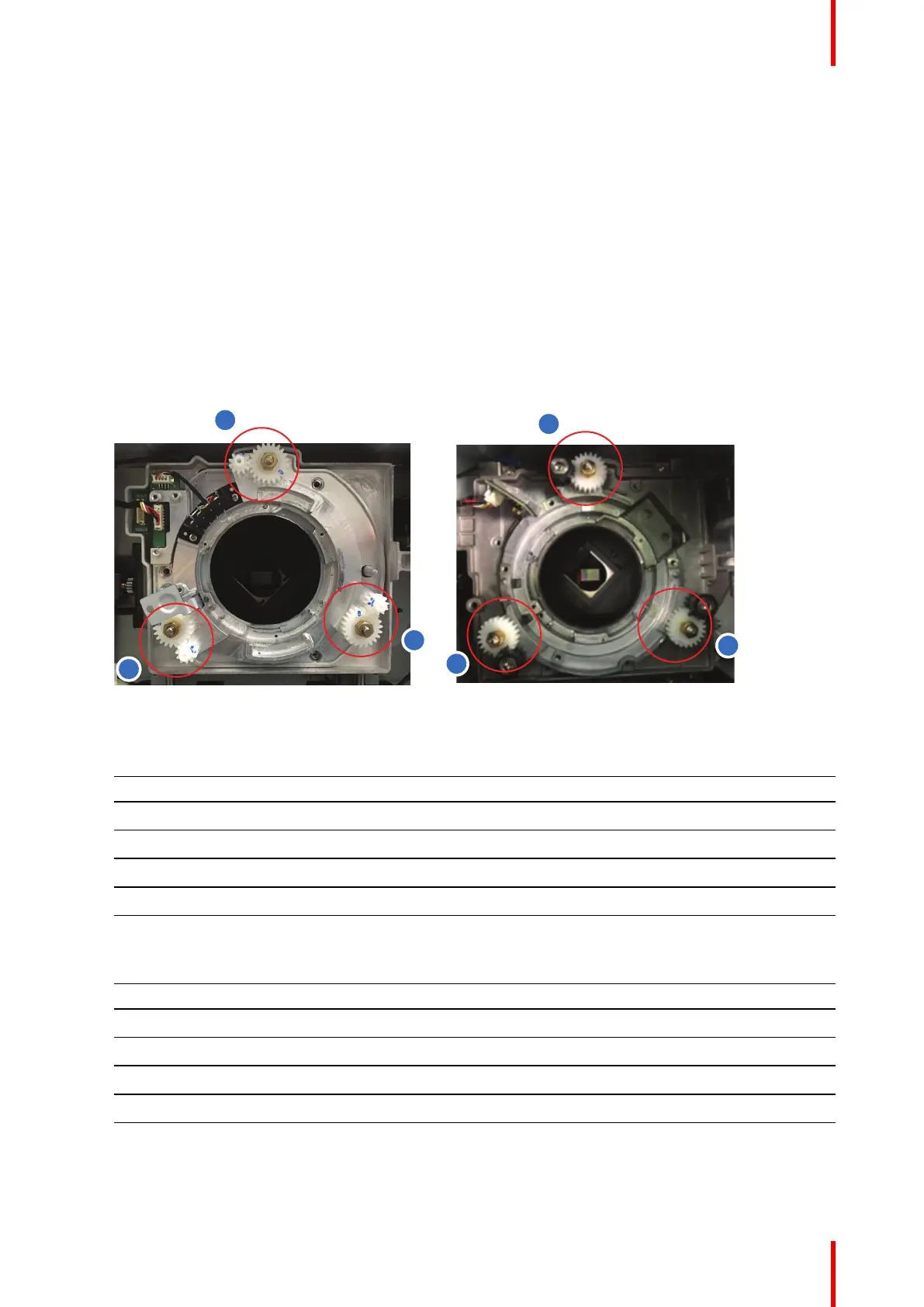

A
A
B
B
C
C
LSM type 1
LSM type 2
Image 3–26
Adjustment ranges (in turns) for the boresight screws for G60 + LSM type 1
Orientation A B C
Table top 3 + 1/4 7 + 3/4 8 + 3/4
Portrait (L) 6 + 2/4 3 + 3/4 8 + 2/4
Portrait (R) 6 + 3/4 8 + 3/4 4 + 2/4
Ceiling mount 8 + 2/4 5 + 1/4 5 + 3/4
Upright 8 7 + 3/4 8
Adjustment ranges (in turns) for the boresight screws for G60 + LSM type 2
Orientation A B C
Table top 7 7 7
Portrait (L) 8 + 1/2 8 + 1/2 5 + 1/4
Portrait (R) 8 + 1/2 5 + 1/2 8 + 1/2
Ceiling mount 11 5 + 1/2 6 + 1/2
Upright 9 + 1/2 7 7
UST lens R9801785(1)
