25R5914654 /04 G62 series
2.3 Installing the lens
WARNING: This procedure may only be performed by qualified technical service personnel.

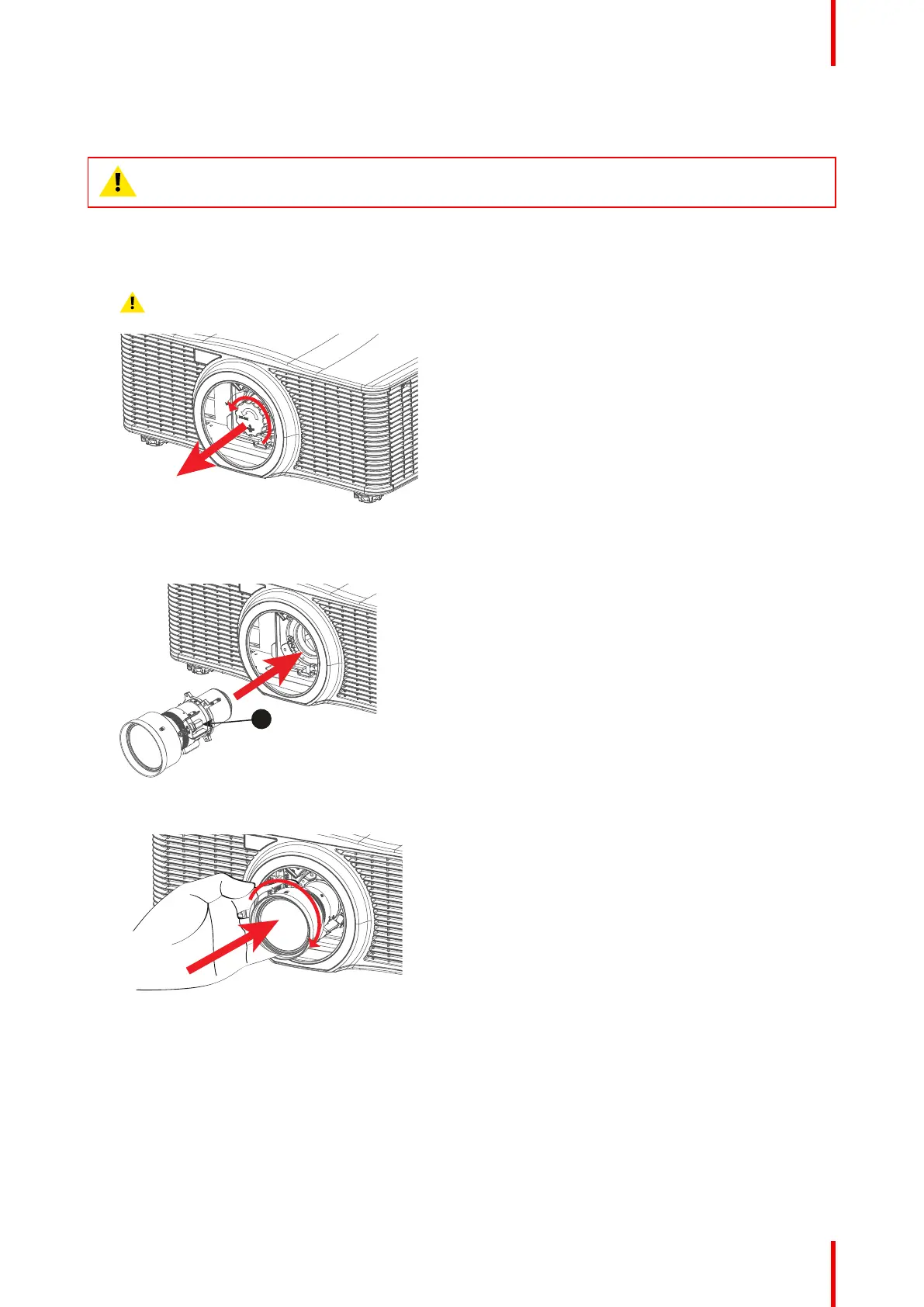

How to install the lens
1. Remove the lens cap counterclockwise.
Caution: Lens cap should be removed before installing the lens. If not it will damage the projector.
Image 2–12
2. Gently insert the lens in the lens holder. Ensure that the label “TOP” (reference 1) is upwards oriented
while inserting the lens.
Image 2–13
3. Rotate the lens clockwise to lock the lens.
Image 2–14
4. Put the lens ring on the lens. An audible click should be noticed.
Installation
