R5914654 /04 G62 series24

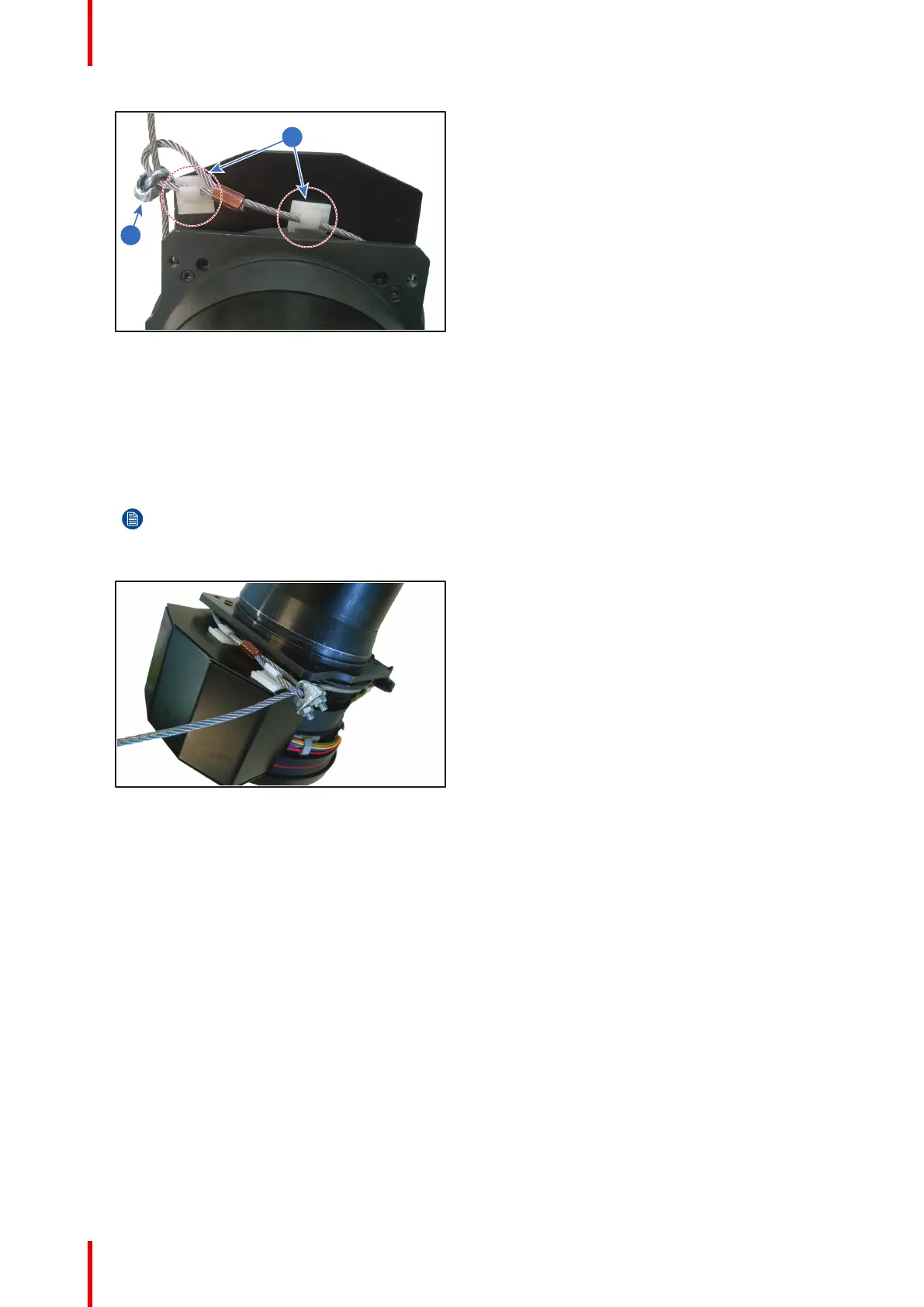

Image 2–10
3. Carefully slide the safety cable through the cable clips. Make sure the cable is placed between the motor
block and the cover plate.
4. Slide the cable through the loop end at the beginning of the cable.
5. Mount a U-bolt on the cable, with the open ends oriented outwards (reference 3, Image 2–10). Make sure
that both a part of the loop end and the outgoing part of the safety cable are placed in the enclosure.
6. Close the U-bolt and tighten it.
Note: Make sure the safety cable is tightened around the lens before tightening the U-bolt nuts.
The result should look similar to the following example.
Image 2–11
7. Lead the cable end with the shackle around rigging frame bar or truss bar
8. Snap the shackle to the straight part of the cable.
Secure the shackle by screwing the safety ring of the shackle over the open end.
Installation
