2.5 Connecting to a computer or laptop

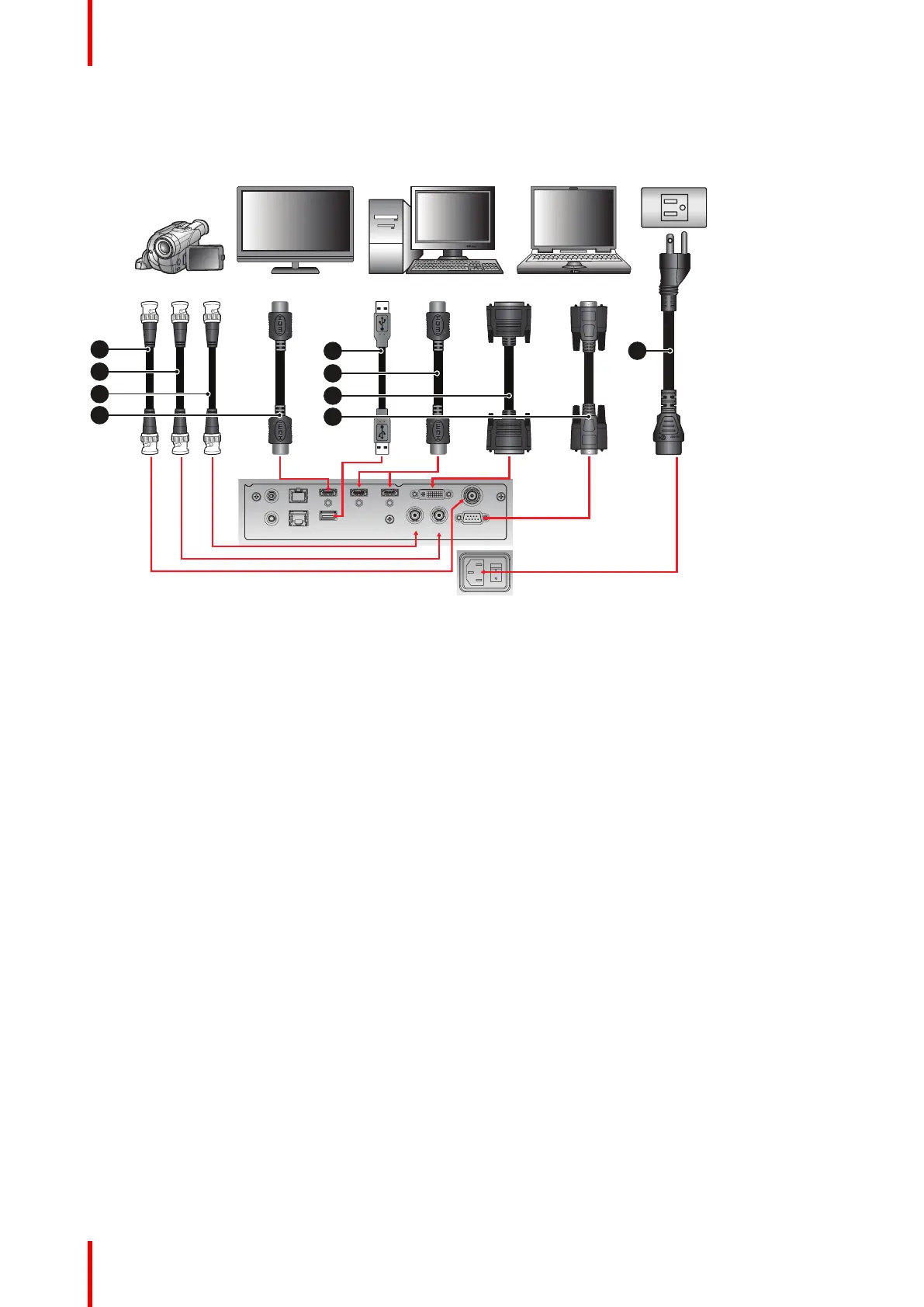

Wiring diagram
DC 12 V
HDB aseT
HDM I OUT
HDM I-2 IN
HDM I-1 IN
DVI -D
3G- SDI IN
ETH ERNET
USB
3D SY NC
IN
RS2 32
REM OTE
IN
OUT
3D SY NC
Desktop Laptop
MonitorCamcorder
1 2 3 4 5 6 7
9
8
1
2
3
4
5
9
6
7
8
Image 2–17
1 3G-SDI cable
2 3D Sync cable
3 3D Emitter cable
4 HDMI cable
5 USB cable
6 HDMI cable
7 DVI cable
8 RS232 cable
9 Power cord
Notes on wiring diagram:
• The diagram shows the cables/connectors that may be used to connect to various devices.
• Due to the difference in applications for each country, the accessories required in some regions may be
different from those shown.
• This diagram is for illustrative purposes only, and does NOT indicate that these accessories are supplied
with the projector.
