Barco G62 Series - Lens Support Installation

67R5914654 /04 G62 series
4.3 Lens support installation

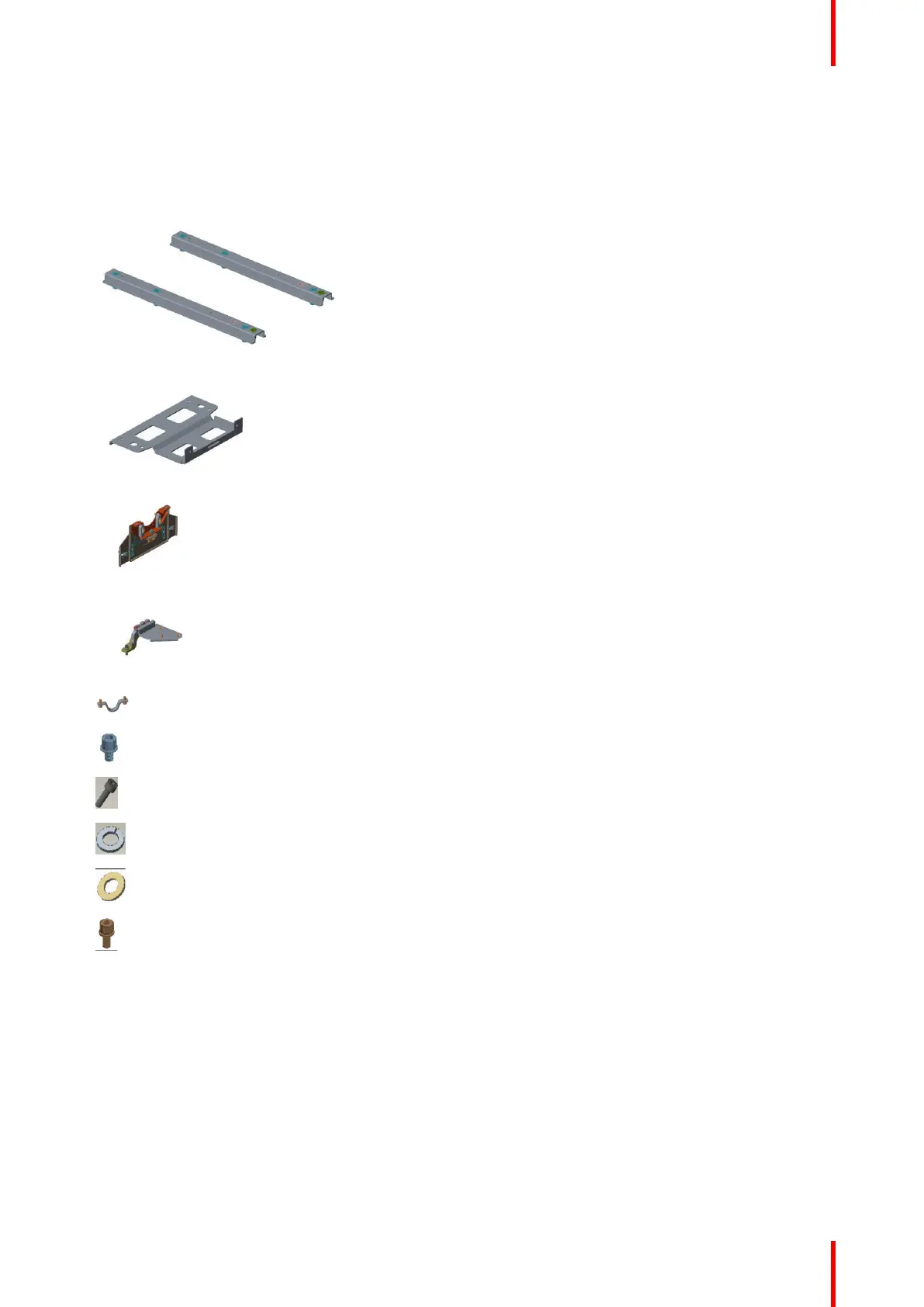

Components
Image Description Quantity
Beam 2
Base plate 1
Lens holder module 1
Lens clamp module 1
Safety bar 1
Socket head screw
M6x12
4
Socket head screw
M6x22
8
Spring washer M6 8
Washer M6 10
Socket head screw
M4x10
5
Required tools
• Allen wrench 5mm
• Allen wrench 4mm
• Allen wrench 3mm
Installation steps
1. Turn the projector up side down. To avoid damage, lay it on a blanket or a foam rubber.
Mount both beams on the bottom of the projector. Use 2 bolts M6x12 and 2 washers M6 for each beam.
Tighten with a torque between 3.5 and 9.8 Nm
UST lens R9801830 G lens (0.37 - 0.40 : 1) UST 90°
