R5914654 /04 G62 series68

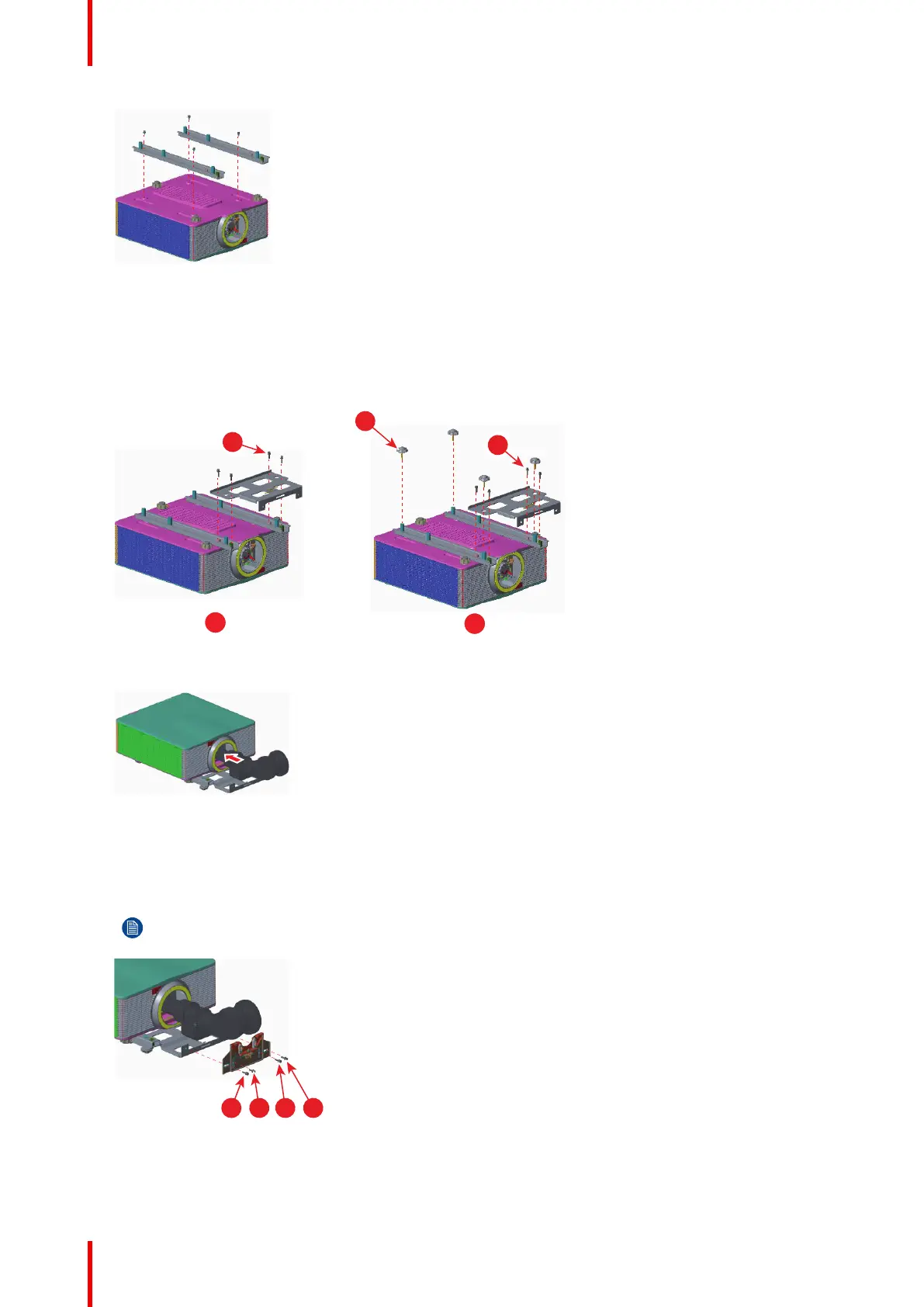

Image 4–9
2. Mount the base plate on the projector beams. Use 4 bolts M6x22 with 4 spring washers M6 and 4 washers
M6 (reference 1 in Image 4–10). Insert the spring washer in between the screw head and the washer.
Tighten with a torque between 3.5 and 9.8 Nm
When the projector will be used in table mounting configuration, also turn in the four feet (reference 2 in
drawing B).
Image 4–10
3. Install the UST lens. Rotate the UST lens clockwise to lock the lens.
Image 4–11
4. The lens holder module is preassembled with screws 2 & 3. Start loosen screws 2 & 3 before starting the
next step.
Mount the lens holder module on the base plate with screws with reference 1 and 4 in Image 4–12. Drive
them in partially. Use M6x22 screws and insert on each a spring washer M6 and washer M6.
Note: Do not tighten the 4 bolts yet.
Image 4–12
5. For left projection: mount the lens clamp module on the lens holder module by inserting 2 screws M6x22, 2
spring washers M6 and 2 washers M6. Tighten with a torque between 3.5 and 9.8 Nm
UST lens R9801830 G lens (0.37 - 0.40 : 1) UST 90°
