3. Connections

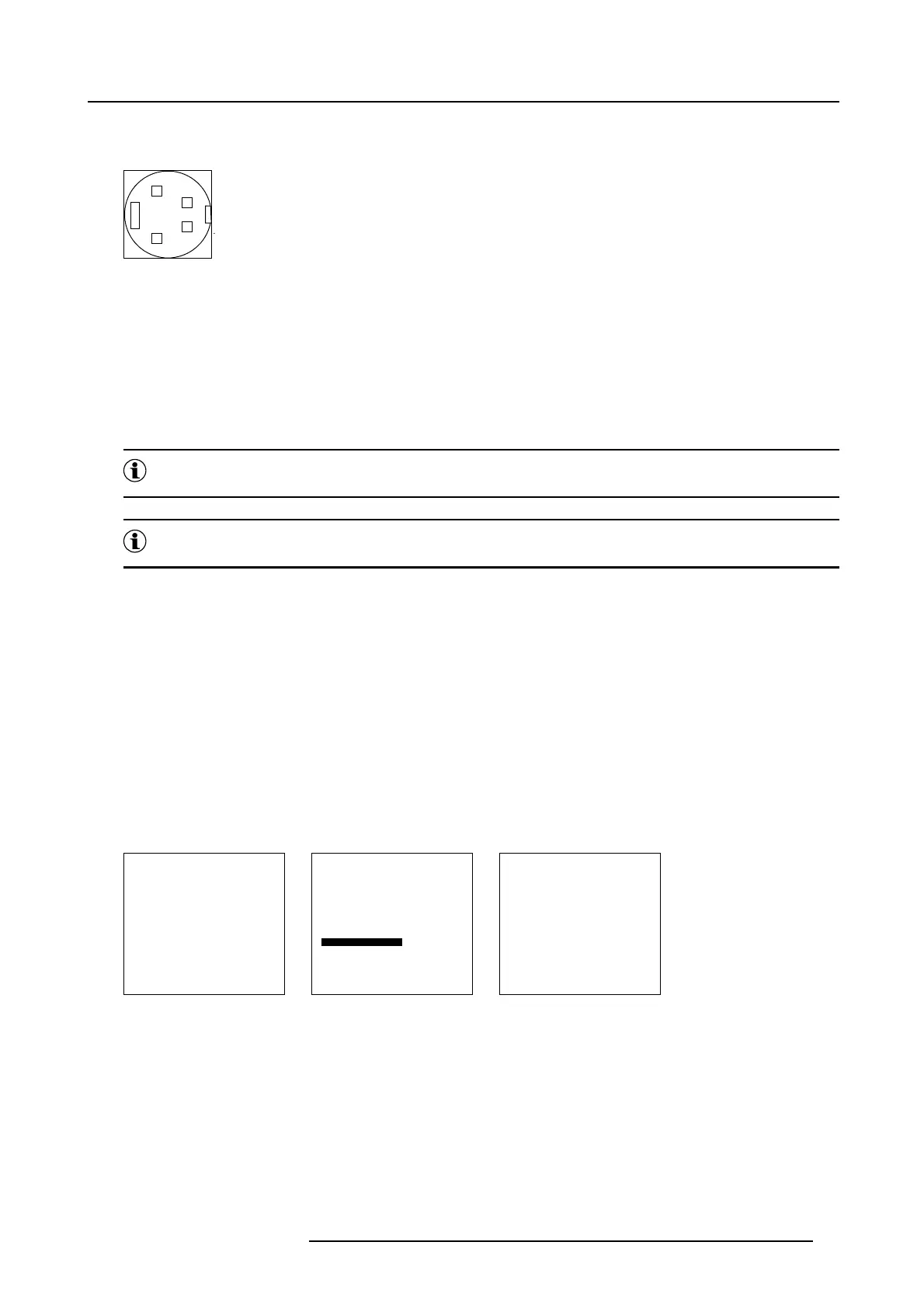

Pin configuration 4 pin connector
View on input module :
4
3
1
2
Image 3-6
For S-Video
For Video
pin 1 : earth (ground) luminance pin 1 : earth (ground) video Y
pin 2 : earth (ground) chrominance pin 2 : earth (ground) video C
pin 3 : luminance signal (Y) 1Vpp ±3dB
pin 3 : video Y signal
pin 4 : chrominance signal (C) 300mVpp pin 4 : video C signal
Chrominance
The color component of a video signal that includes information about tint and saturation.
Luminance
The component of a video signal that includes
information about its brightness.
How to configure the input 2
1. Press on the thumb wheel or press ENTER o
n the RCU to activate the menus.
The main menu will be displayed on the screen. (menu 3-9)
2. Turn the thumb wheel or use the up or down arrow keys to select Input Selection.
The input selection menu will be displayed. (menu 3-10)
3. Turn the thumb wheel or use the up or down arrow keys to select Configure input 2.
The configuration window will be displayed. (menu 3-11)
4. Turn the thumb wheel or use the up or down
arrow keys to select the corresponding input.
YUV
C
r
Y
s
C
b
source
SYUV C
r
YC
b
S source
Main Menu
Input selection
Image settings
Audio settings
Compact PC Control
Advanced settings
Installation
Service
Standby
Back
Menu 3-9
Input Selection
1. Video
2. RGB
3. S-Video
4. HD-SDI/DVI/Audio/RGB
5. SDI
6. RGB
7. DVI
8. Compact PC
Configure input 2
Back
Menu 3-10
Configuration Input 2
YUV
SYUV
SRGB
RGsB
BACK
Menu 3-11
How to select an input via the RCU
1. For video : press 1 on the RCU.
For Component/RGB input : press 2 on the RCU.
For S-Video : press 3 on the RCU.
R5976672 SOLARIS LC40 01122003
15
