3. Connections
Mounting the cable cover.
1. Slide the cover over the connections.
2. Push the cover hooks into the holes. (image 3-13)
3. Slide the cover to the right.
4. Fix this position by turning in the screw on the left side.

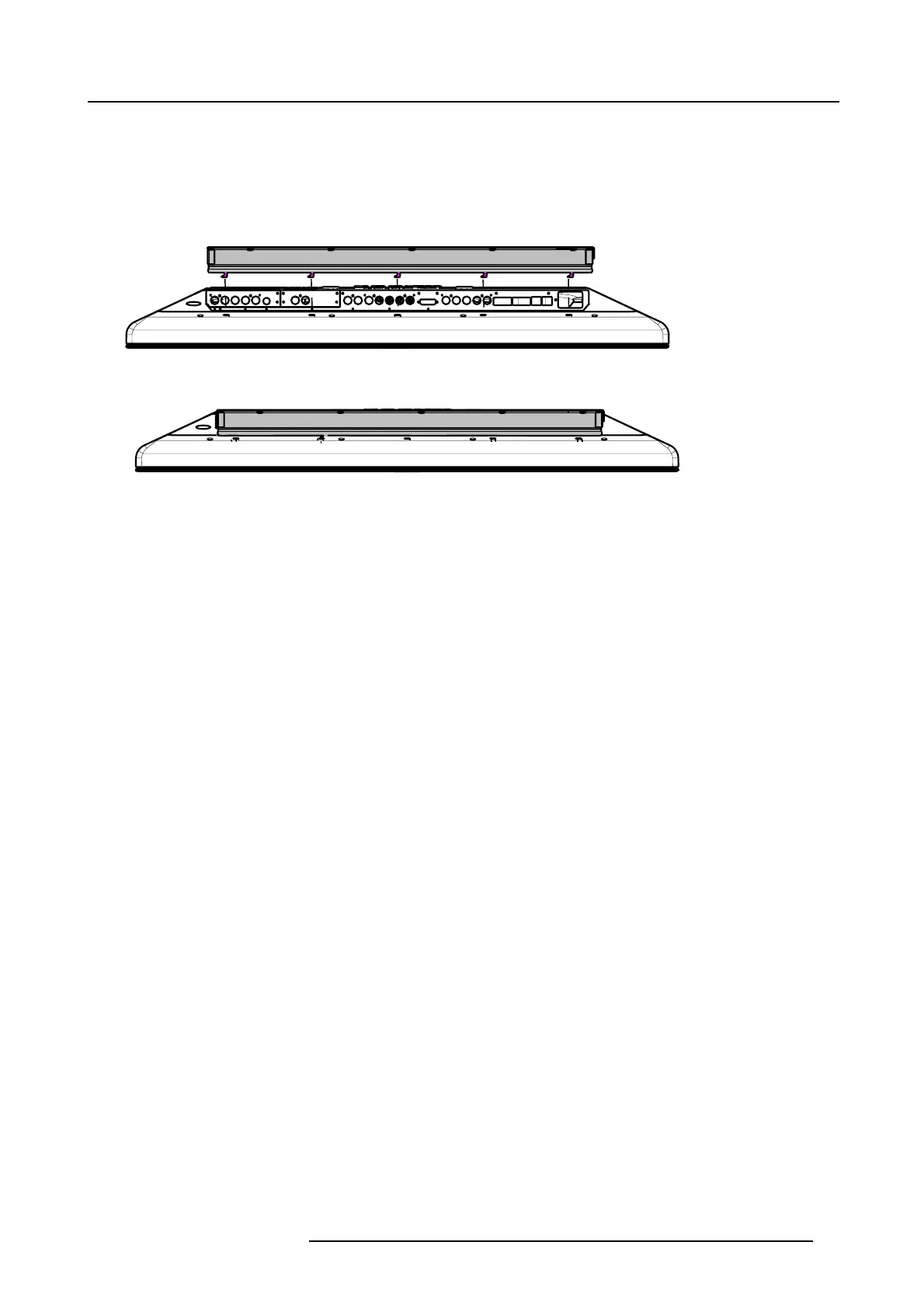

Image 3-13
Mounting cable cover
R5976672 SOLARIS LC40 01122003 21
