7. Image Settings
Different steps to create a viewport.

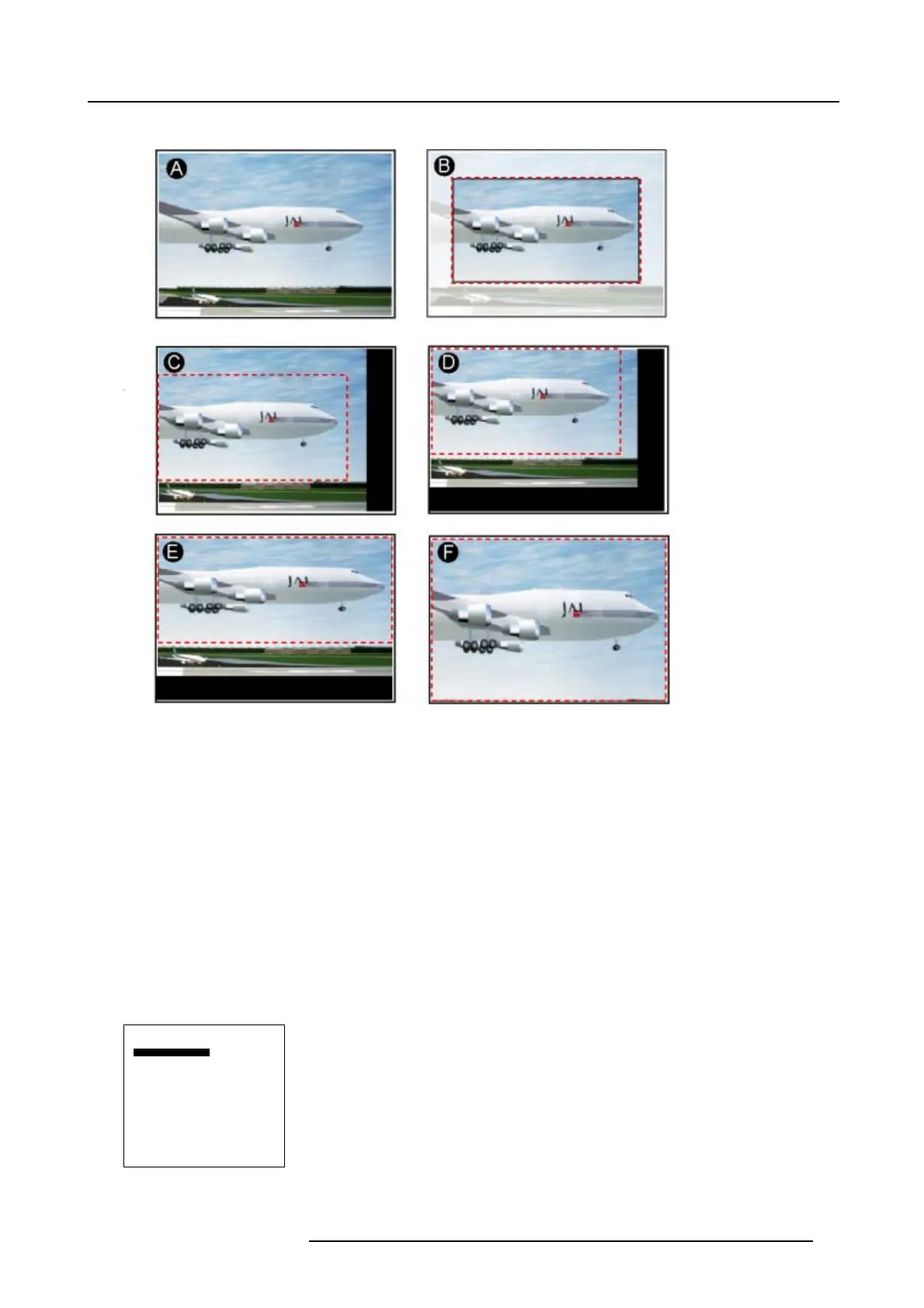

Image 7-2
Creation of a viewport, views on the screen while adjusting
A Input signal
B Desired image on the screen (viewport)
C Horizontal start position
D Vertical start position
E Set up of viewport width
F Set up of viewport height
Creating a horizontal start position
1. Select Horizontal start. (menu 7-10)
2. Press ENTER to activate.
A slider bar will be displayed. The maximum indicated values are in pixels and depends on input source.
3. Use the ↑ or ↓ to set up the horizontal start position.
When set up the start position the image will move horizontally on the screen, see image 7-2 part C.
Viewport
Horizontal sta
rt
Width
Vertical start
Height
Total pixels
Automatic
Back
Menu 7-10
