4. Components of a X8 Rental Tile
output sockets and upon the Module power and data ports. Maximum connect two (2) stand alone re-sync units in series. The cable
length used between two X8 Connection Box may not exceed 5 meter.
Power cables used with the X8 Connection Box
To meet the demands of each X8 application Barco offers different type of power cables to link power from power box to X8 Con-
nection Box, and from X8 Connection Box to X8 Connection Box. See secured Barco website for complete (up-to-date) list of the
different types. Note that the power output port of the last X8 Connection Box in the power chain has to be sealed with a dummy
power plug.

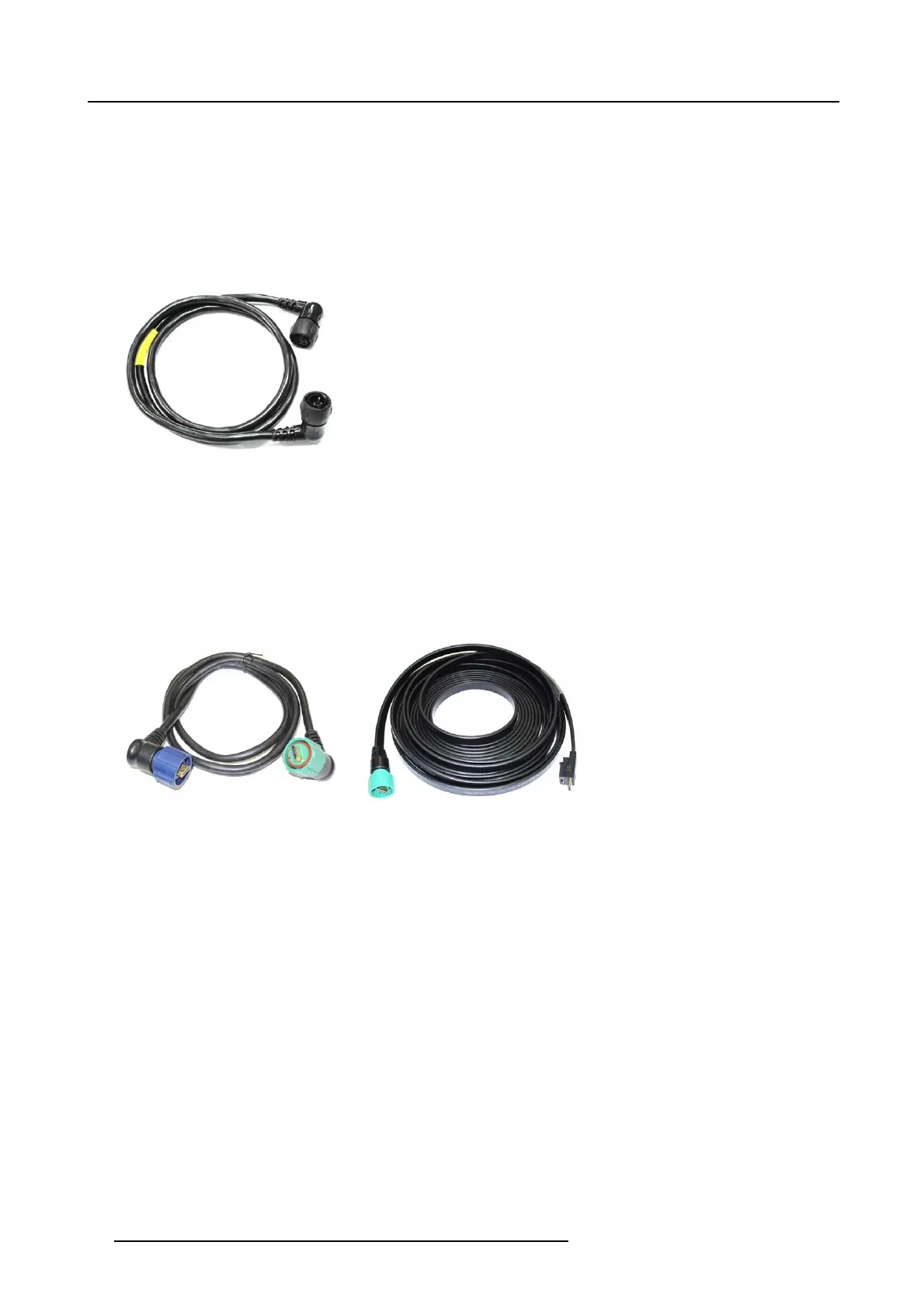

Image 4-10
X8 Power Link Cable 1.5m (waterproof UTS-UTS) (10 pieces) (R9801000).
Data cables used with the X8 Connection Box
To meet the demands of each X8 application Barco offers several lengths of data cables to link data from Digitizer to X8 Connection
Box, and from X8 Connection Box to X8 Connection Box. See secured Barco website for complete (up-to-date) list of X8 data cables.
Note that the data output port of the last X8 Connection Box in the data chain has to be sealed with a dummy data plug.
Image 4-11
X8 Data Link Cable 1.5m (waterproof HDMI-HDMI) (10
pieces) (R9862180).
Image 4-12
R9862290 : X8 Data Cable 10m (HDMI latch - HDMI
waterproof) (5 pieces) (R9862290)
22 R5905160 X8 RENTAL DISPLAY 25/02/2013
