BARRETT PRC-4090 TACTICAL HF SDR TRANSCEIVER - INSTALLATION

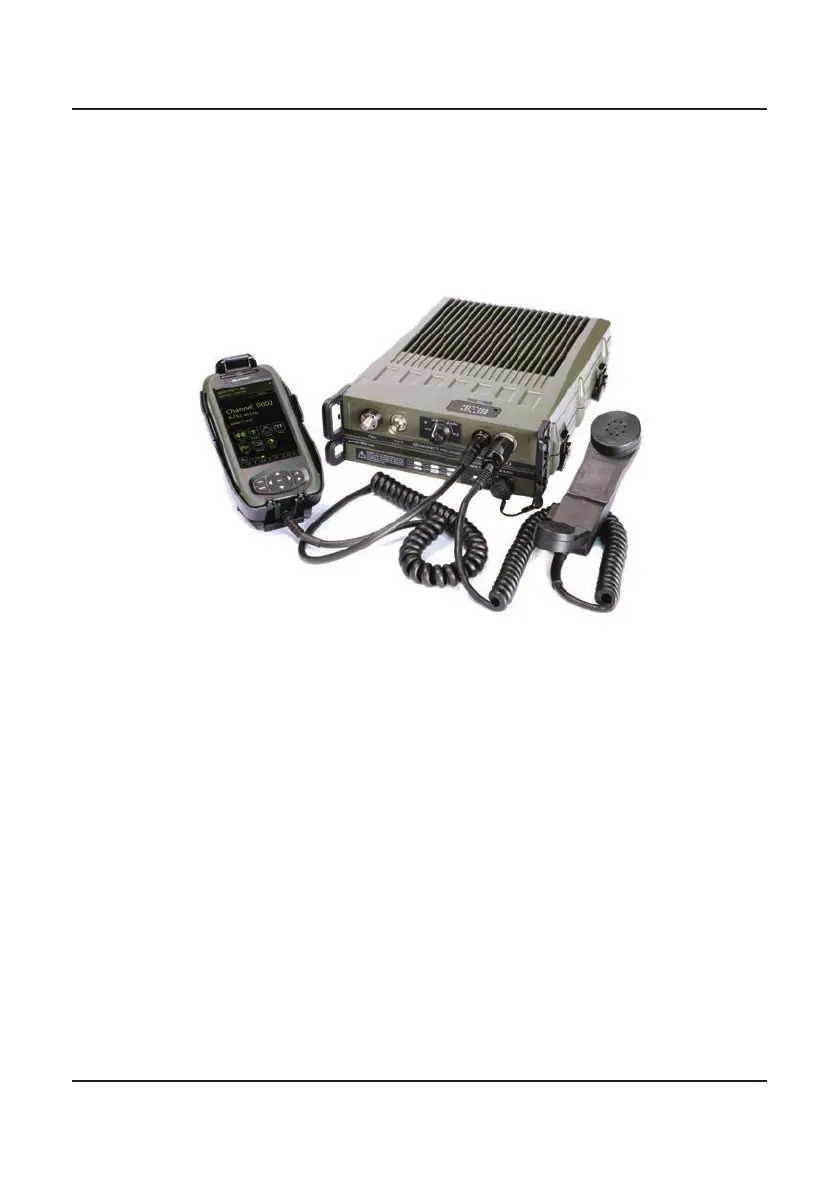

Manpack Installations

When combined with a battery pack, the PRC-4090 easily adapts to suit man-

pack congurations. The Control Handset can be easily mounted to molle or

webbing with a molle attachment.
