BARRETT PRC-4090 TACTICAL HF SDR TRANSCEIVER - INSTALLATION
Assembly

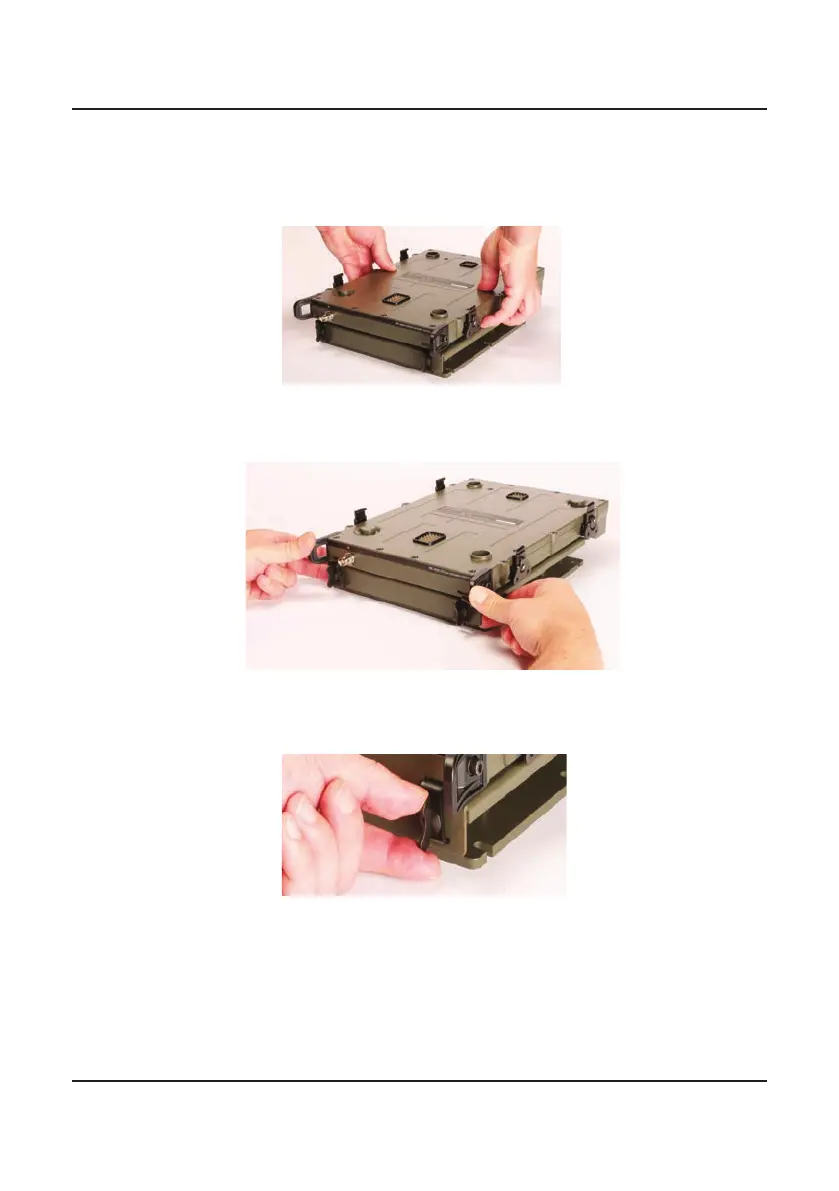

1. Place the SDS on top of the Anti-Vibration Plate, ensuring that the feet and
capstans are correctly aligned and drop into the keyway slots.
2. Push the SDS towards the rear of the anti-vibration plate, as shown below,
so that the capstans and SDS click into place.
3. To secure the SDS, rst ensure that the lock clamps are connected to the
slots on the front of the SDS, then turn the fasteners a quarter turn.
To Next Page
