BARRETT PRC-4090 TACTICAL HF SDR TRANSCEIVER - BASIC OPERATION
Antenna Type
Before making a call, an antenna
type needs to be selected from the
Antenna icon in the swipe menu.
If the transceiver is being used with
a PRC-4090 battery pack, the menu
will show only 50 Ohm and Whip/
Longwire.

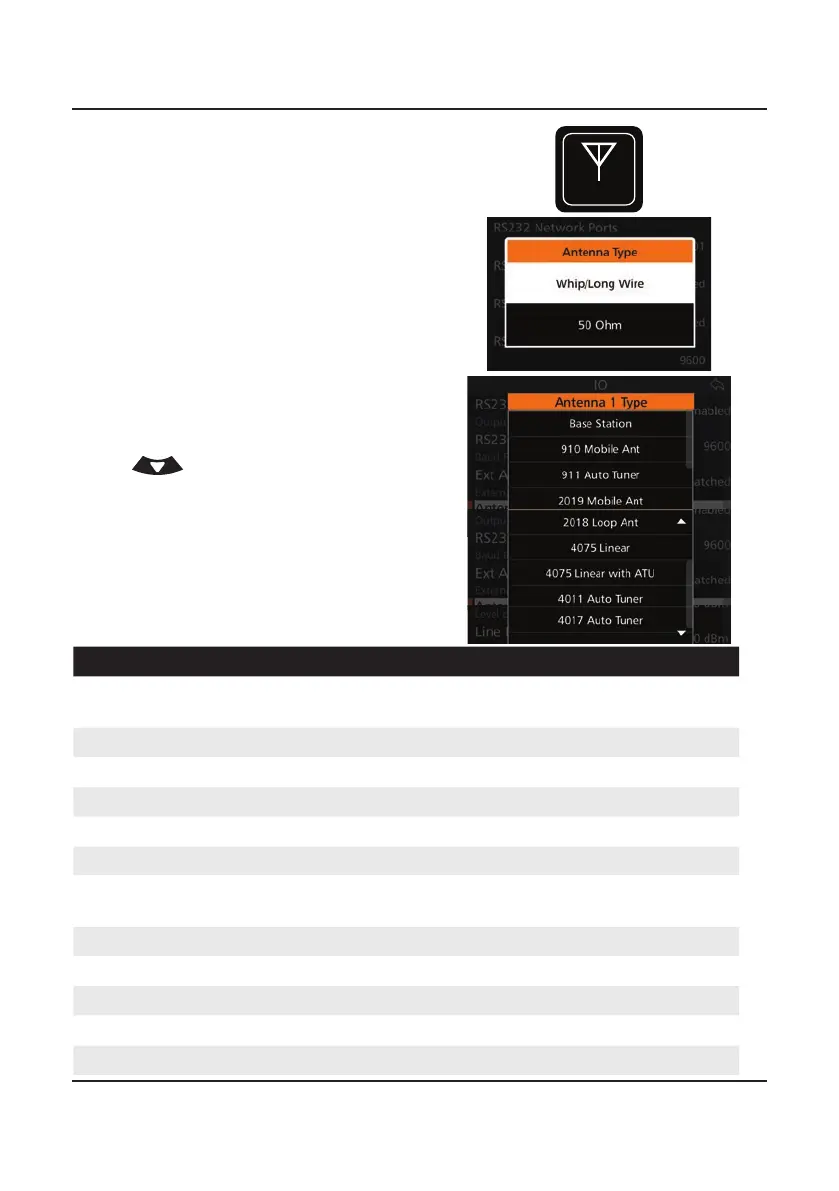

Tap Antenna 1 Type from the IO
screen to display the Antenna 1
Type screen.
To reveal more items, either swipe
down on the touch screen or press
.
Select an antenna type from the fol-
lowing:
Antenna Type Select when...
Base Station Base station antennas such as the Barrett 912 series are used.
No tuning signals are emitted on channel change.
910 Mobile Ant Using a Barrett 910 automatic tuning mobile antenna
911 Auto Tuner Using a Barrett 911 automatic tuner
2019 Mobile Ant Using a Barrett 2019 automatic tuning mobile HF antenna
2018 Loop Ant Using the 2018 Mobile magnetic loop HF antenna
4075 Linear Using the transceiver with a Barrett 4075 series linear amplier.
4075 Linear with
ATU
Using the transceiver with a Barrett 4075 series linear ampli-
er with ATU.
4011 Auto Tuner Using a Barrett 4011 automatic tuner
4017 Auto Tuner Using a Barrett 4017 automatic tuner
OEM Tuner 3040 tuner compatible (non-Barrett product)
OEM 2 Tuner F2265 tuner compatible (non-Barrett product)
OEM Preselector Using a non-Barrett Preselector
Antenna
